Vertical Slot Wedge Inserting Machine

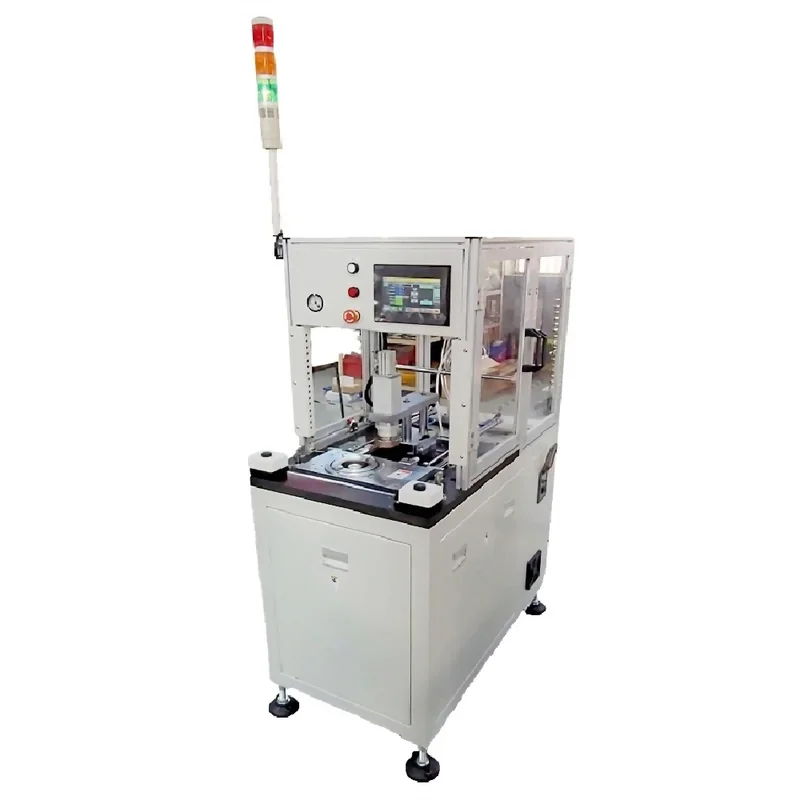

TWM-ISW001 is a vertical slot wedge inserting machine built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Category: Brushless Motor Equipment
Process stage: Brushless Motor Equipment
Motor types: Brushed, brushless and universal motors

Tags Slot wedge insertion Brushless (BLDC) motor Stator Standalone machine

Request a quotation Book a video call

Product description

What this machine does

This model can be connected with the robot arm and the conveyor belt to achieve fully automatic production function.
Full digital servo control
Adjustable paper feeding length and the number of rotating pole slots

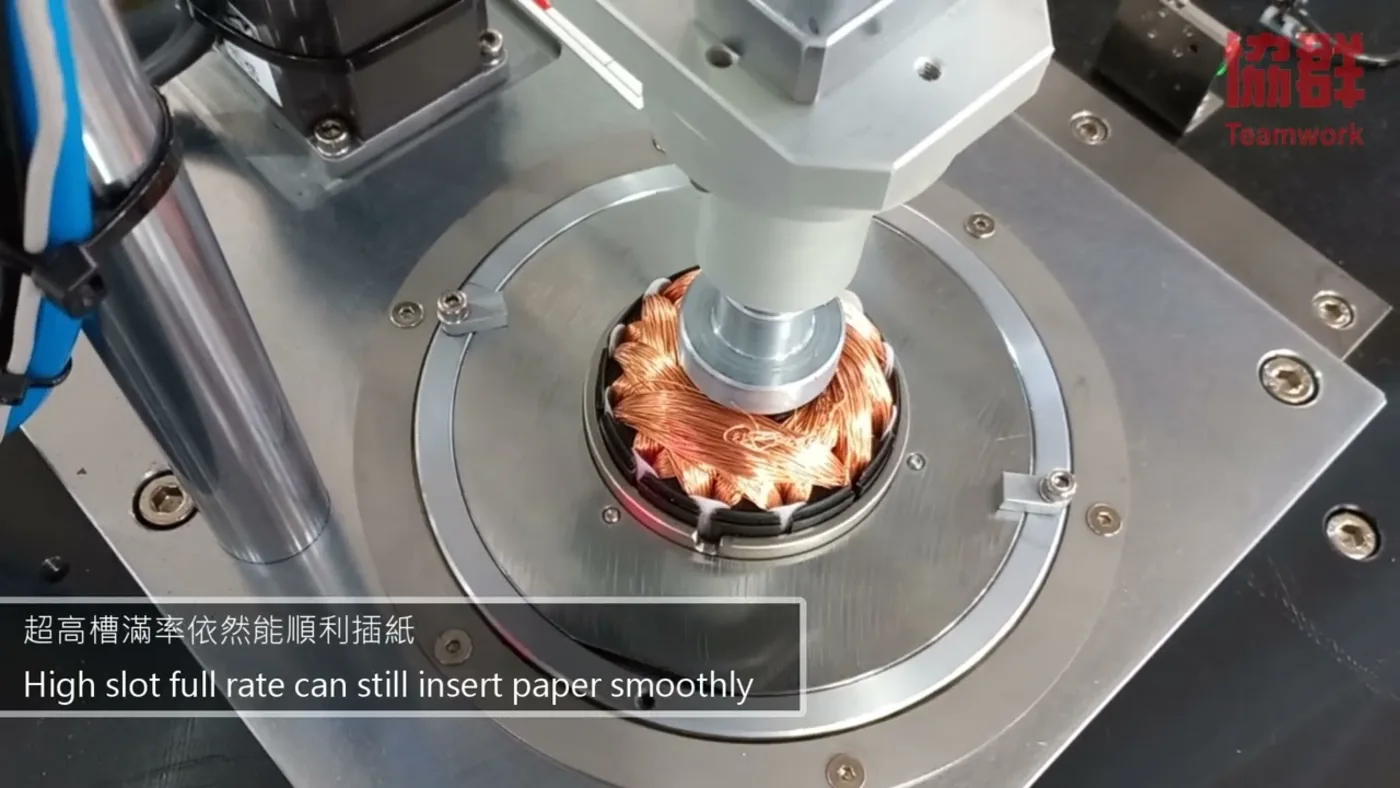

High slot full rate can still insert paper smoothly

Specifications

What this machine is rated for

Workpiece: brushless (BLDC) motor stators, vertical loading
Material: closing wedges, project-dependent geometry
Operations: servo-driven insertion, one slot at a time or ganged per tooling
Configuration: tooling swap for slot count, stack height and wedge geometry
Automation: standalone or in-line with upstream winding / slot-liner stations

Capabilities shown are typical. Values outside this range can be quoted on request.

Watch this machine run

Vertical Slot Wedge Inserting Machine

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

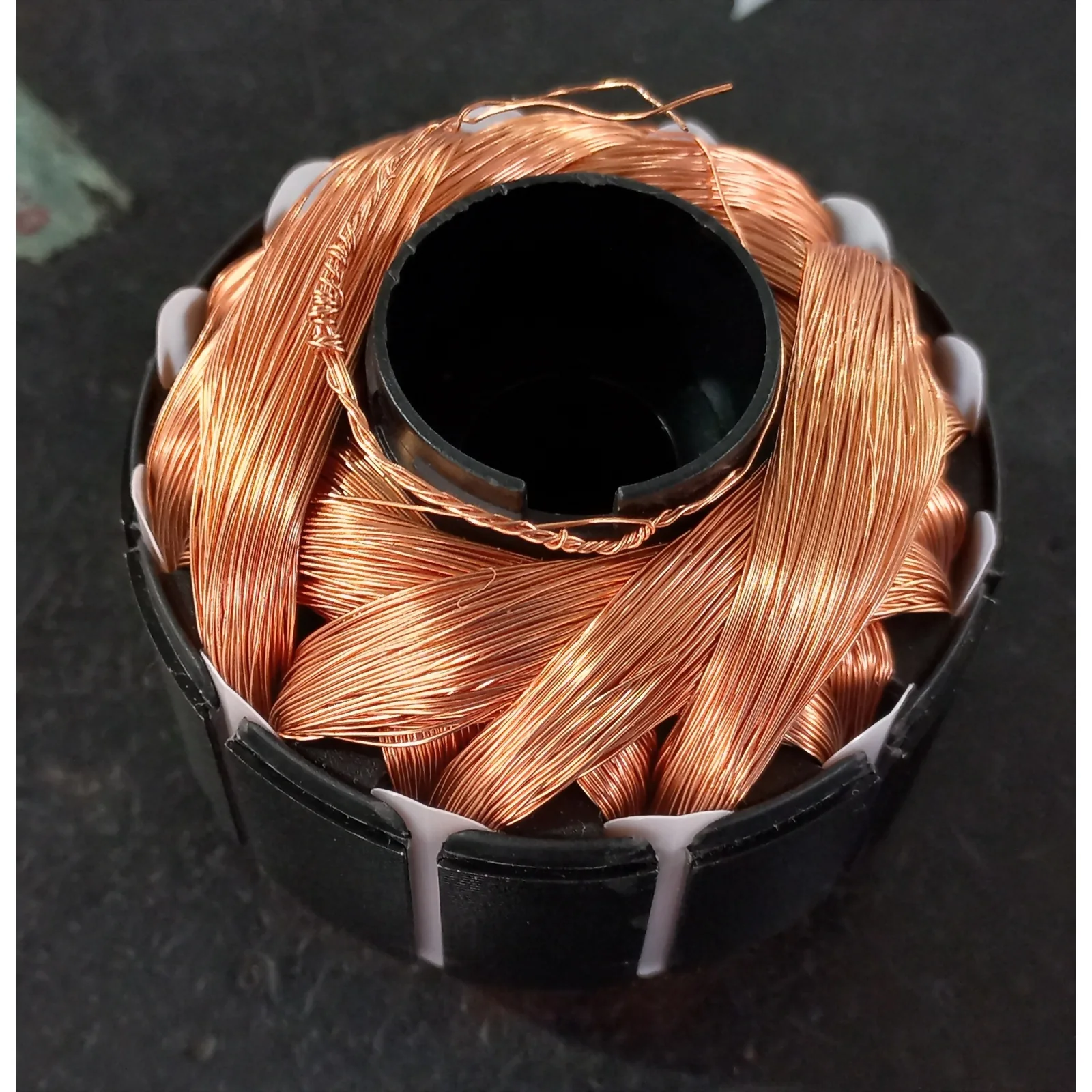

TWM-ISW001 Vertical slot wedge inserting machine - finished part produced on this machine
