Vertical Brushless Motor Slot Insulation Paper Inserting Machine

TWM-AP01 is a vertical brushless motor slot insulation paper inserting machine built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Category: Brushless Motor Equipment
Process stage: Brushless Motor Equipment
Motor types: Brushless (BLDC) motors

Tags Slot liner insertion Brushless (BLDC) motor Stator Standalone machine

Request a quotation Book a video call

Product description

What this machine does

Vertical stator slot liner inserting machine for BLDC stator preparation, engineered for compact footprint at production cells.
Automatic paper feed, in-line cutting, U-forming and slot insertion; single operator can supervise multiple units.
Configurable for slot count, stack height and paper thickness through modular tooling changes.
Suits small to medium BLDC stator diameters where floor space is tight or the machine sits adjacent to a winding station.
Cycle time is project-dependent on slot count and paper thickness.

Specifications

What this machine is rated for

Workpiece: brushless (BLDC) motor stators, vertical loading
Material: reel-fed insulation paper
Operations: feed, cut, form, insert (all slots per cycle)
Footprint: compact, suits cellular production
Integration: standalone or as part of a stator production line

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

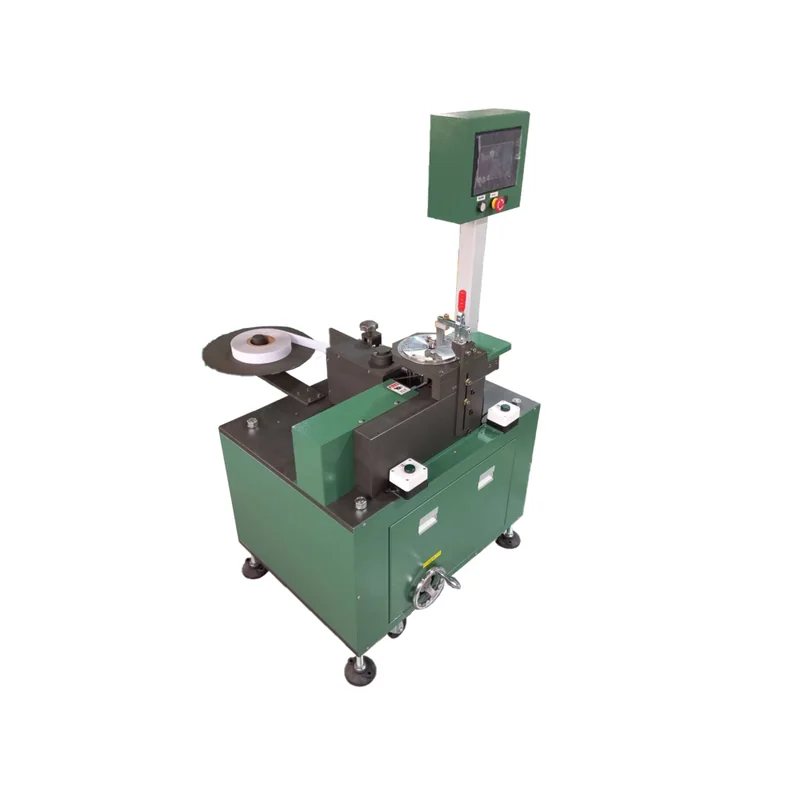

TWM-AP01 Vertical brushless motor slot insulation paper inserting machine - finished part produced on this machine
