TWA-RF30S

BLDC Stator Fusing Machine

TWA-RF30S: BLDC Stator Fusing Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as stator hot staking machine or terminal fusing machine. Standalone or line-integrated.

Process stage
Brushless Motor Equipment
Motor types
Brushless (BLDC) motors
Tags Fusing / weldingBrushless (BLDC) motorStatorStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Direct-press fusing (hot-staking) machine for BLDC motor stators: bonds the enameled magnet wire to the terminal tangs without solder.
  • Fusing parameters are set per stator design and validated on customer samples.
  • Runs as a standalone machine or as the termination station in a stator line.

Specifications

What this machine is rated for

Also known as Stator hot staking machine · Terminal fusing machine · Tang fusing machine

  • Process: direct-press fusing (hot staking)
  • Workpiece: BLDC motor stators
  • Integration: standalone or in-line

Capabilities shown are typical. Values outside this range can be quoted on request.

TWA-RF30S BLDC Stator Fusing Machine

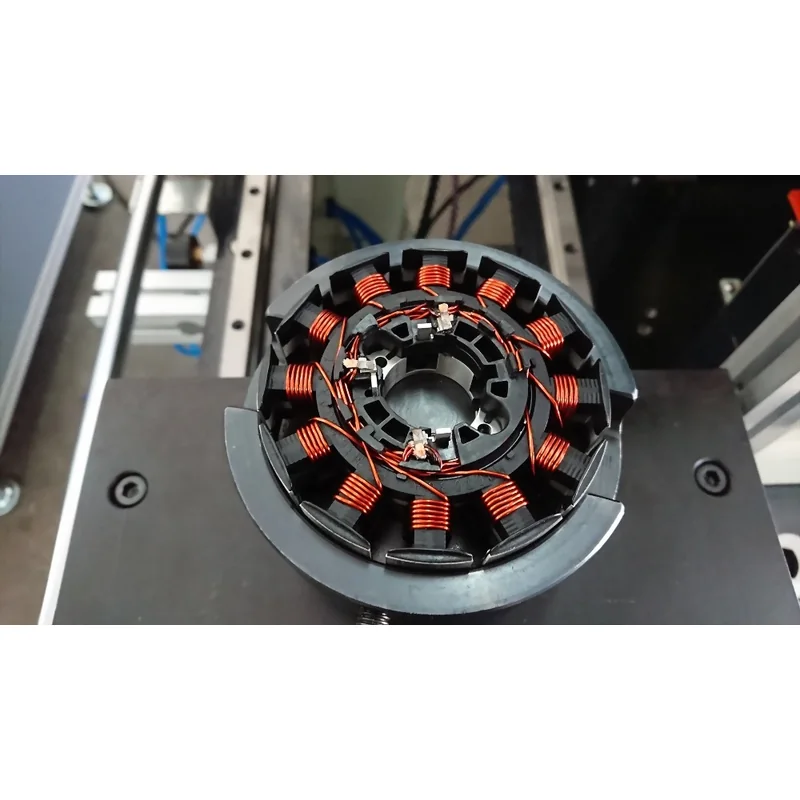

TWA-RF30S BLDC Stator Fusing Machine in operation

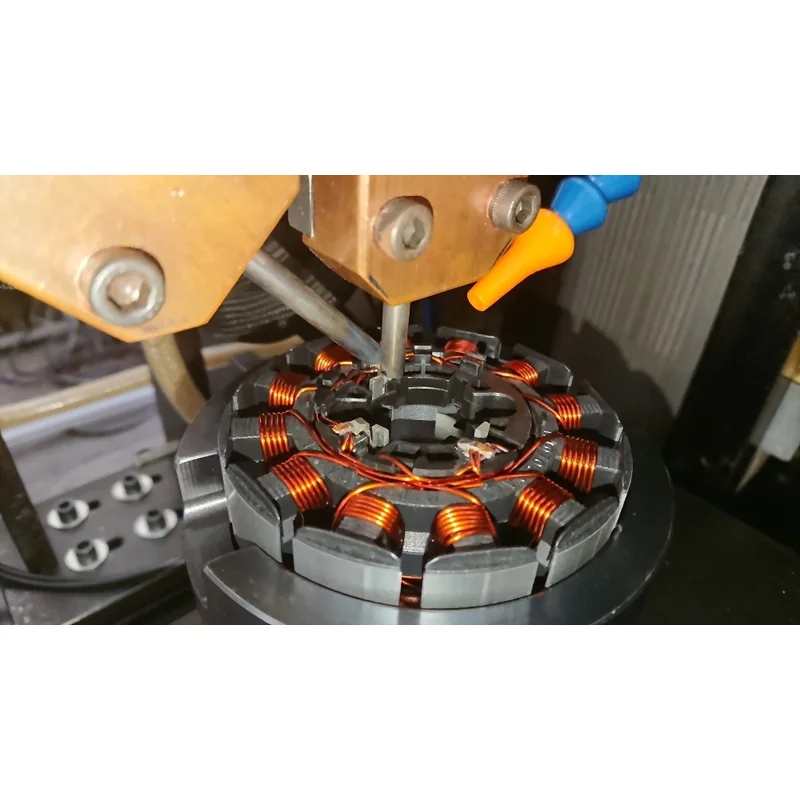

TWA-RF30S BLDC Stator Fusing Machine in operation

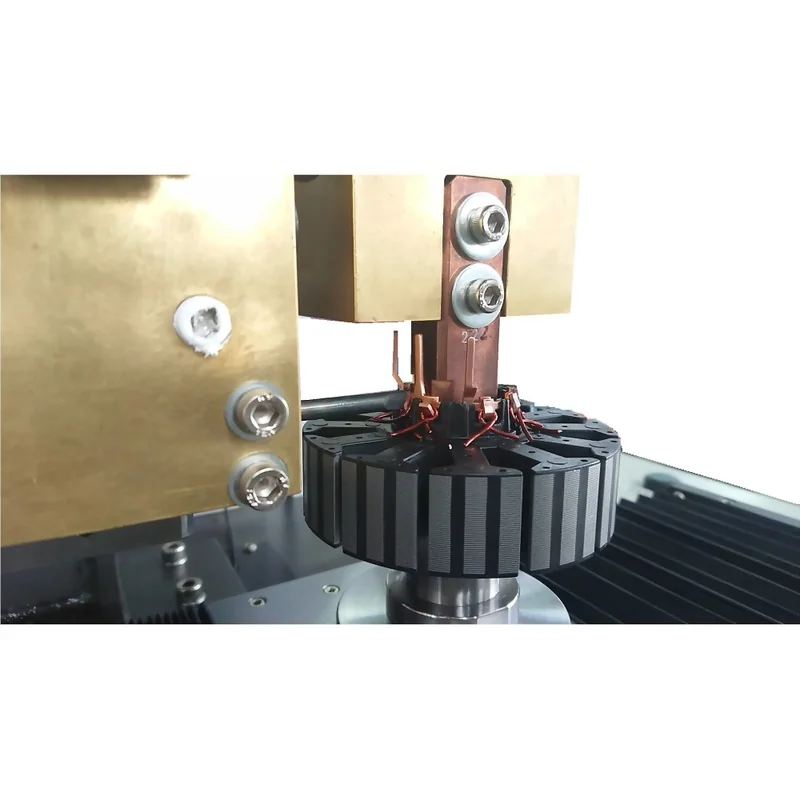

TWA-RF30S BLDC Stator Fusing Machine in operation

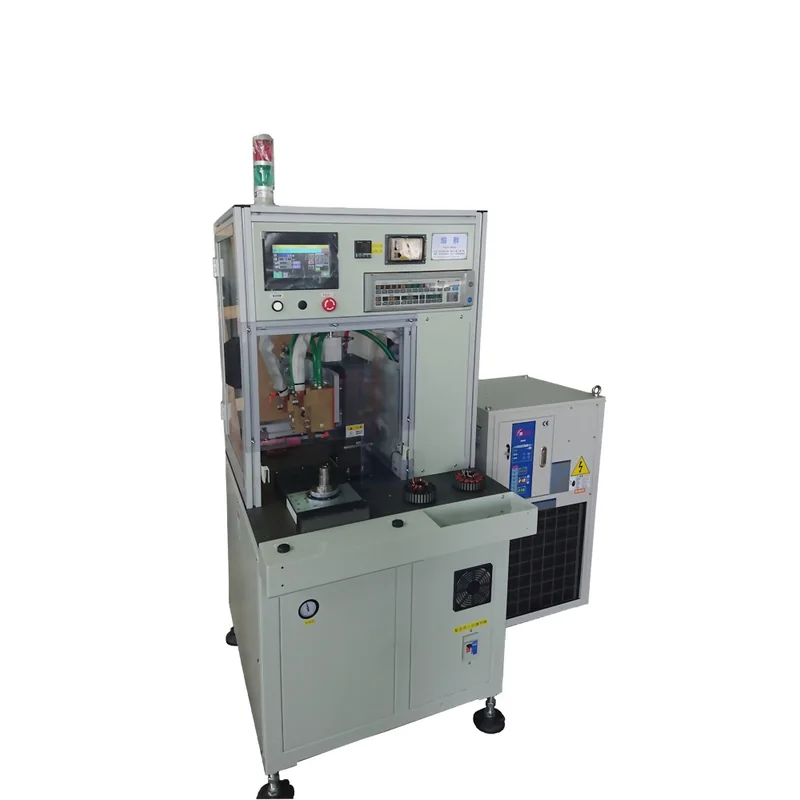

TWA-RF30S BLDC Stator Fusing Machine in operation
