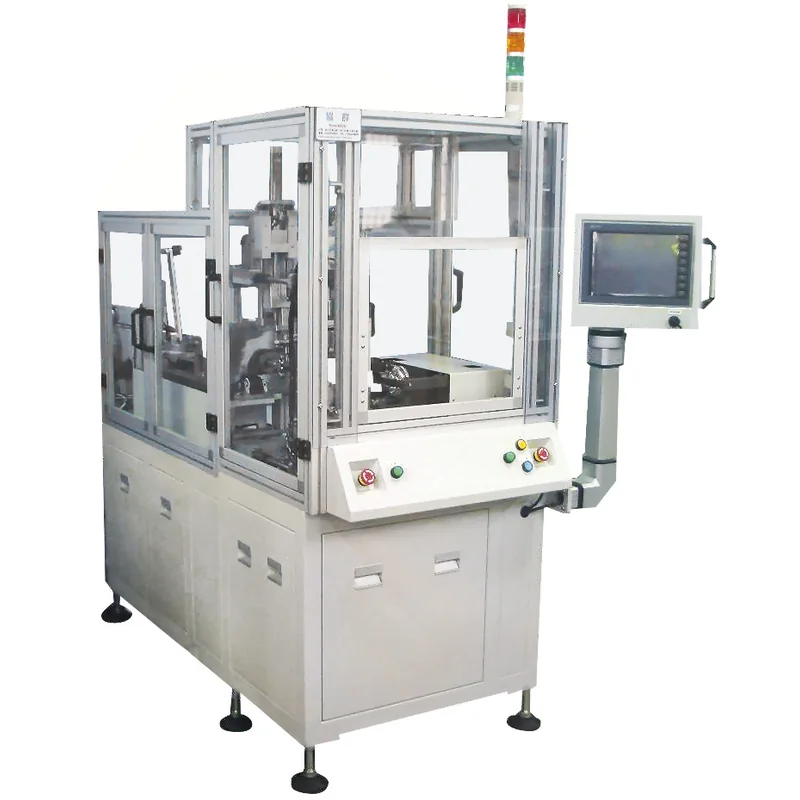

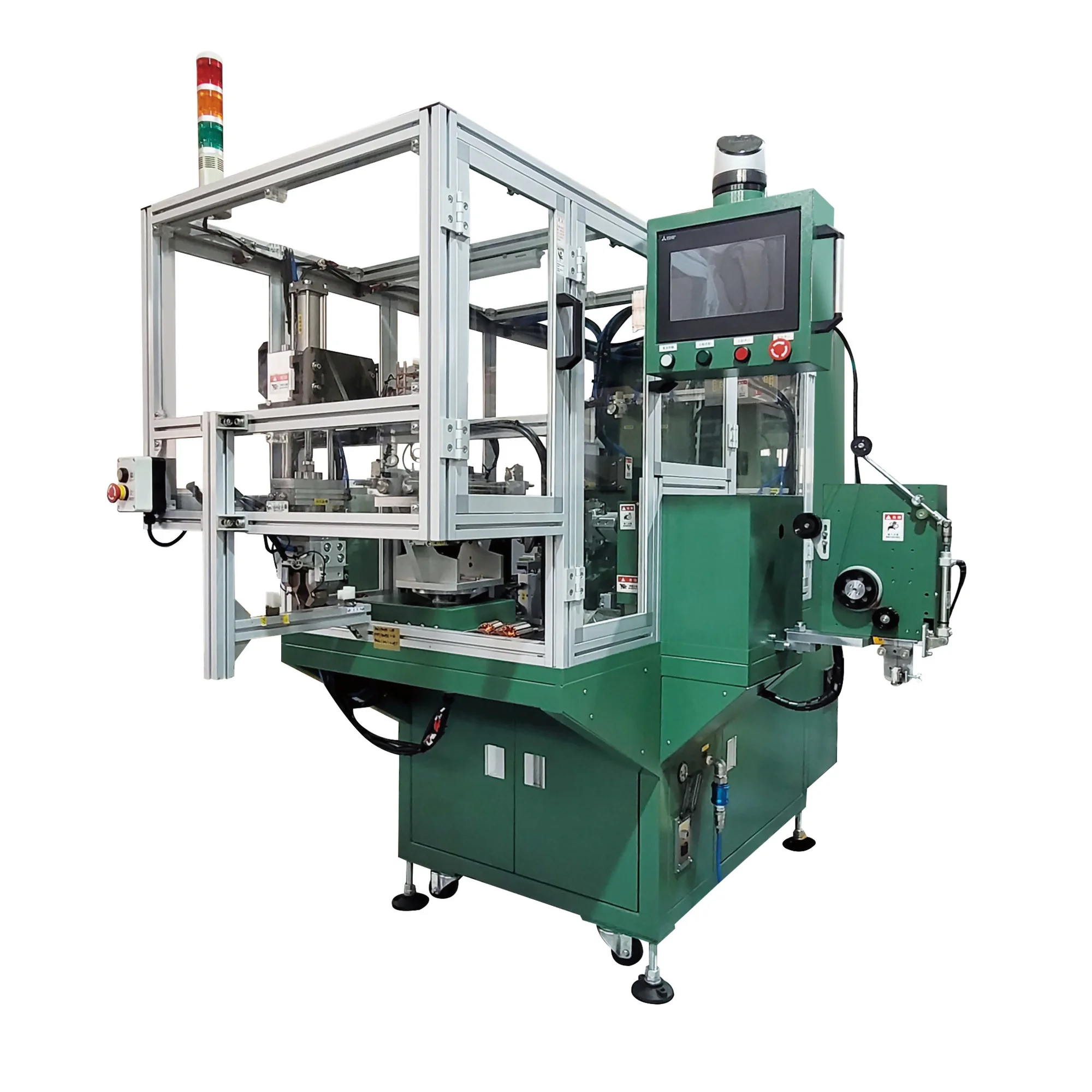

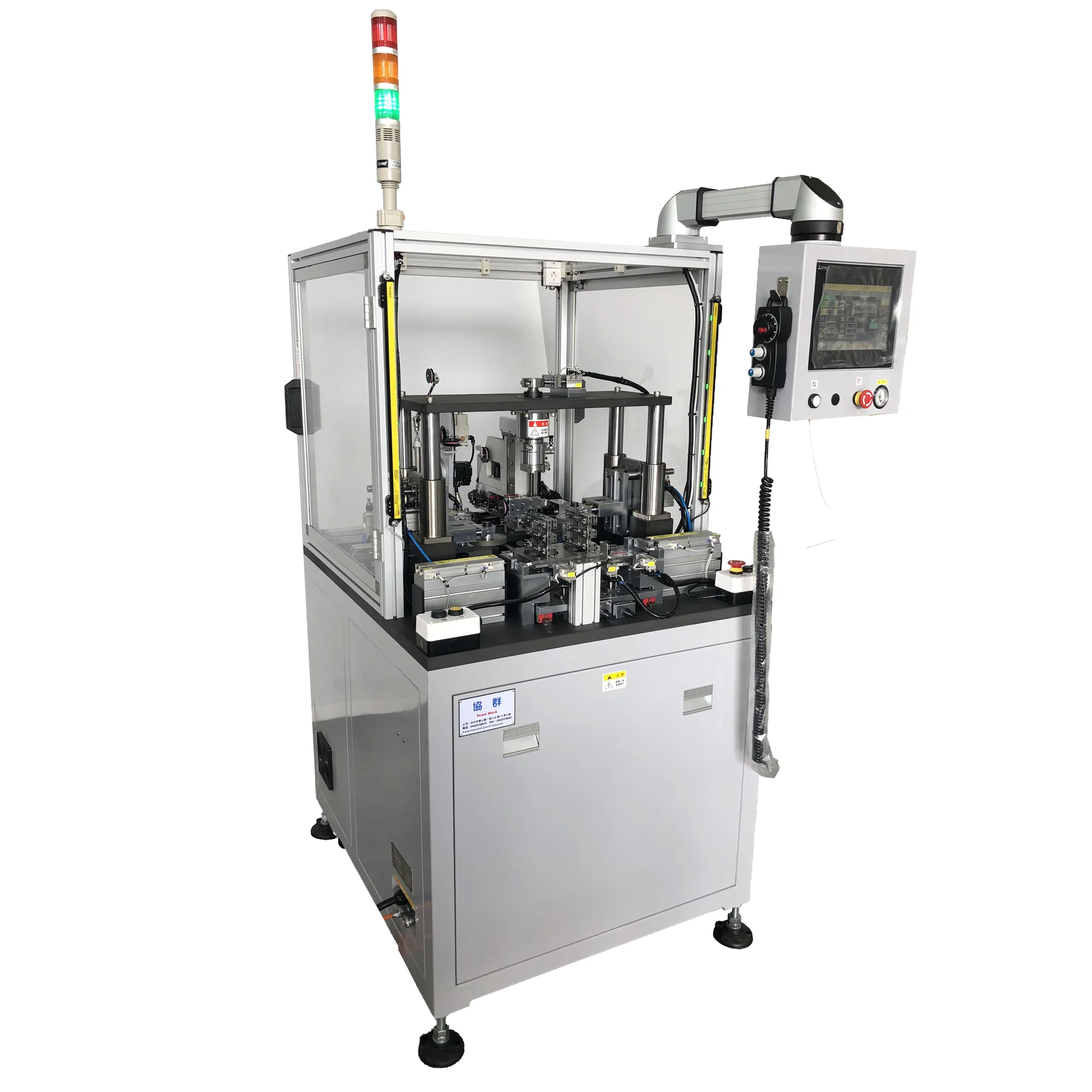

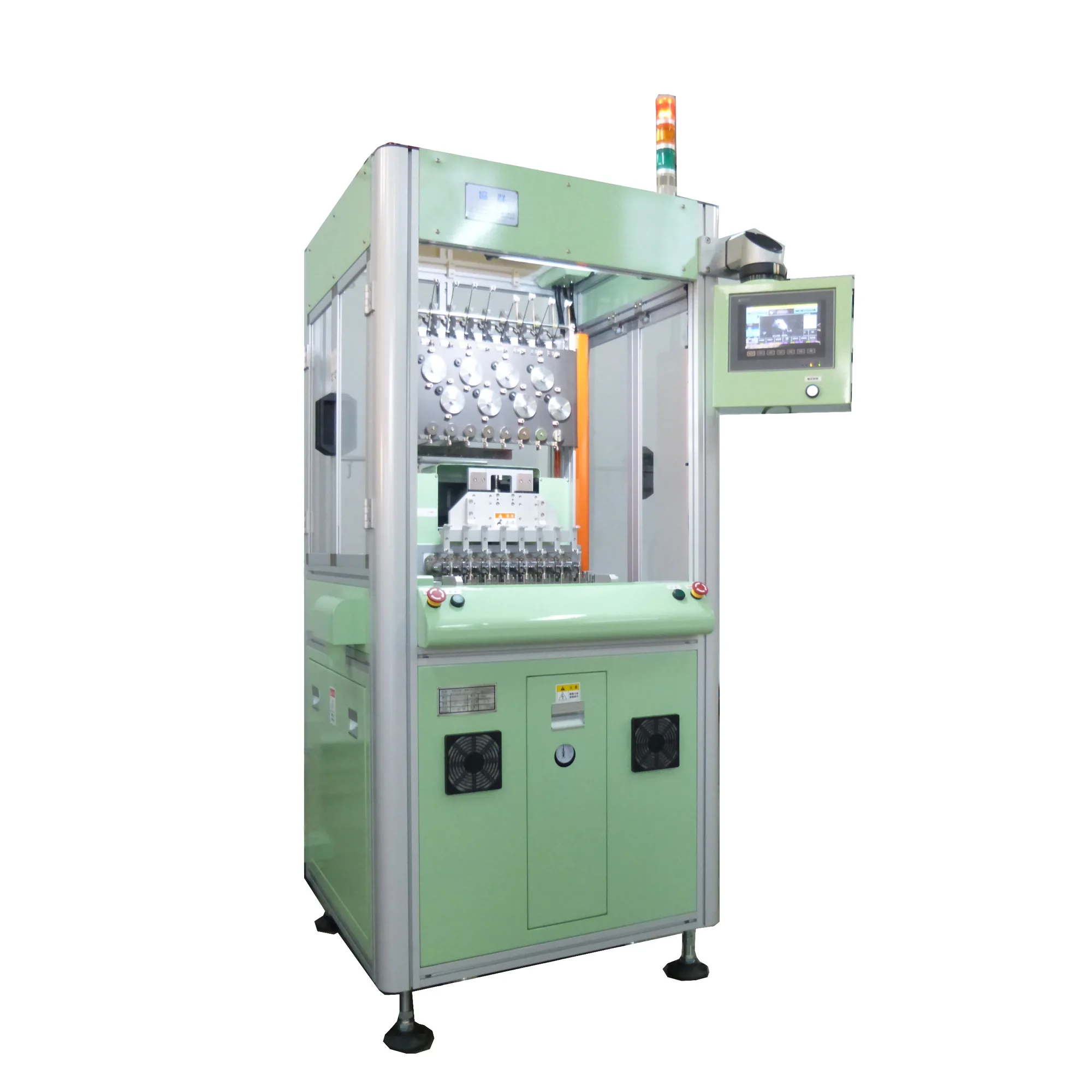

TWM-901

Two Poles Type Stator Winding Machine with One Axis

TWM-901 is a two poles type stator winding machine with one axis built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Category: Winding Machines
Process stage: Winding Machines
Motor types: Brushed, brushless and universal motors

Tags Winding Brushed / universal winding Brushed motor Stator Standalone machine

Request a quotation Book a video call

Product description

What this machine does

Applicable for automatic coil winding for various two poles motors stators.
According to production demand, there are machine with one axis and machine with two axes.
This product is adopting dual-axes independent control which is capable to set independent winding parameter, also synchronous to run winding for different specification of stators. This will increases the flexibility of this machine.
The wire winding mold design can be applied automatically and rapidly, which replace manual tooling change. Modular molds and tooling design is being able to position promptly and high repetition accuracy and result in reducing tooling changing time tremendously and improve production efficiency greatly.
The same model only needs to do part of the tooling replacement to achieve the change of the stator winding with or without end plate.
Implement share tooling design. The same set of tooling may be changed for different stacked heights to reduce mold development cost.
The analog tension output control system provides tension for the stator on each coil winding stages and greatly improves the quality. Optional for servo tension output control provides more accurate tension control.
Equip with automatic wire cutting mechanism. When stator winding has finished, it is capable of cutting copper wire end automatically and clamp. This makes it easier for collecting finished product.
The control system adopts Industrial PLC with a 10" HMI touch panel; operation status and running-monitor data are displayed in real time.
This product can be assembled with remote monitoring module for remote program monitoring and maintenance.

Specifications

What this machine is rated for

Two Poles Type Stator Winding Machine with One Axis — Specifications
Power supply	220V (380V), 3Ø, 5 kW
Pneumatic supply	5 kg/cm²
Stator external diameter	Ø56 mm – Ø110 mm
Stator thickness	max 125 mm
Stator inside diameter	Ø32 mm – Ø75 mm
Applicable wire diameter	Ø0.3 mm – Ø1.2 mm
Winding speed (max)	180 rpm (depending on winding item)
Machine size (D x W x H)	2150 x 1300 x 1750 mm
Machine net weight	1300 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

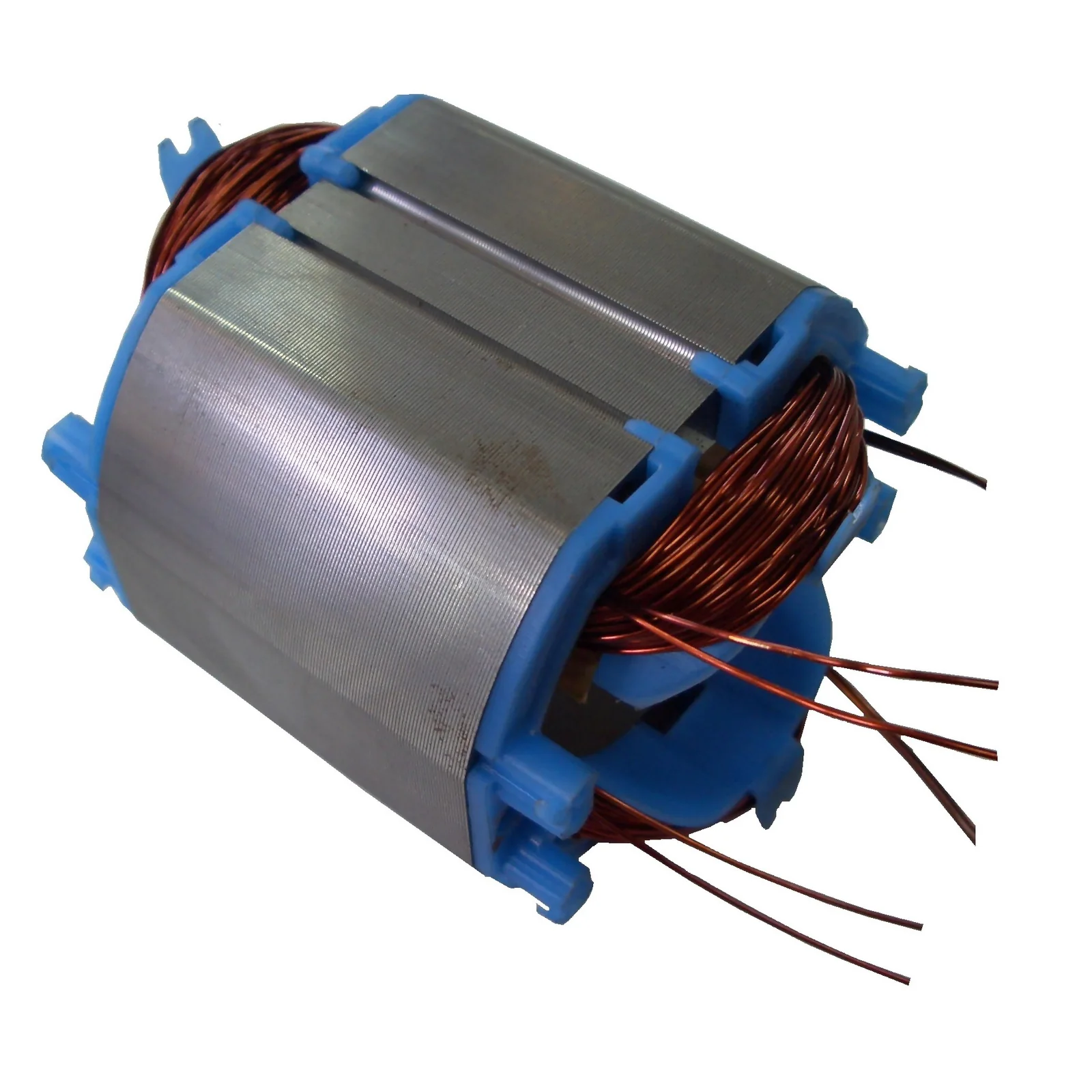

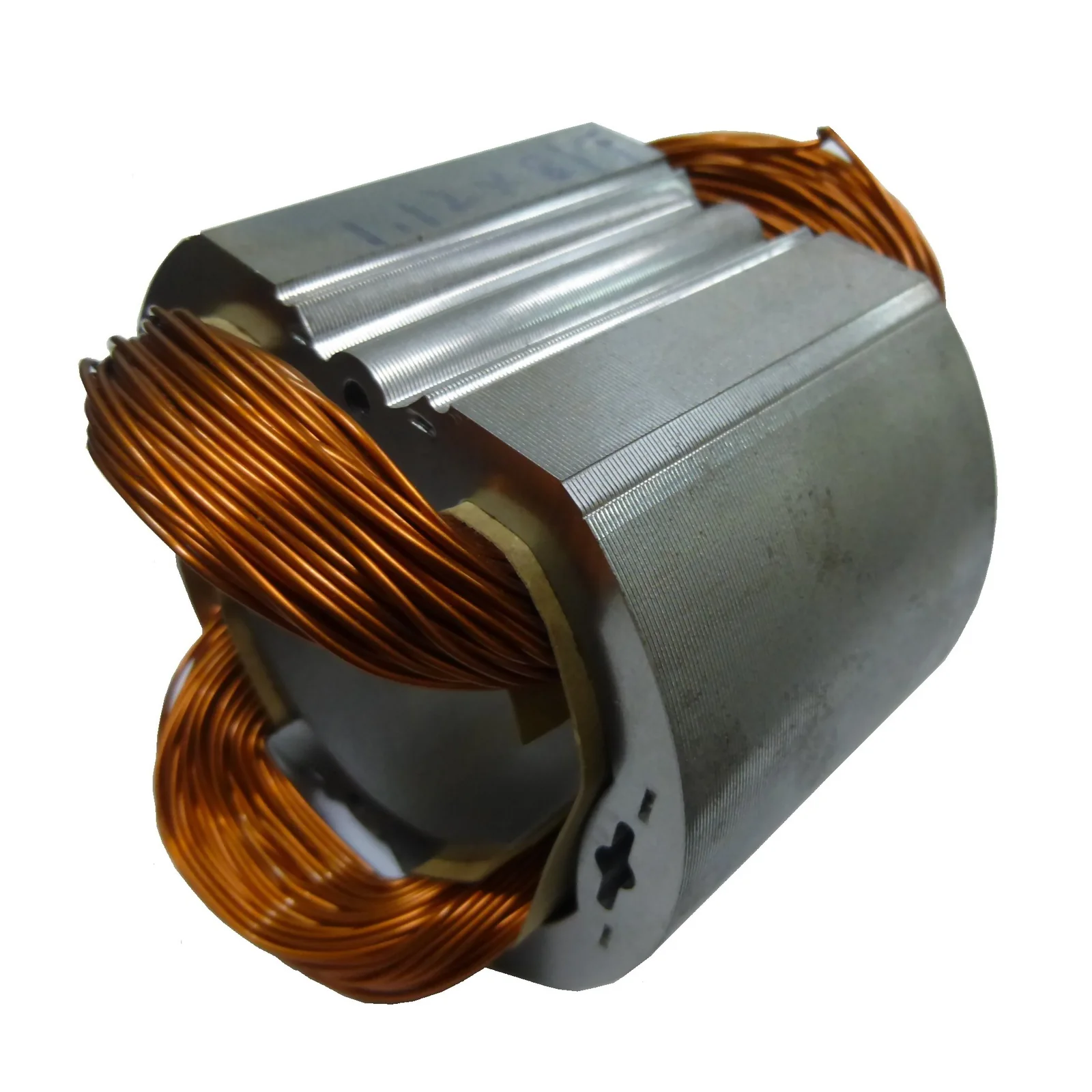

TWM-901 Two Poles Type Stator Winding Machine with one Axis - finished part produced on this machine
