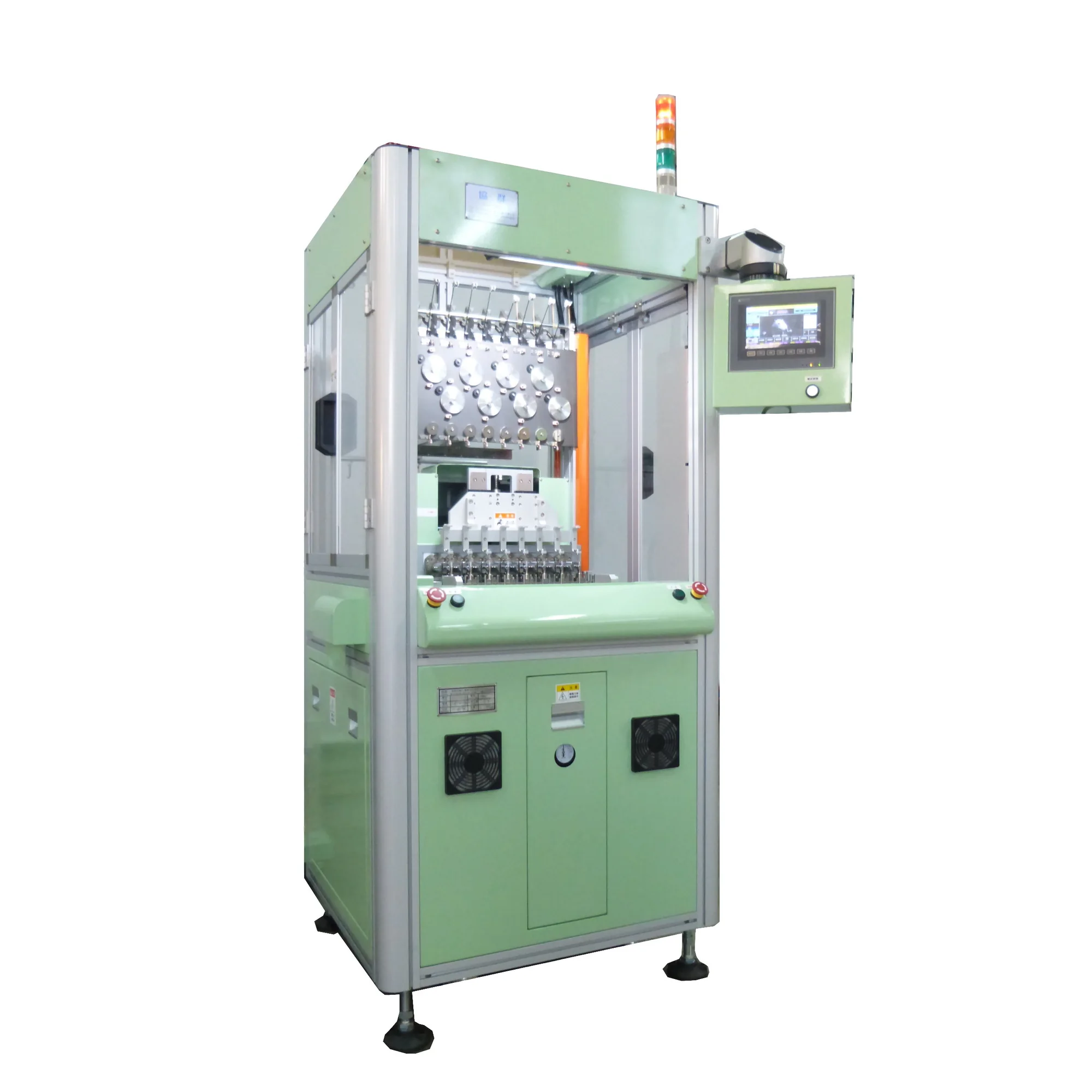

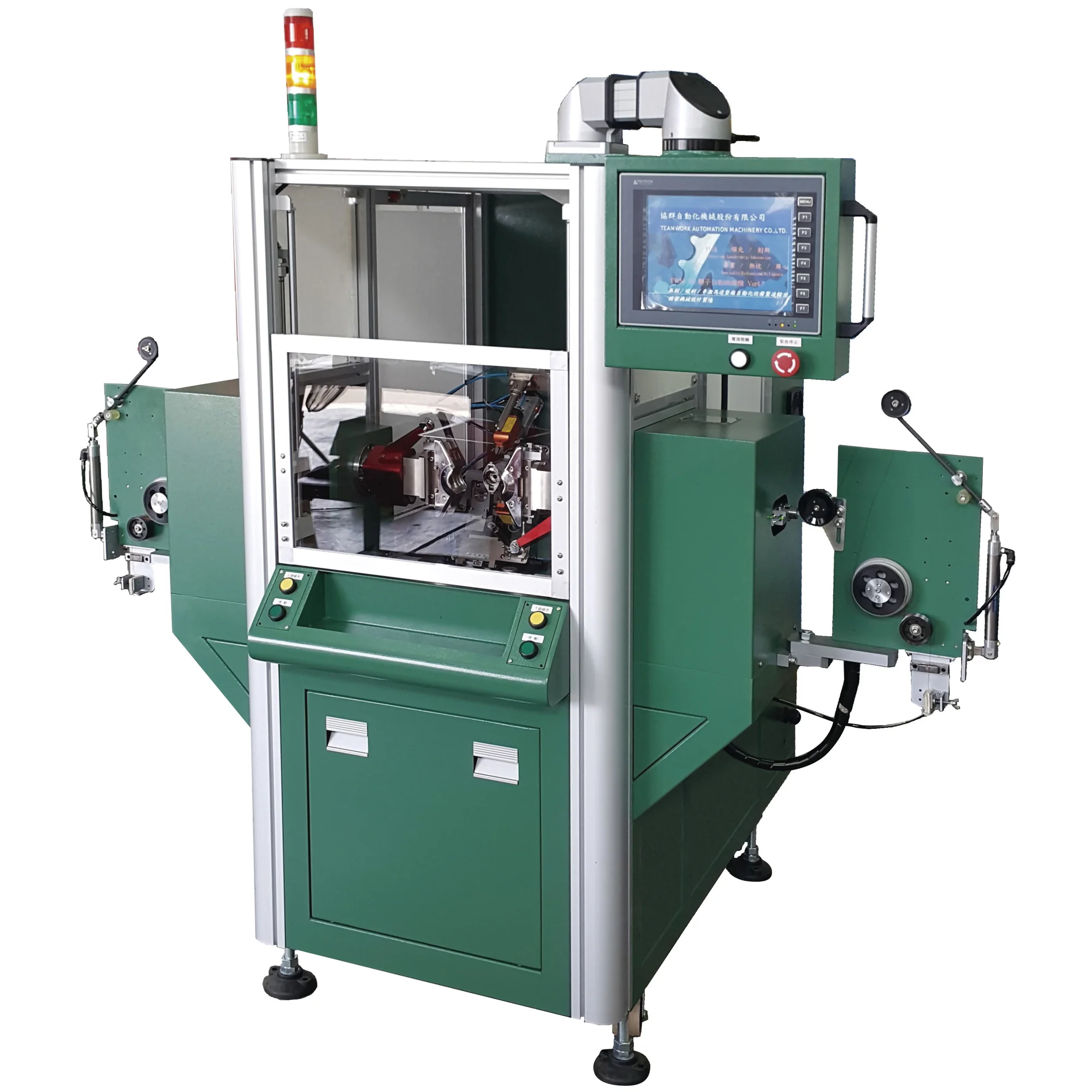

BLDC In-Slot Stator Needle Winding Machine

TWM-902S: BLDC In-Slot Stator Needle Winding Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as internal stator winding machine or inner-slot BLDC stator winder. Standalone or line-integrated.

Category: Winding Machines
Process stage: Winding Machines
Motor types: Brushless (BLDC) motors

Tags Winding BLDC / brushless winding Brushless (BLDC) motor Stator Production line

Request a quotation Book a video call

Product description

What this machine does

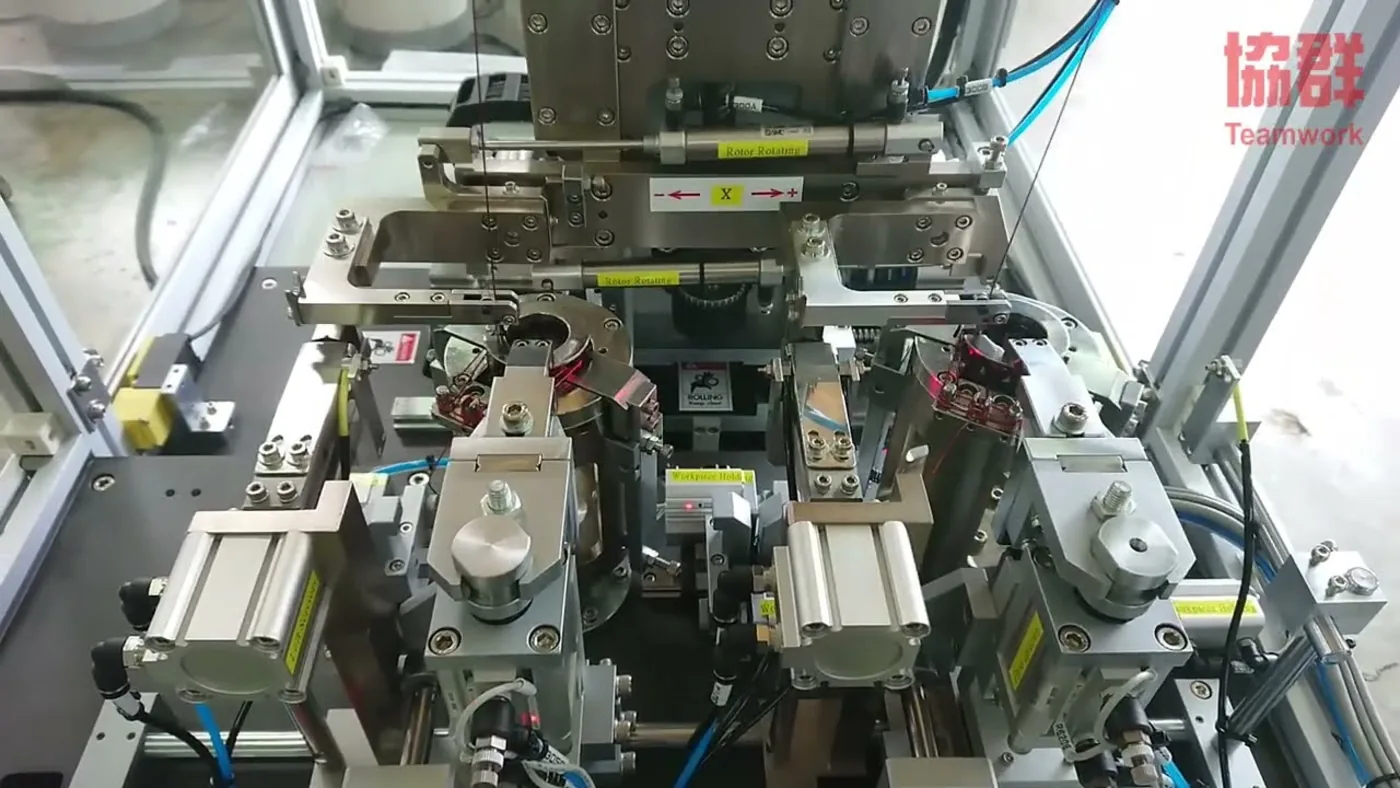

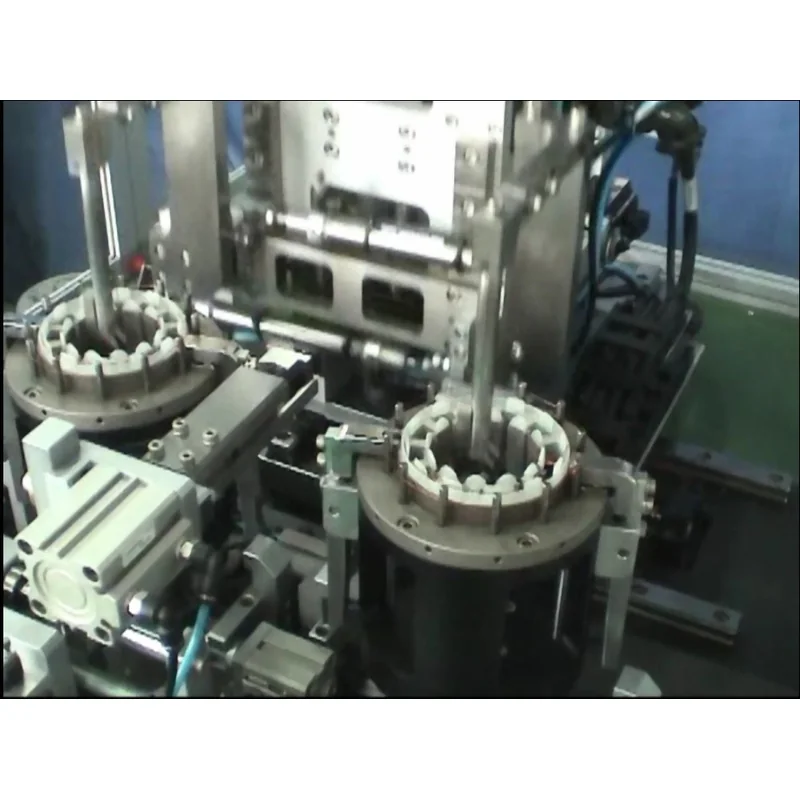

Automatic needle (nozzle) winder for BLDC in-slot (internally wound) stators.

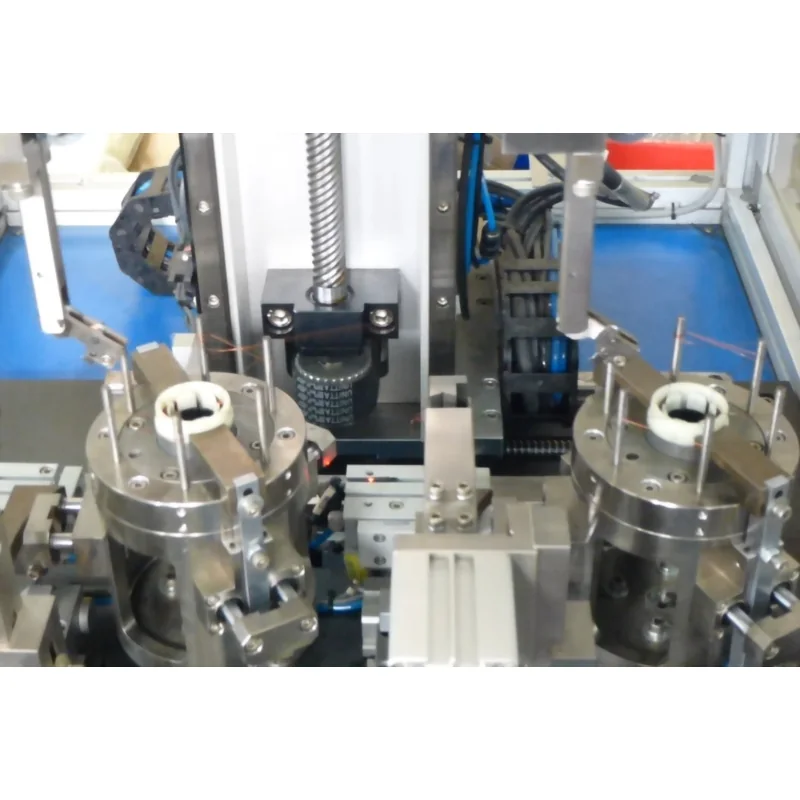

Dual-axis independent control: each axis has its own winding program, so two different stator designs can be wound at the same time.
Patented nozzle-lift lead-routing system greatly reduces post-winding work.
Shared tooling: one tooling set covers different stack heights, lowering tooling cost.
Guided teach-in programming for flexible, fast setup of new parts.
Multi-stage analog tension control; servo tension control optional for higher precision.
Automatic cut-and-clamp of the wire end when winding is complete.
Modular quick-change tooling and handwheel jog mode for safe setup.
Industrial PLC with 10" touchscreen HMI; optional remote-monitoring module.

Specifications

What this machine is rated for

Also known as Internal stator winding machine · Inner-slot BLDC stator winder · Needle winding machine

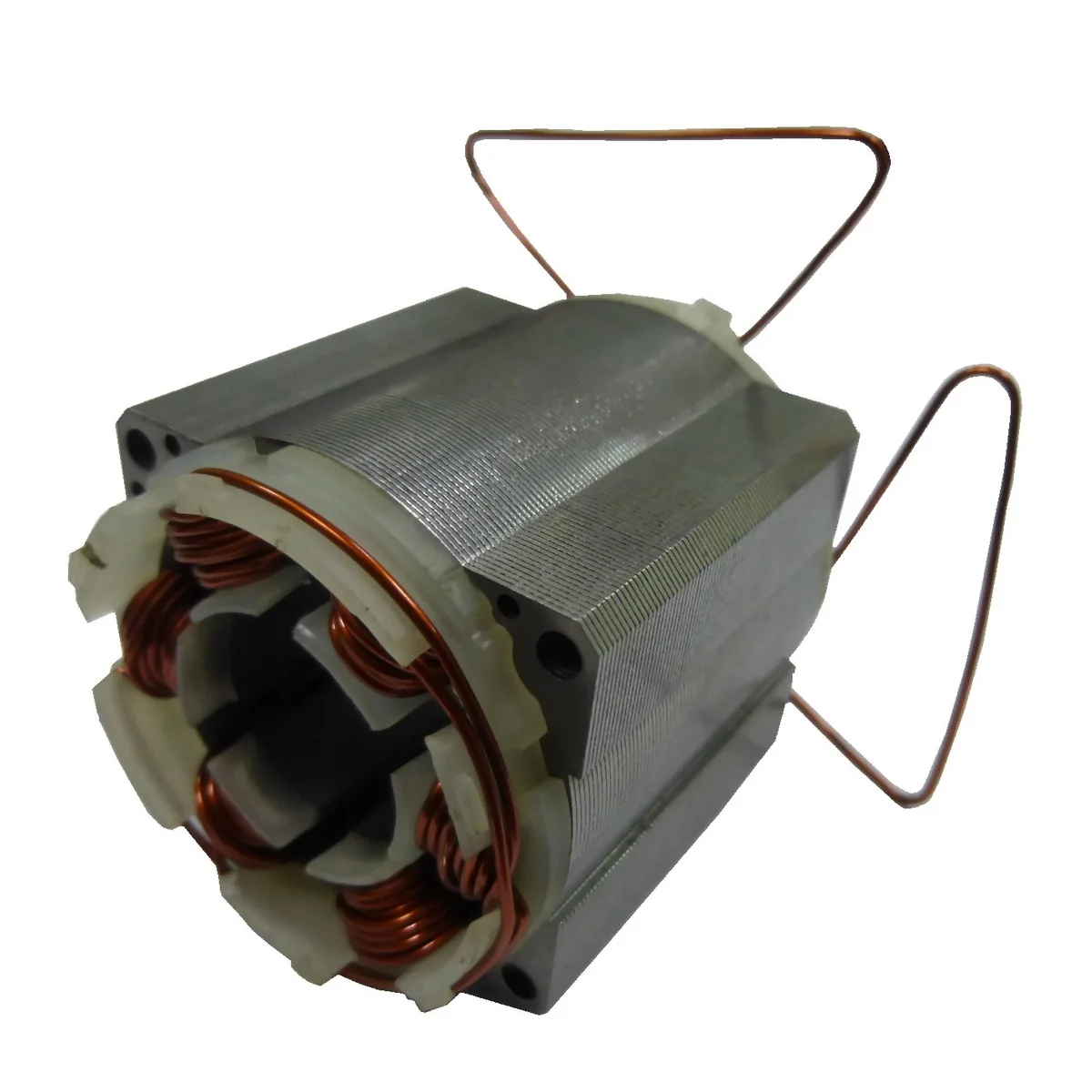

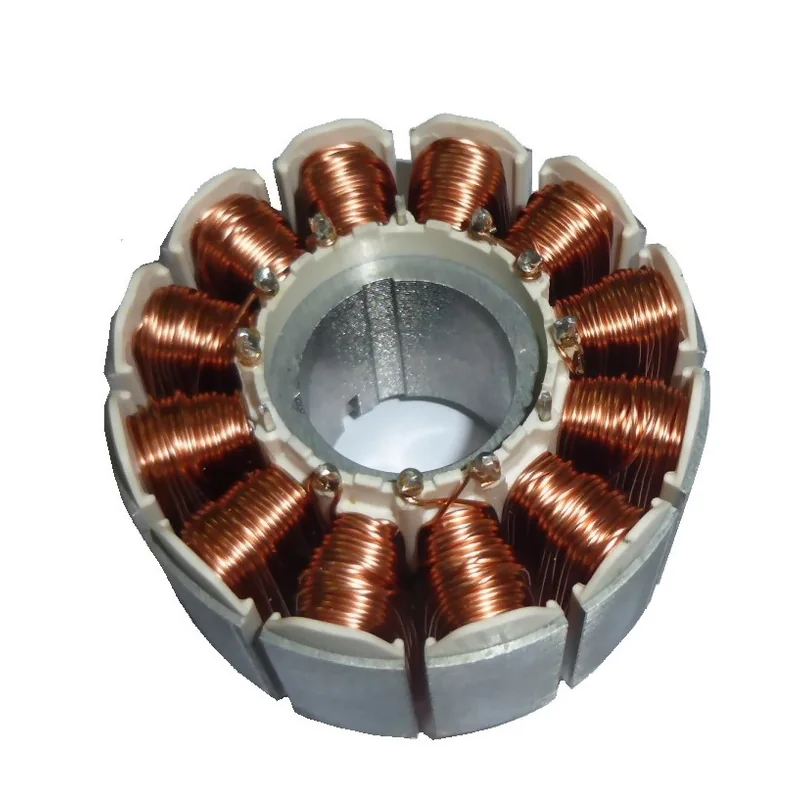

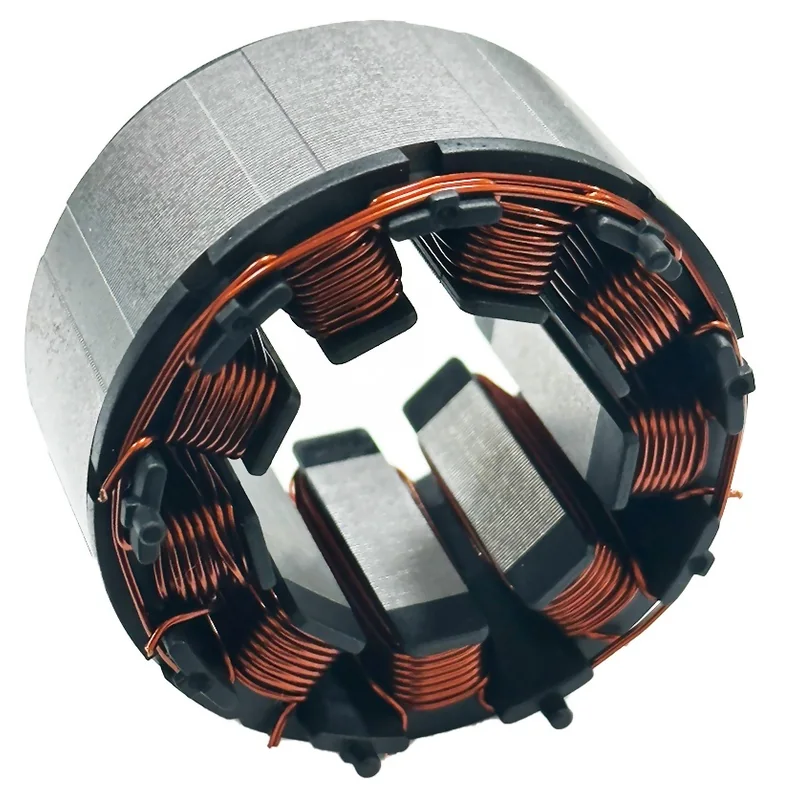

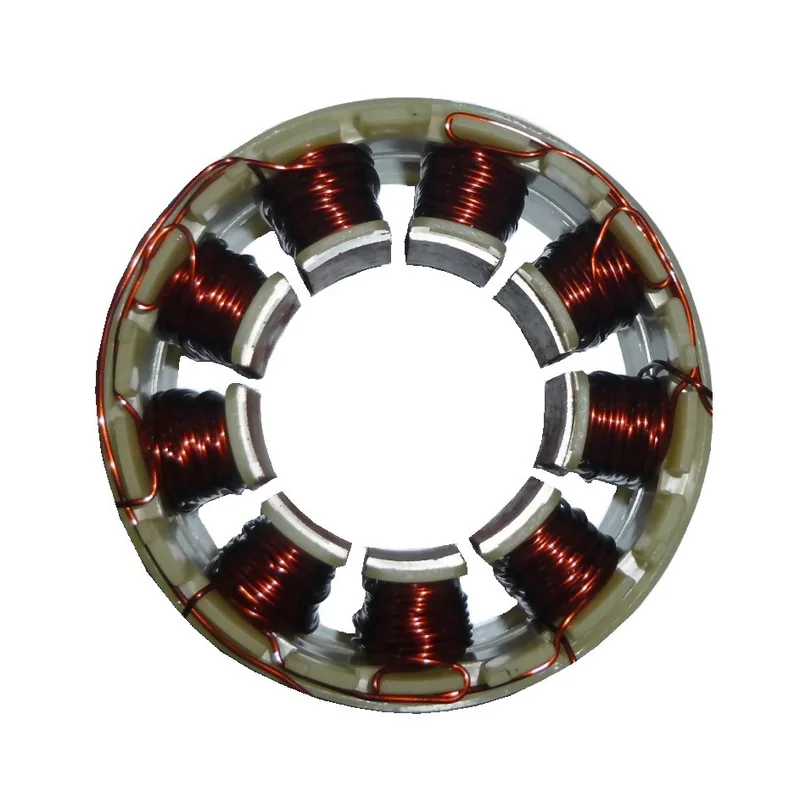

Workpiece: BLDC in-slot (internal) stators
Winding method: needle (nozzle) winding
Axes: dual, independently programmable
Tension: multi-stage analog, servo optional
Termination: automatic wire cut and clamp
Power supply: 220 V (380 V)
Pneumatic (hydraulic) supply: 5 kg/cm²
Stator external diameter (max): Ø35-110 mm
Applicable wire diameter: 0.2-1.5 mm
Winding speed (max): 450 rpm (depending on winding item)
Machine net weight: 500 kg
Machine size (D x W x H): 1200 x 900 x 1710 mm
Workstations: 1-4
Coil winding unit: X, Y and Z axes, servo motors with ball screws
Stator angle control: 1 servo-controlled set
Tension device: analog tension output control, or 2 servo-controlled sets with D/A
Control system: Japanese motion-control platform
Standard: parameter memory, quick die change, error detection and display, service prompt, remote program monitoring, handwheel (manual pulse generator), automatic wire cutting and clamping
Optional: robot and conveyor connection

Capabilities shown are typical. Values outside this range can be quoted on request.
