TWM-702

Automatic Armature Winding Machine (Stuffing Type)

TWM-702: Automatic Armature Winding Machine (Stuffing Type), built by Teamwork Automation in Taichung, Taiwan. Also known as armature winding machine or stuffing-type armature winder. Standalone or line-integrated.

Process stage
Winding Machines
Motor types
Brushed and universal motors
Tags WindingBrushed / universal windingBrushed motorArmatureStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Automatic armature winder for brushed DC and universal (series-wound) motors with grooved, hookless commutators. Winding, lead staking and trimming are completed in a single cycle.
  • Independent AC servo drive on each flyer for high-speed, accurate winding.
  • Servo-controlled indexing with 0.01° accuracy.
  • 360° wire-clamping motion and an armature reversing/shifting mechanism let leads be terminated at any angle.
  • Continuous staking with no loose lead ends improves termination quality and magnet-wire utilization.
  • High-sensitivity servo tension control with multi-stage tension profiles for each winding phase.
  • Modular quick-change tooling with high repeatability minimizes changeover time.
  • Industrial PLC with 10" touchscreen HMI displaying operating and monitoring data in real time.
  • Ready for robot and conveyor integration in a fully automatic line; optional remote-monitoring module for remote program support and maintenance.

Specifications

What this machine is rated for

Also known as Armature winding machine · Stuffing-type armature winder · Grooved-commutator armature winder

Power supply 220V, 3Ø, 3 kW
Pneumatic / hydraulic supply 5 kg/cm²
Rotor OD Ø25 mm – Ø55 mm
Commutator OD Ø25 mm – Ø40 mm
Core thickness 25 mm – 70 mm
Applicable wire diameter 0.4 mm – 1.0 mm
Winding speed (max) 2000 rpm (depending on winding item)
Machine size (D x W x H) 2210 x 2000 x 1970 mm
Machine net weight 800 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

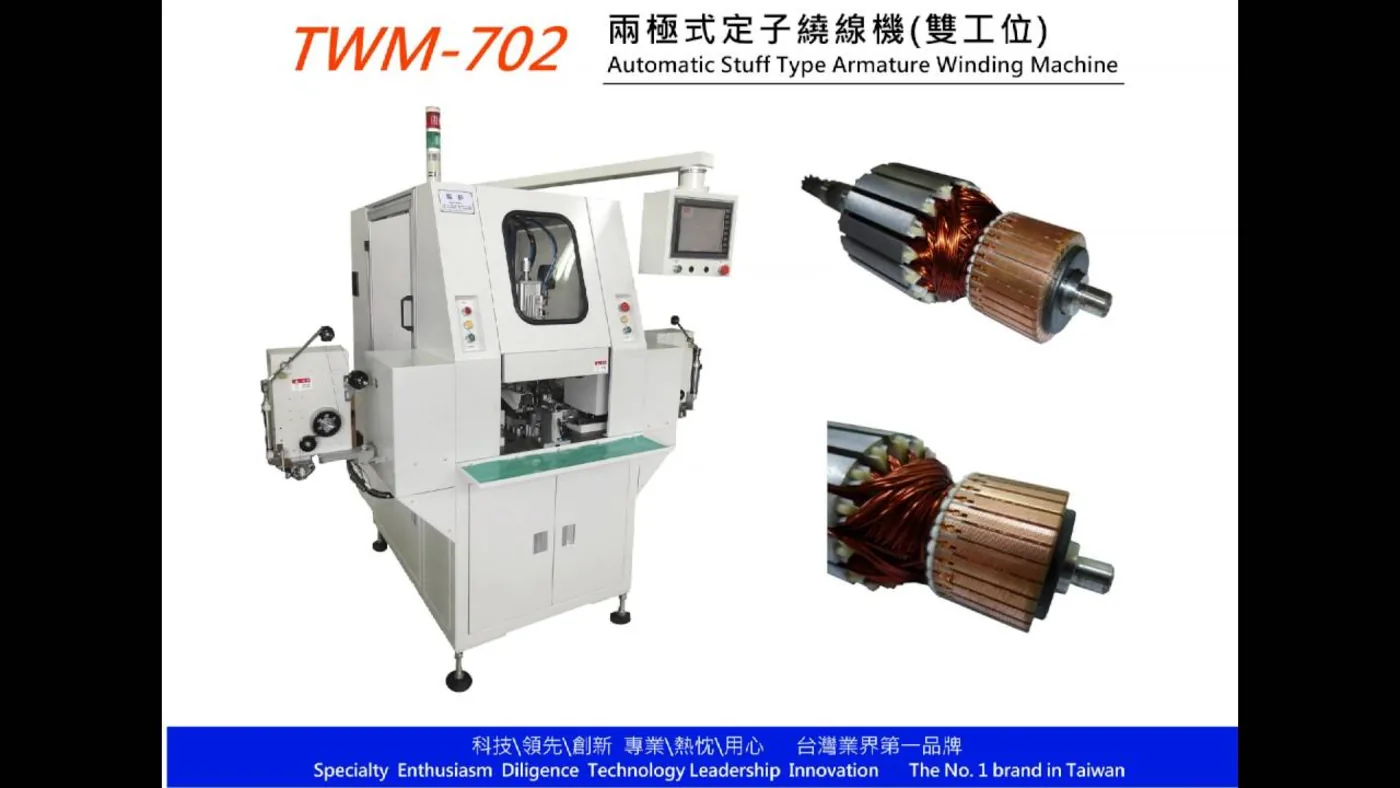

Watch this machine run

Automatic Armature Winding Machine (Stuffing Type)

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

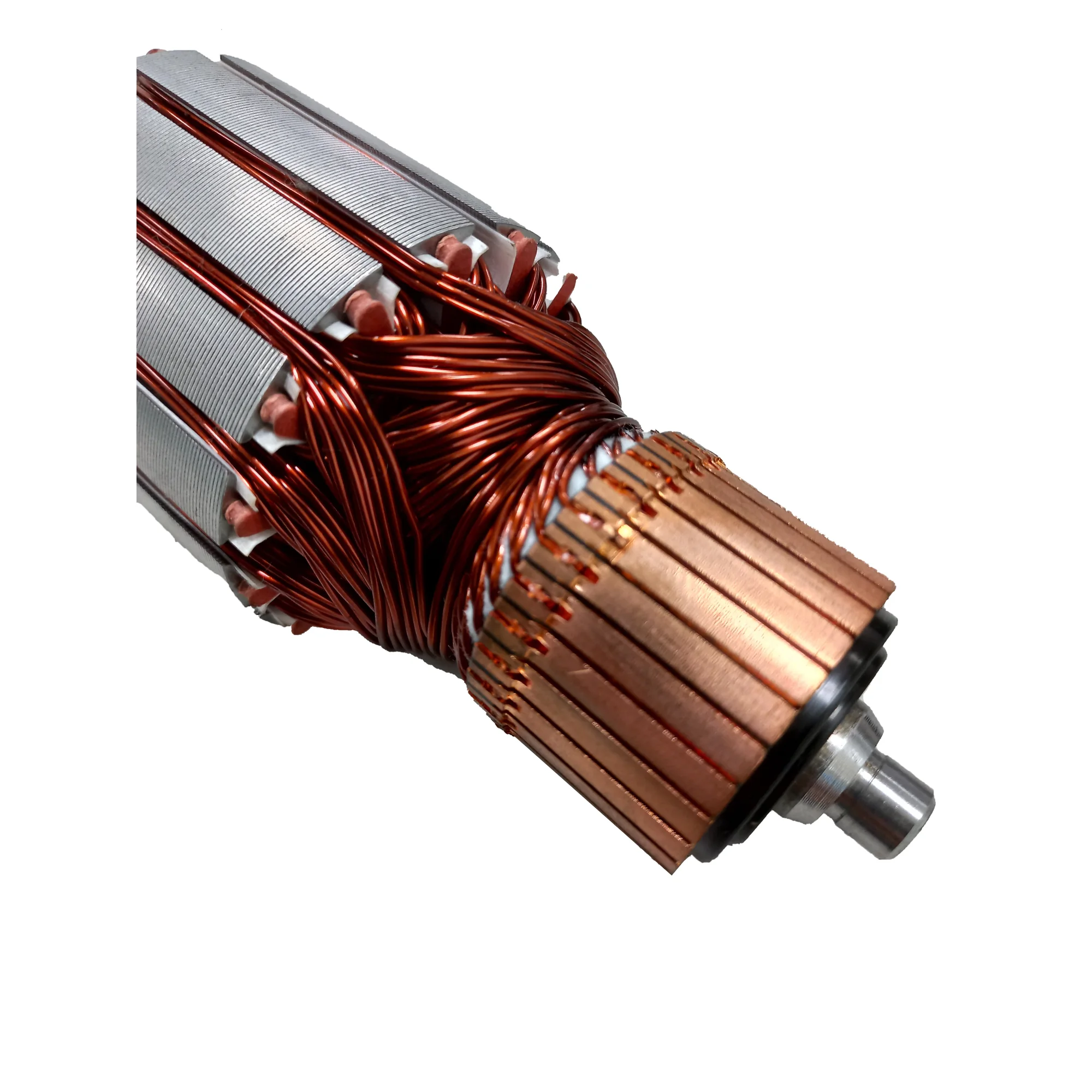

TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine

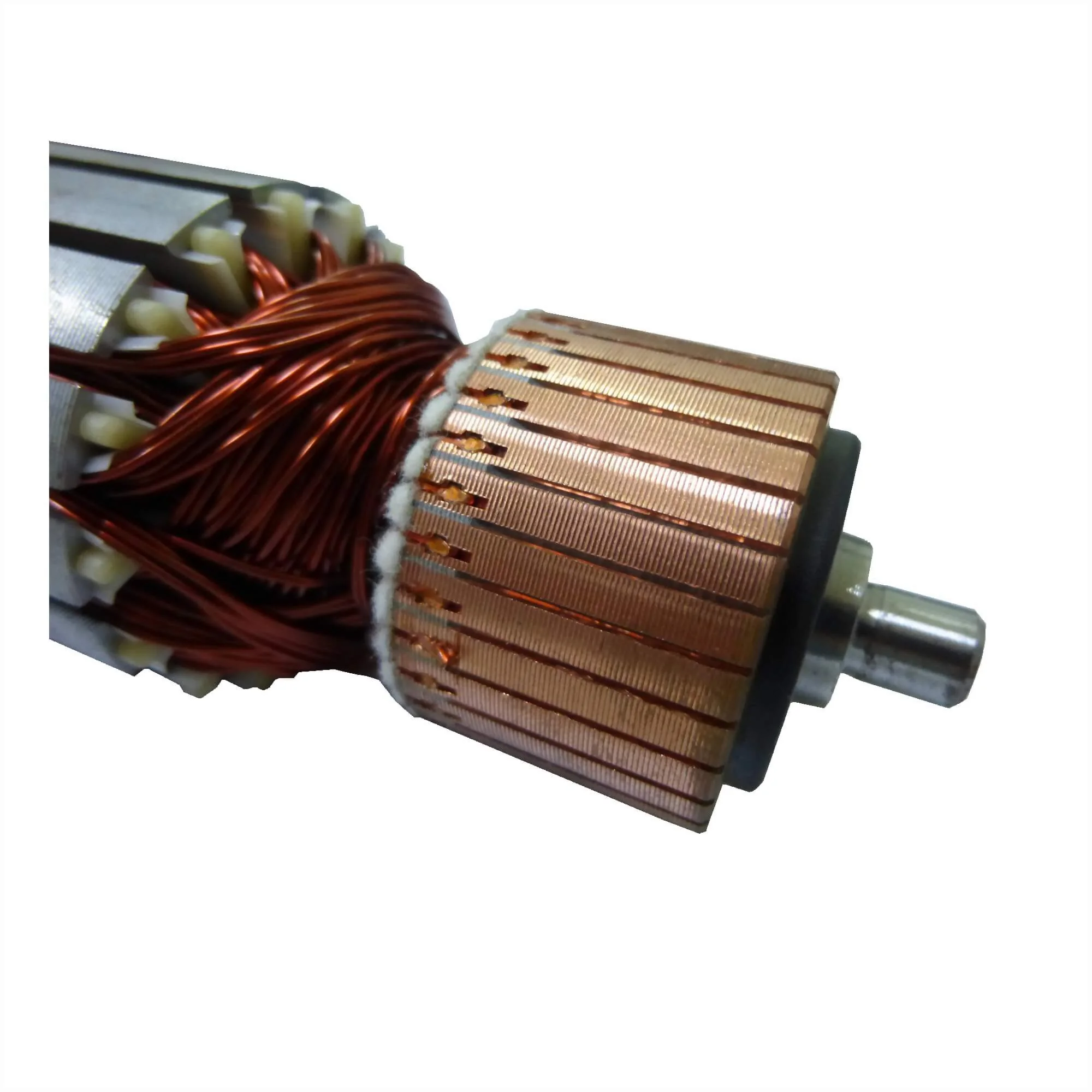

TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine

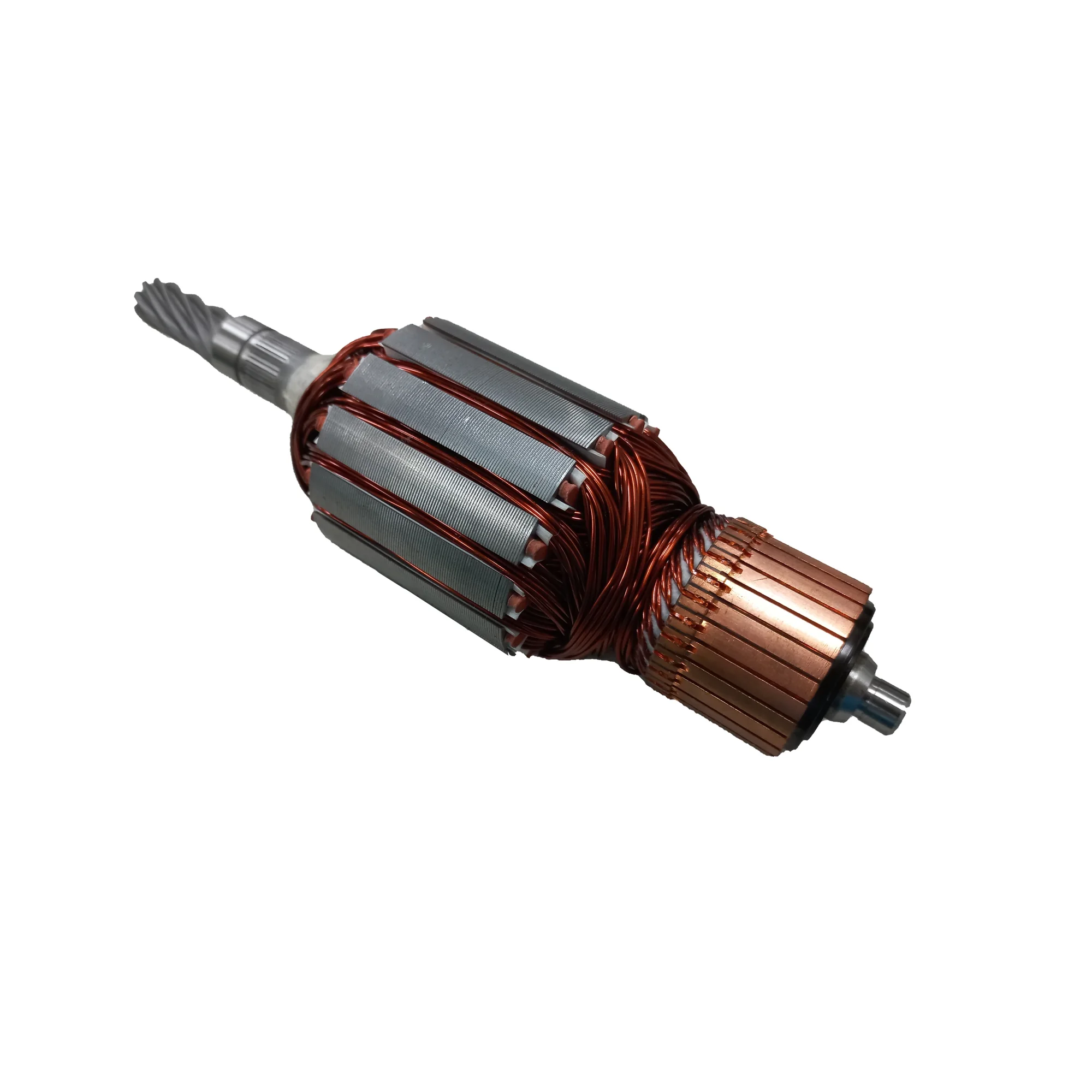

TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine

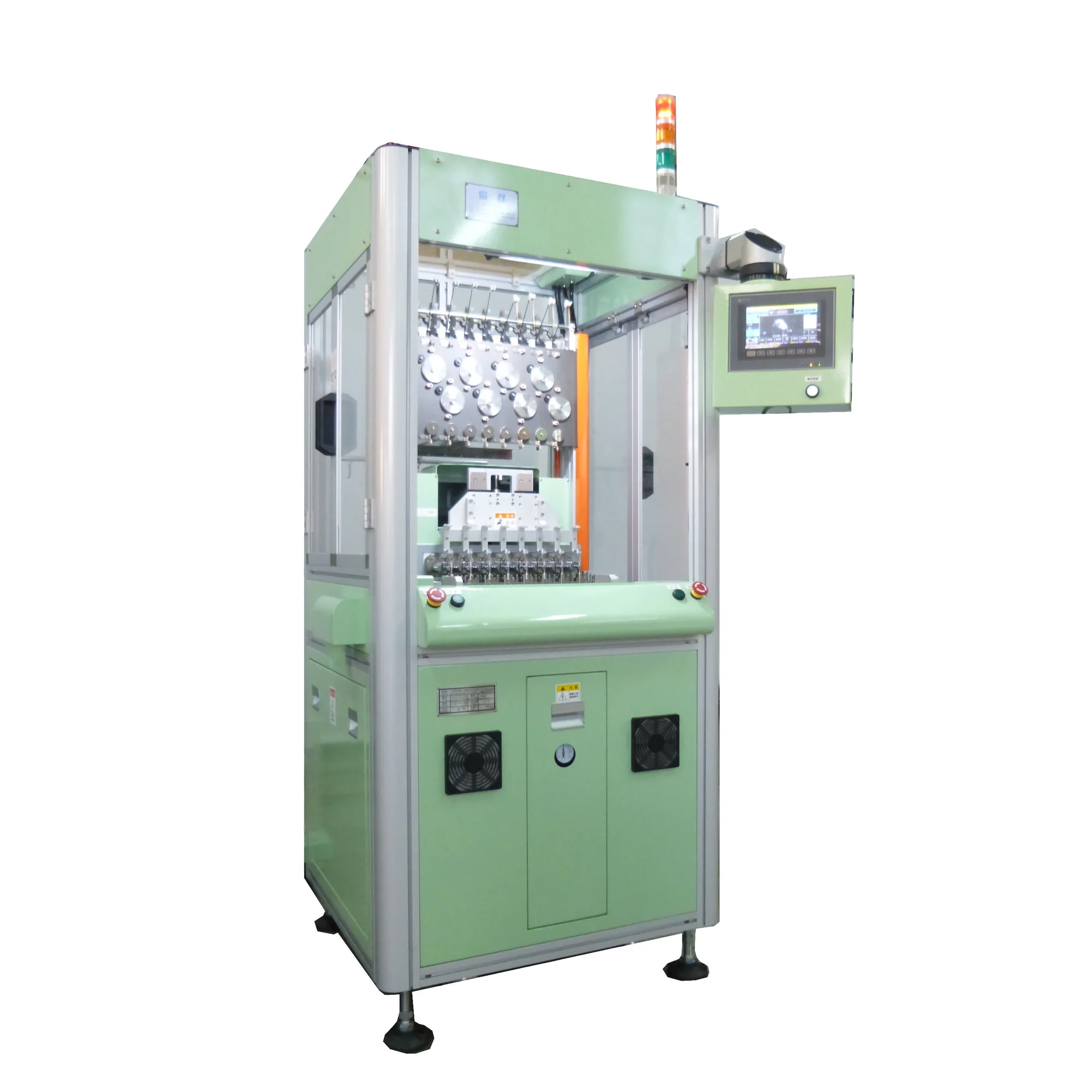

TWM-702 Automatic Armature Winding Machine (Stuffing Type)

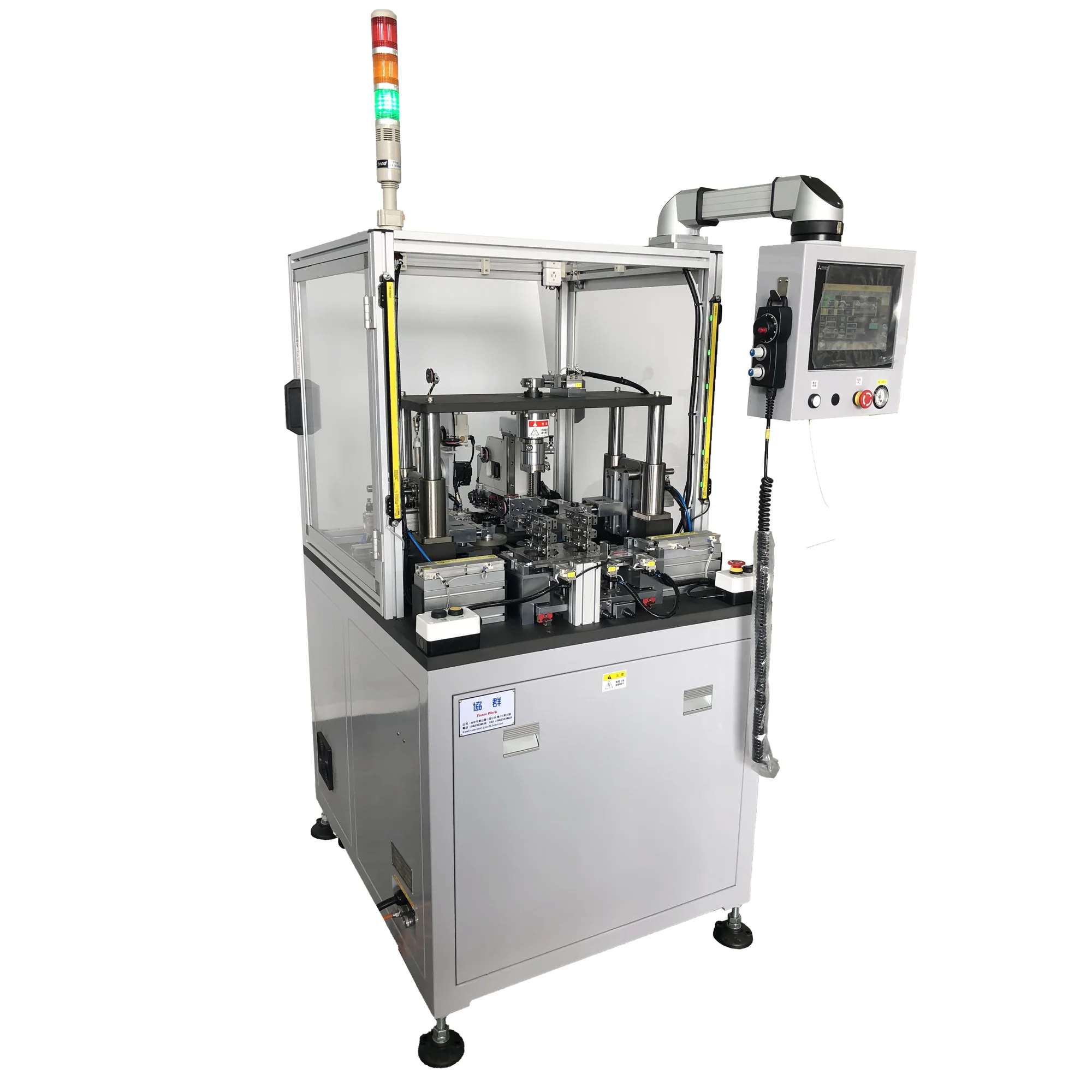

TWM-702 Automatic Armature Winding Machine (Stuffing Type)

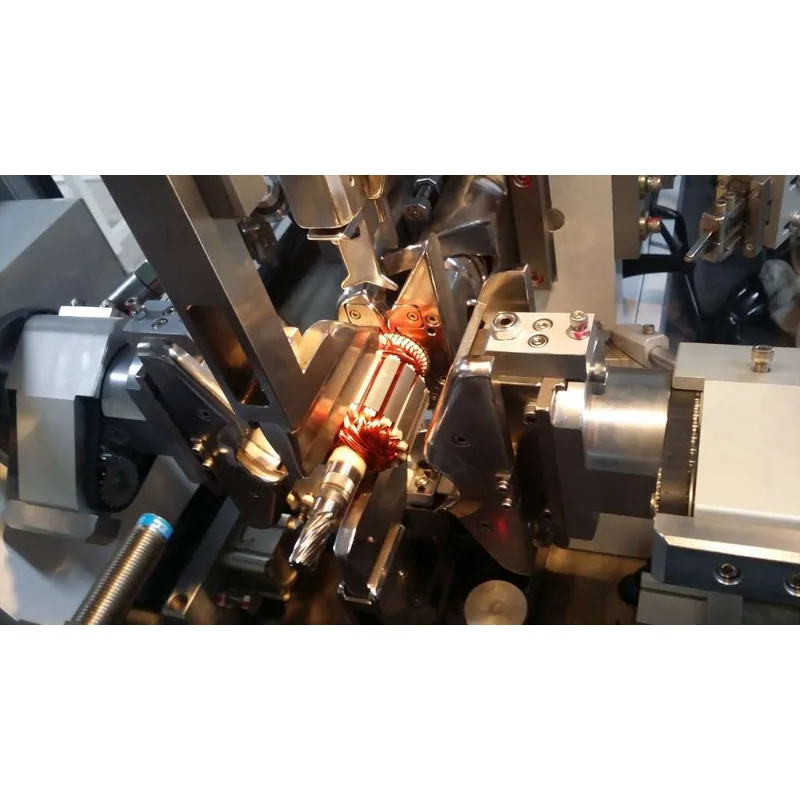

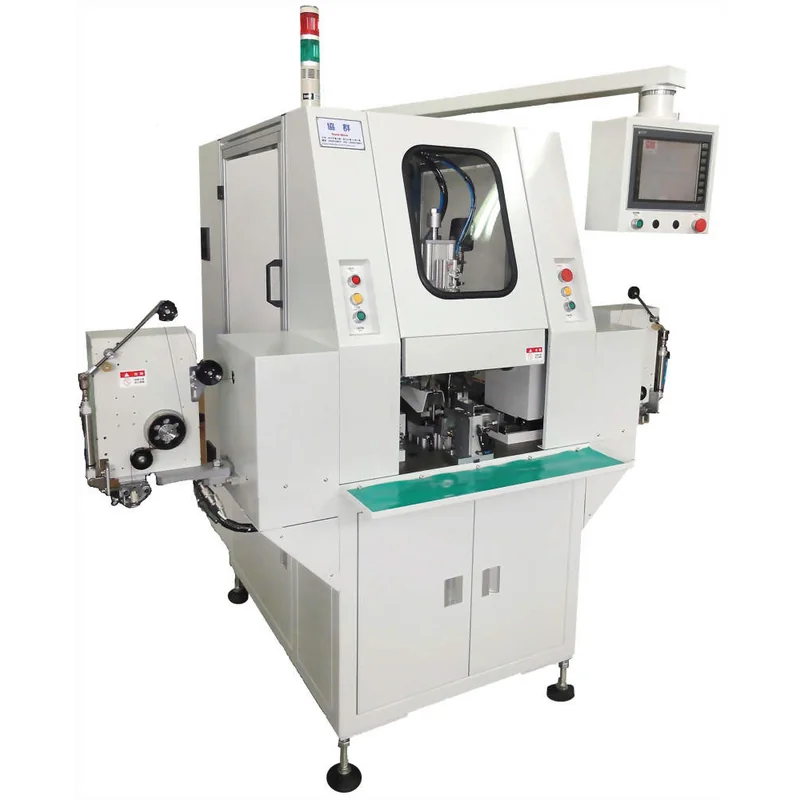

TWM-702 Automatic Armature Winding Machine (Stuffing Type) in operation
TWM-702 Automatic Armature Winding Machine (Stuffing Type)
TWM-702 Automatic Armature Winding Machine (Stuffing Type) in operation
TWM-702 Automatic Armature Winding Machine (Stuffing Type) in operation
TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine
TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine
TWM-702 Automatic Armature Winding Machine (Stuffing Type) - finished part produced on this machine
