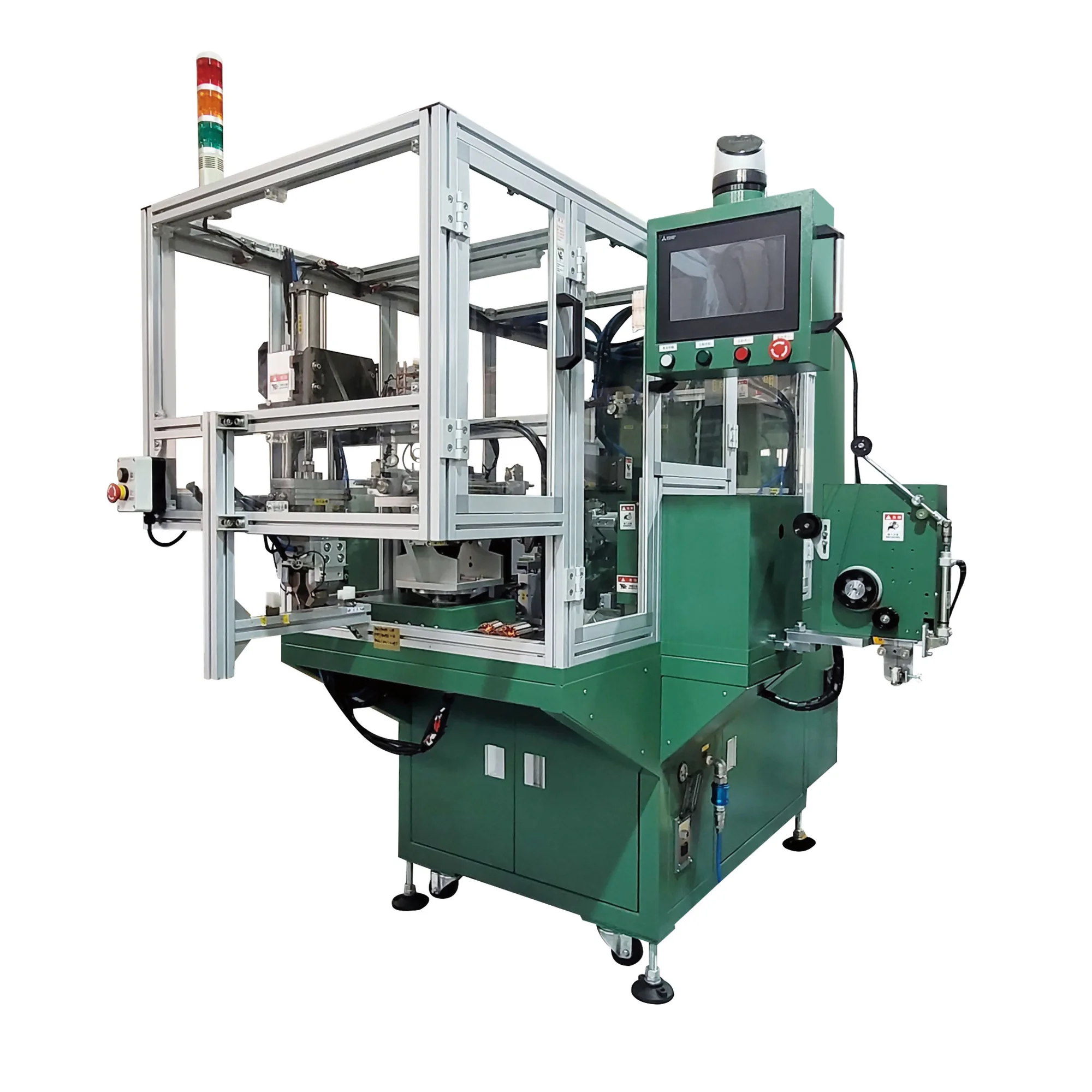

TWM-901S

2-Pole Stator Winding Machine (Dual Station)

TWM-901S: 2-Pole Stator Winding Machine (Dual Station), built by Teamwork Automation in Taichung, Taiwan. Also known as 2-pole stator winding machine (dual station) or two-station stator winder. Standalone or line-integrated.

Category: Winding Machines
Process stage: Winding Machines
Motor types: Brushed, brushless and universal motors

Tags Winding Brushed / universal winding Brushed motor Stator Standalone machine

Request a quotation Book a video call

Product description

What this machine does

Automatic winder for 2-pole motor stators.

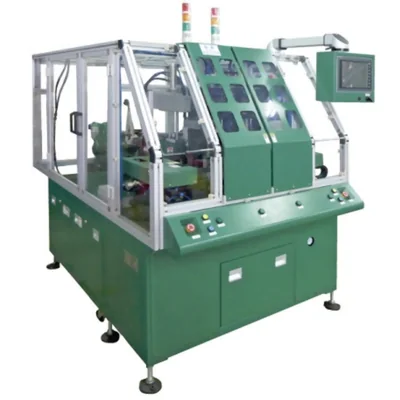

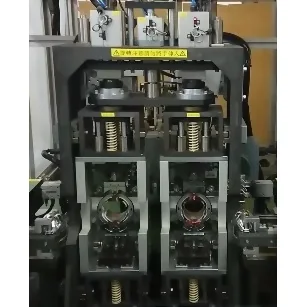

Dual-station design with independent control: each station has its own winding program and can wind a different stator design at the same time.
Automatic winding-form insertion replaces manual tooling change; modular tooling with high repeatability.

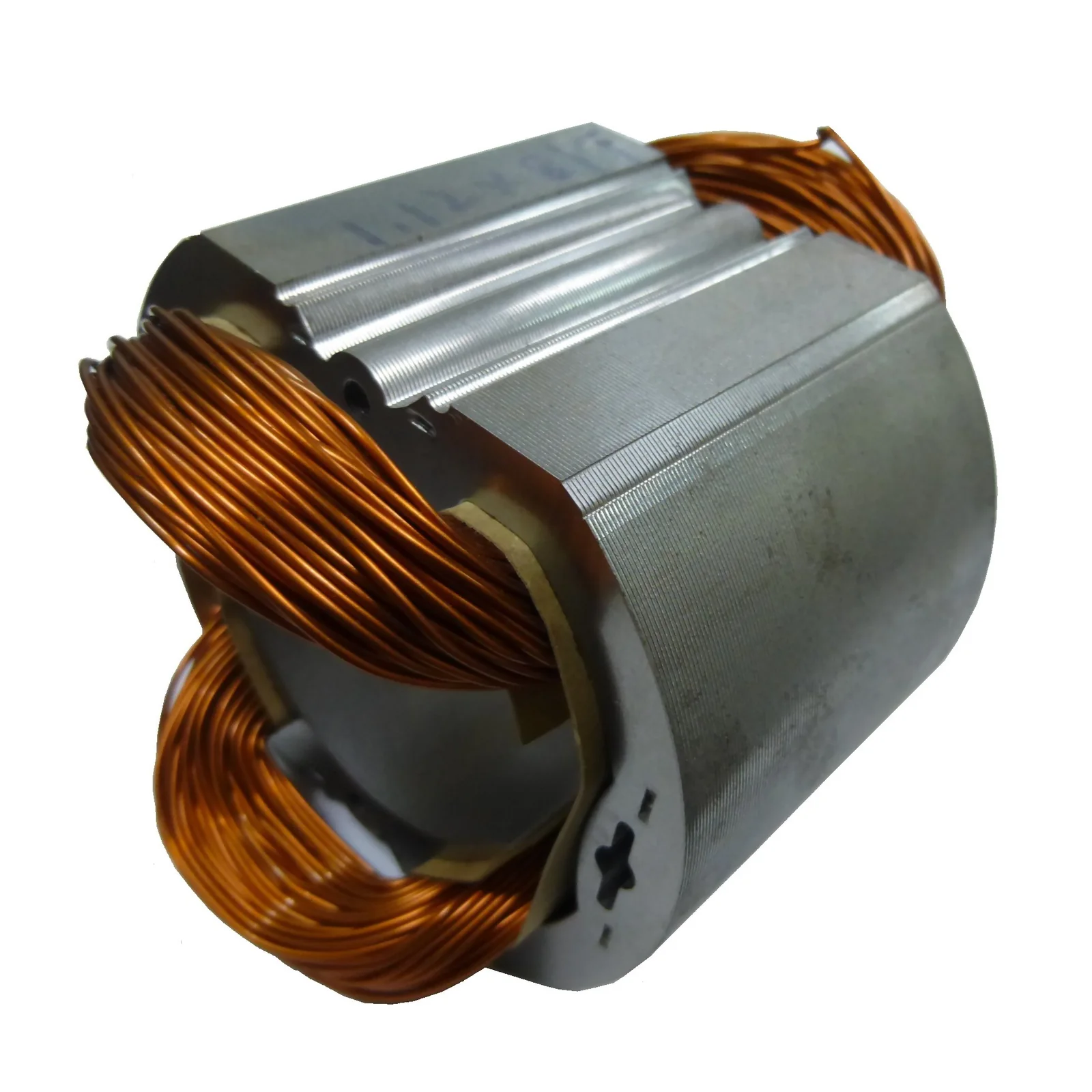

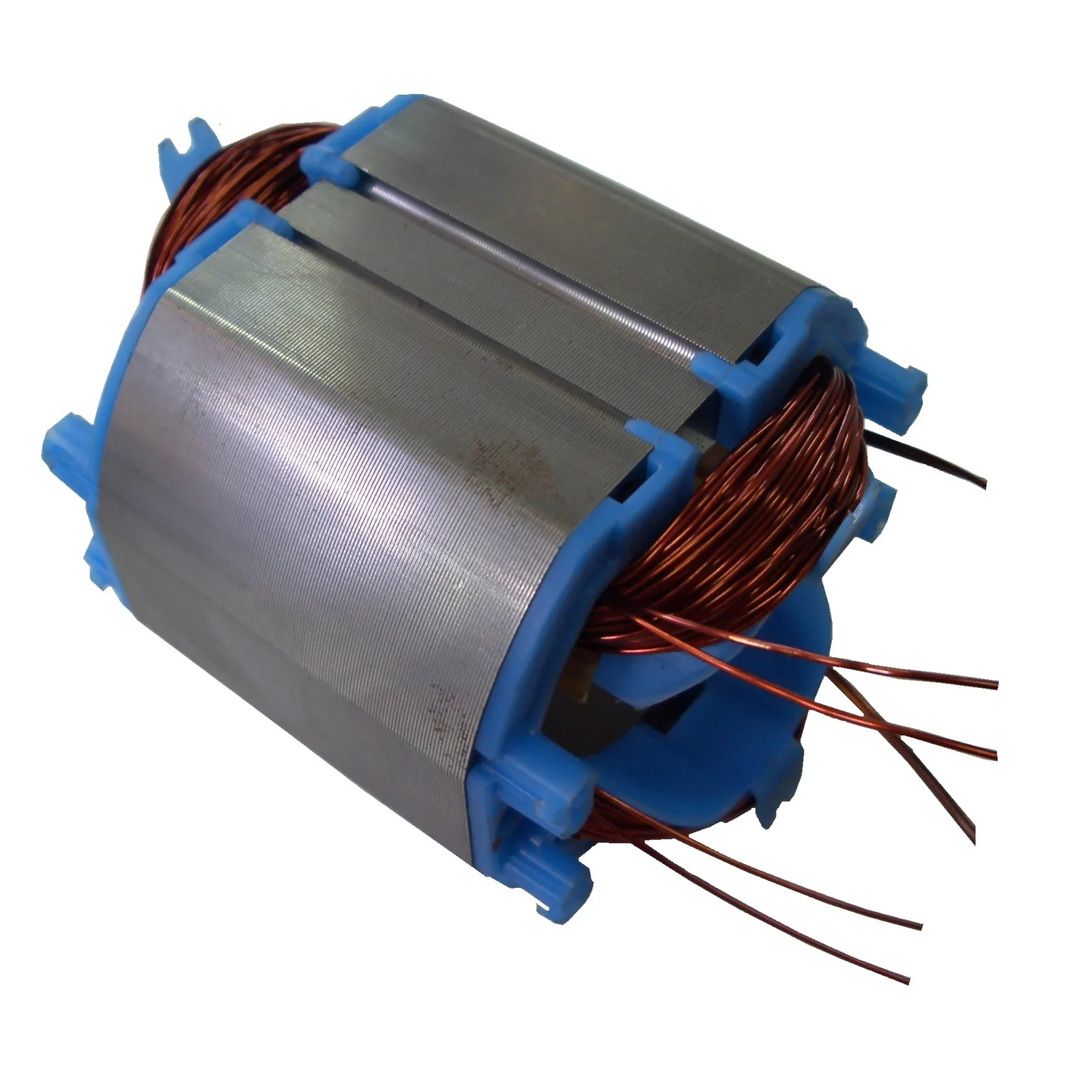

Switch between stators with and without end insulators by changing only part of the tooling.
Shared tooling: one tooling set covers different stack heights, lowering tooling cost.
Multi-stage analog tension control; servo tension control optional.
Automatic cut-and-clamp of the wire end when winding is complete.
Industrial PLC with 10" touchscreen HMI; optional remote-monitoring module.

Specifications

What this machine is rated for

Also known as 2-pole stator winding machine (dual station) · Two-station stator winder

2-Pole Stator Winding Machine (Dual Station) — Specifications
Power supply	220V (380V), 3Ø, 5 kW
Pneumatic supply	5 kg/cm²
Stator external diameter	Ø56 mm – Ø110 mm
Stator thickness	max 125 mm
Stator inside diameter	Ø32 mm – Ø75 mm
Applicable wire diameter	Ø0.3 mm – Ø1.2 mm
Winding speed (max)	180 rpm (depending on winding item)
Machine size (D x W x H)	2150 x 1300 x 1750 mm
Machine net weight	1300 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

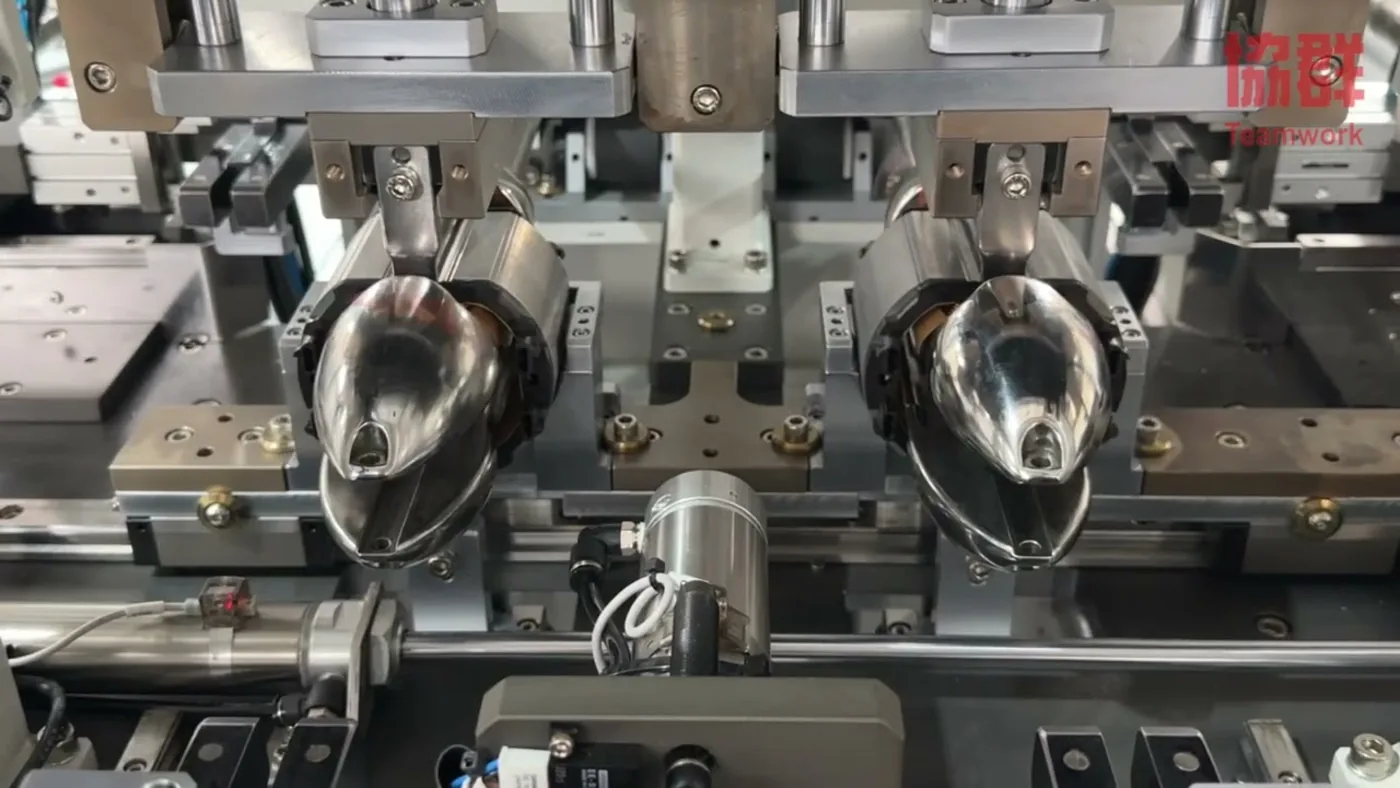

Watch this machine run
