TWM-308A

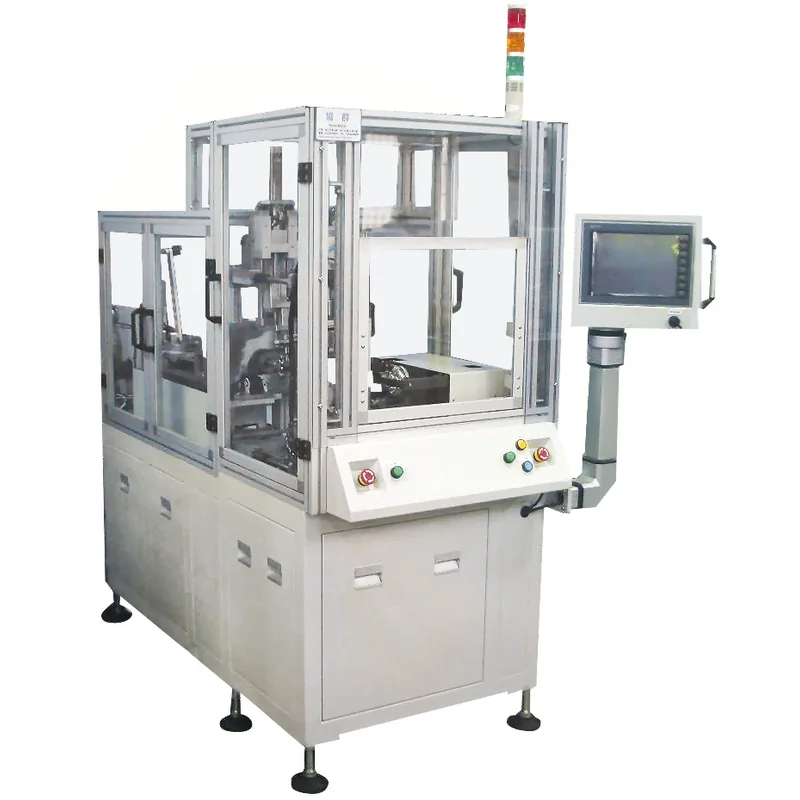

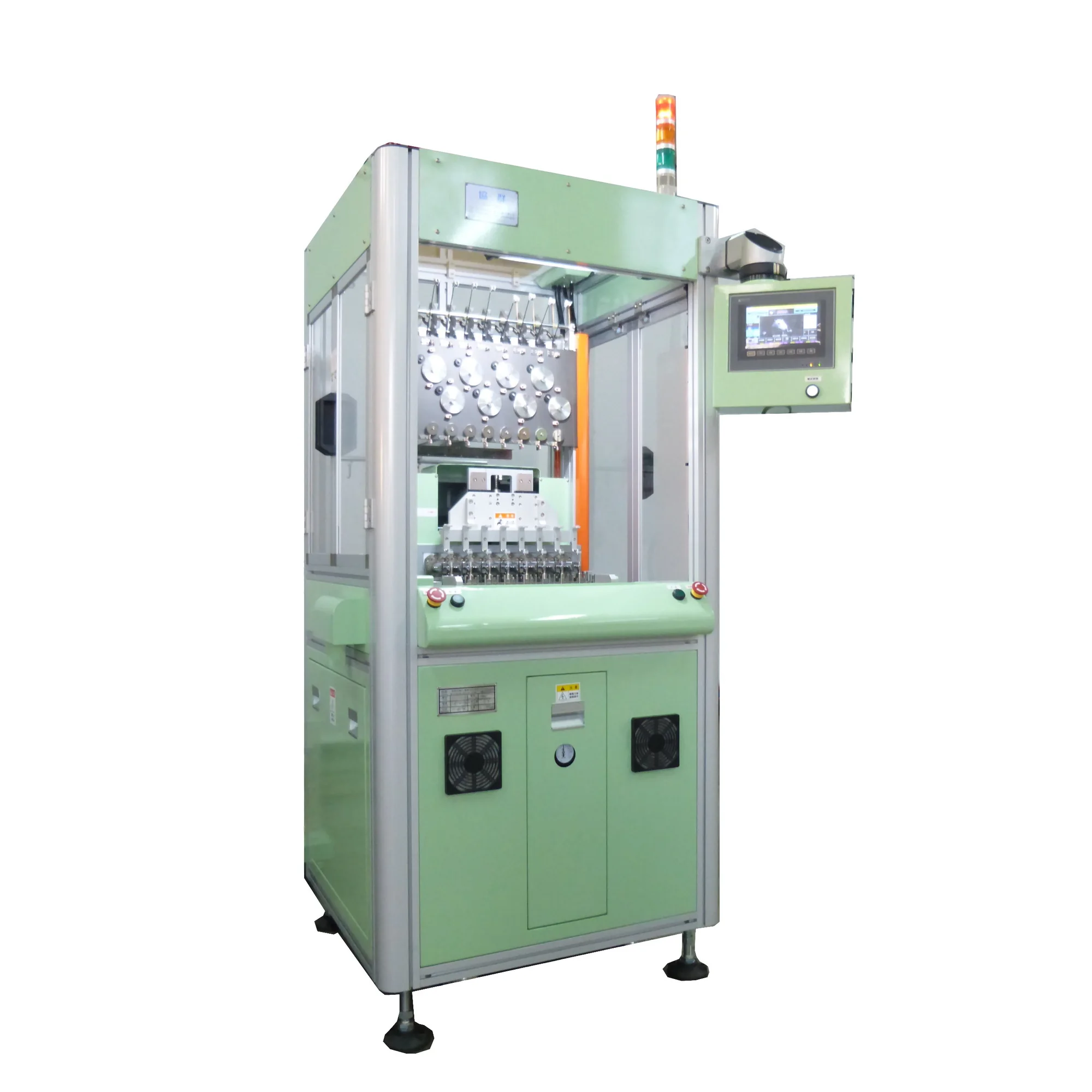

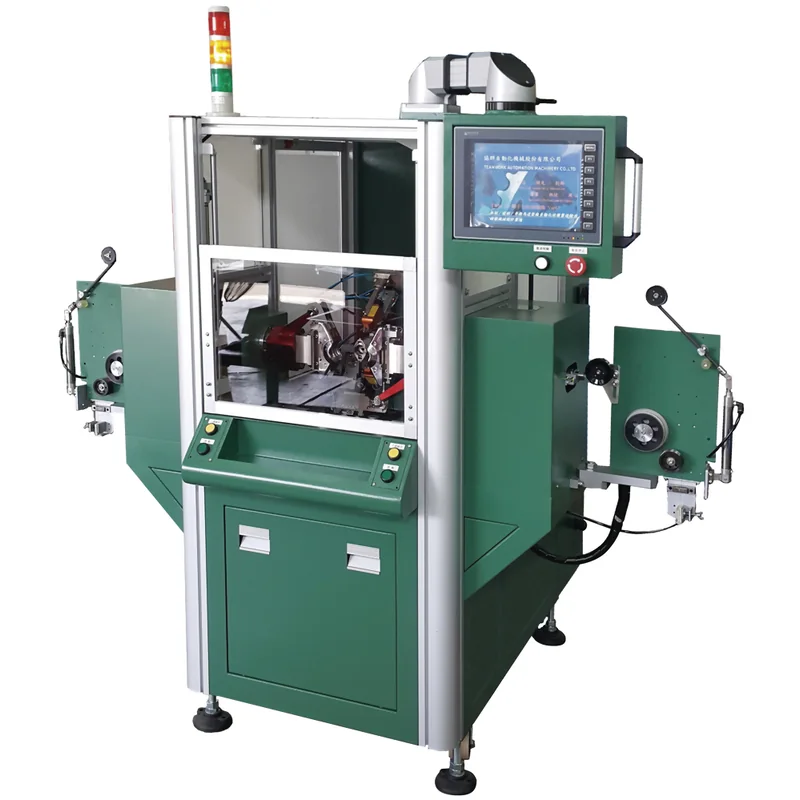

Hook-Type Armature Winding Machine (Horizontal)

TWM-308A: Hook-Type Armature Winding Machine (Horizontal), built by Teamwork Automation in Taichung, Taiwan. Also known as hook-type armature winder or horizontal armature winding machine. Standalone or line-integrated.

Category: Winding Machines
Process stage: Winding Machines
Motor types: Brushed and universal motors

Tags Winding Brushed / universal winding Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

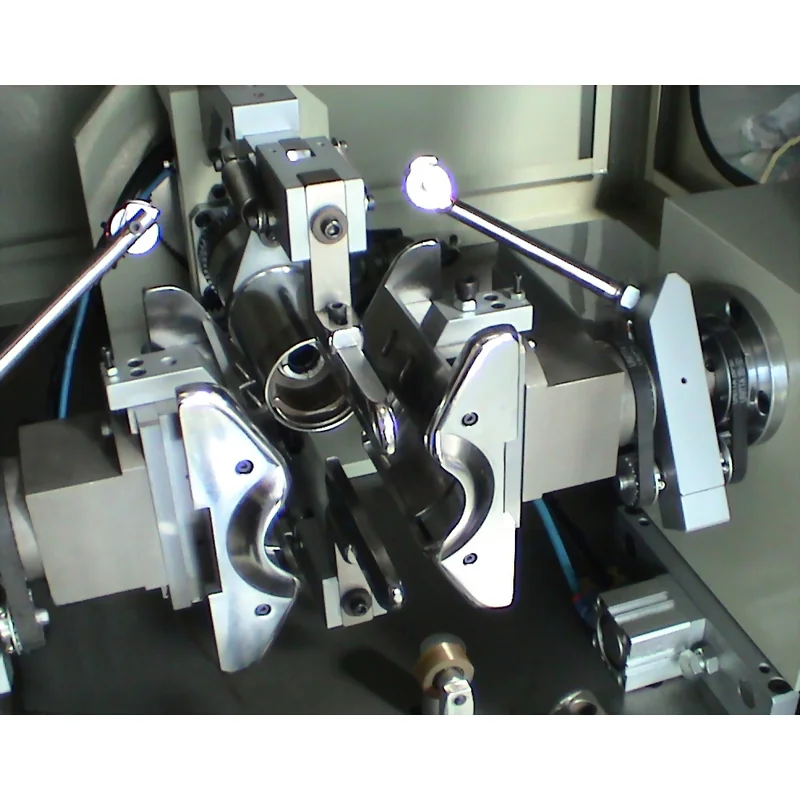

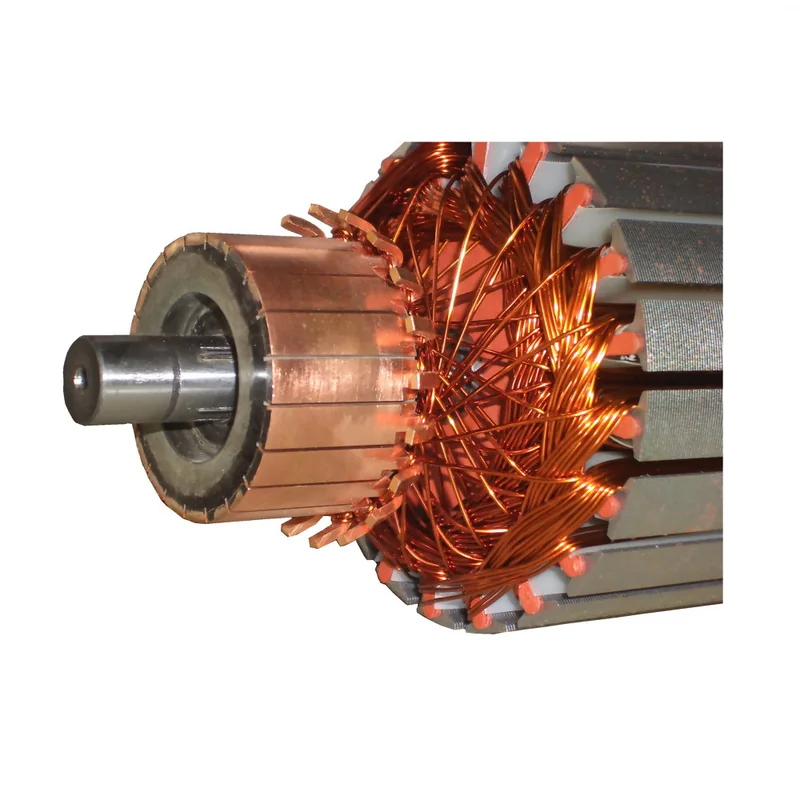

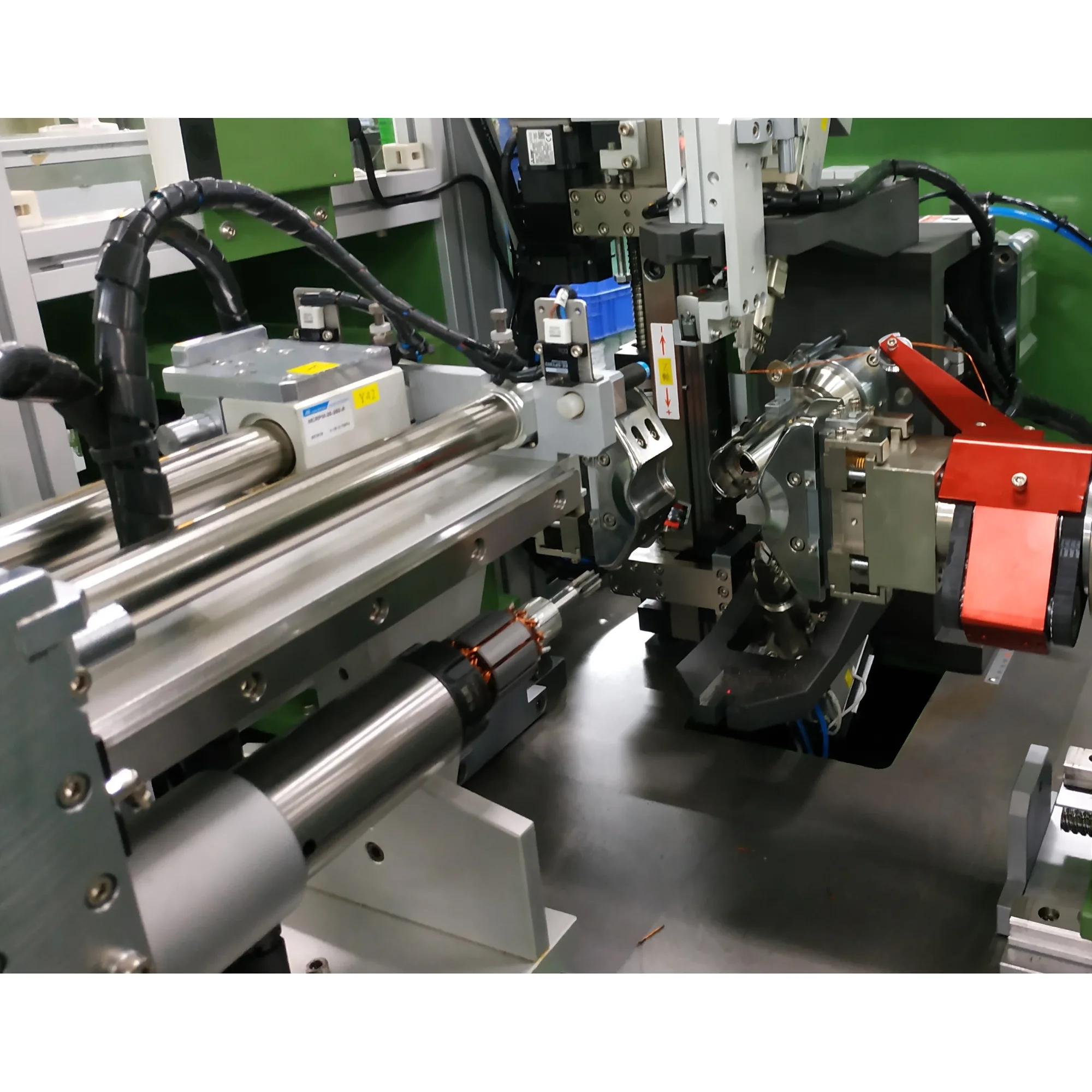

Automatic winder for hook-commutator armatures in brushed DC and universal (series-wound) motors.
Independent AC servo drive on each flyer for high-speed, accurate winding.
Servo-controlled indexing with 0.01° accuracy; hooking patterns are programmable at any angle within 360° to suit the armature.
Two lead-cutting versions: pull-and-cut (TWM-308M) and automatic cut (TWM-308A).
High-sensitivity servo tension control with multi-stage tension profiles.
Modular quick-change tooling with high repeatability.
Industrial PLC with 10" touchscreen HMI; TWM-308A is ready for robot and conveyor integration; optional remote-monitoring module.

Specifications

What this machine is rated for

Also known as Hook-type armature winder · Horizontal armature winding machine

Hook-Type Armature Winding Machine (Horizontal) — Specifications
Power supply	220V, 3Ø
Pneumatic supply	5 kg/cm²
Rotor OD	Ø24 mm – Ø55 mm / Ø55 mm – Ø85 mm
Commutator OD	Ø15 mm – Ø55 mm
Core thickness	< 120 mm
Applicable wire diameter	0.2 mm – 1.2 mm
Winding speed (max)	3000 rpm (depending on winding item)
Machine size (D x W x H)	1335 x 1200 x 1630 mm
Machine net weight	750 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

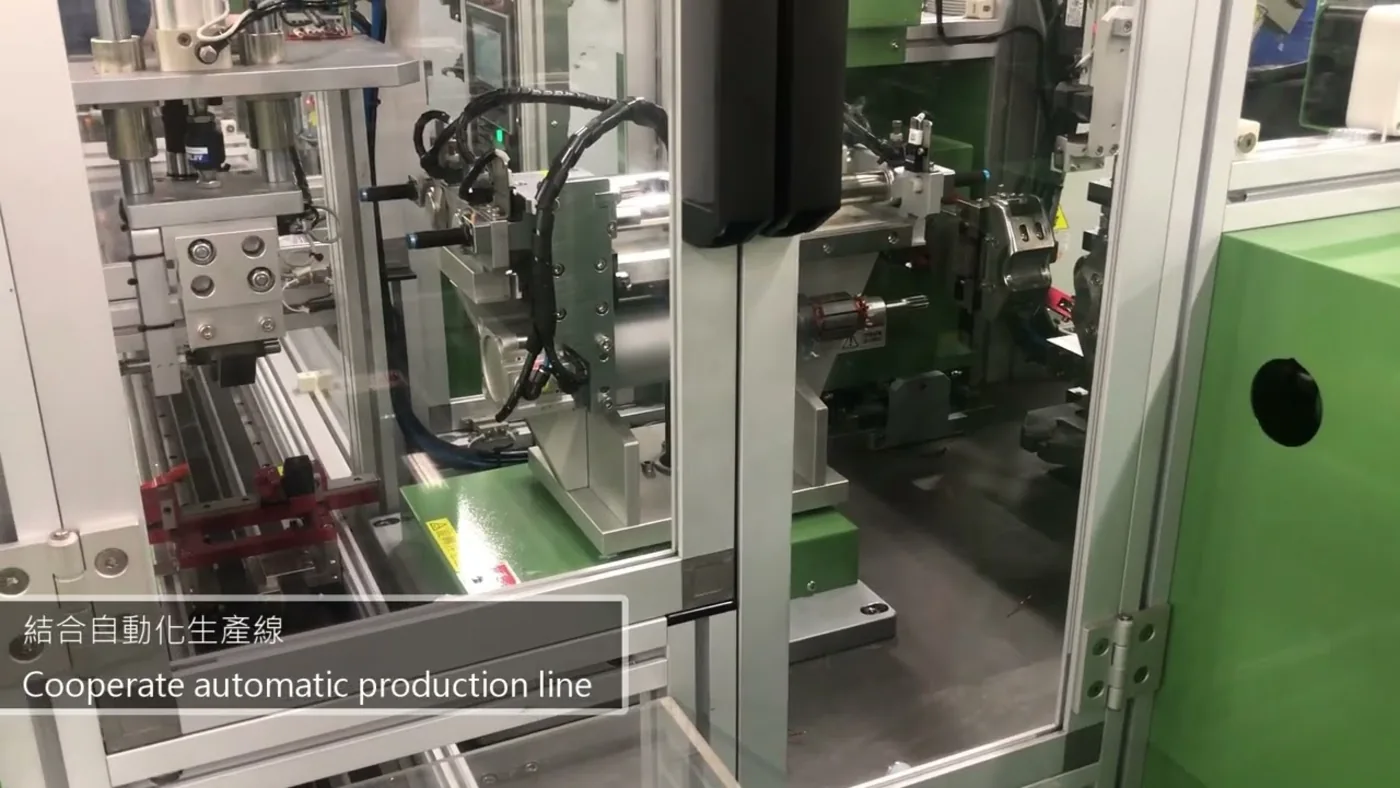

Watch this machine run
