TWM-WB001

Automatic Multi-Axes Coil Winding Machine

TWM-WB001 is a automatic multi-axes coil winding machine built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Process stage
Winding Machines
Motor types
Brushed, brushless and universal motors
Tags Coil windingWindingStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Applicable for all types of rotary coil automatic winding.
  • We use multiple AC servo motor to control. Max. 16 axes winding at the same time and capable of auto clamping function.
  • According to product demand, this equipment can be connected to the following module:
  • 1. Auto fine thread twisting module
  • 2. Auto copper wire coating remove and dust collect module.
  • 3. Auto labelling on finish product module
  • 4. Thread head and end auto cutting module
  • Modular tooling positions rapidly with high repeatability, cutting changeover time on model changes.
  • Tension system is adopting high sensitive servo tension controller. It can produce several tension controls when winding which optimize tension adjustment performance in each winding operation stage.
  • The control system adopts Industrial PLC with an HMI touch panel; operation status and running-monitor data are displayed in real time.
  • TMW-WB001 can be connected with a robotic arm and a conveyor belt to achieve fully automatic production line.

Specifications

What this machine is rated for

Power supply 220V / 380V, 3Ø
Pneumatic supply 5 kg/cm²
Winding speed 2000 rpm (depending on winding item)
Machine size (D x W x H) 880 x 650 x 1660 mm
Machine net weight 200 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

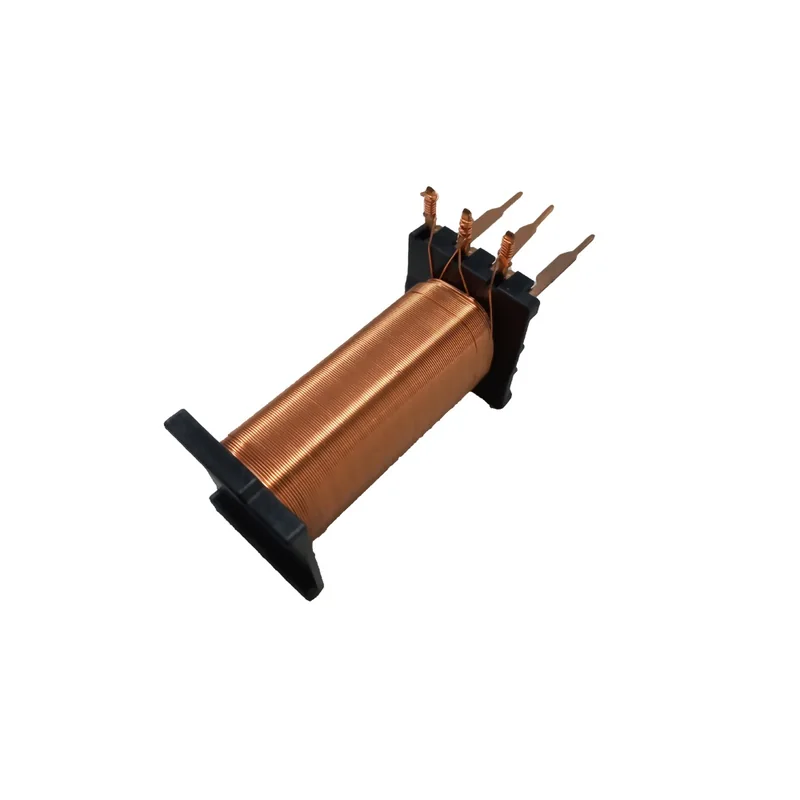

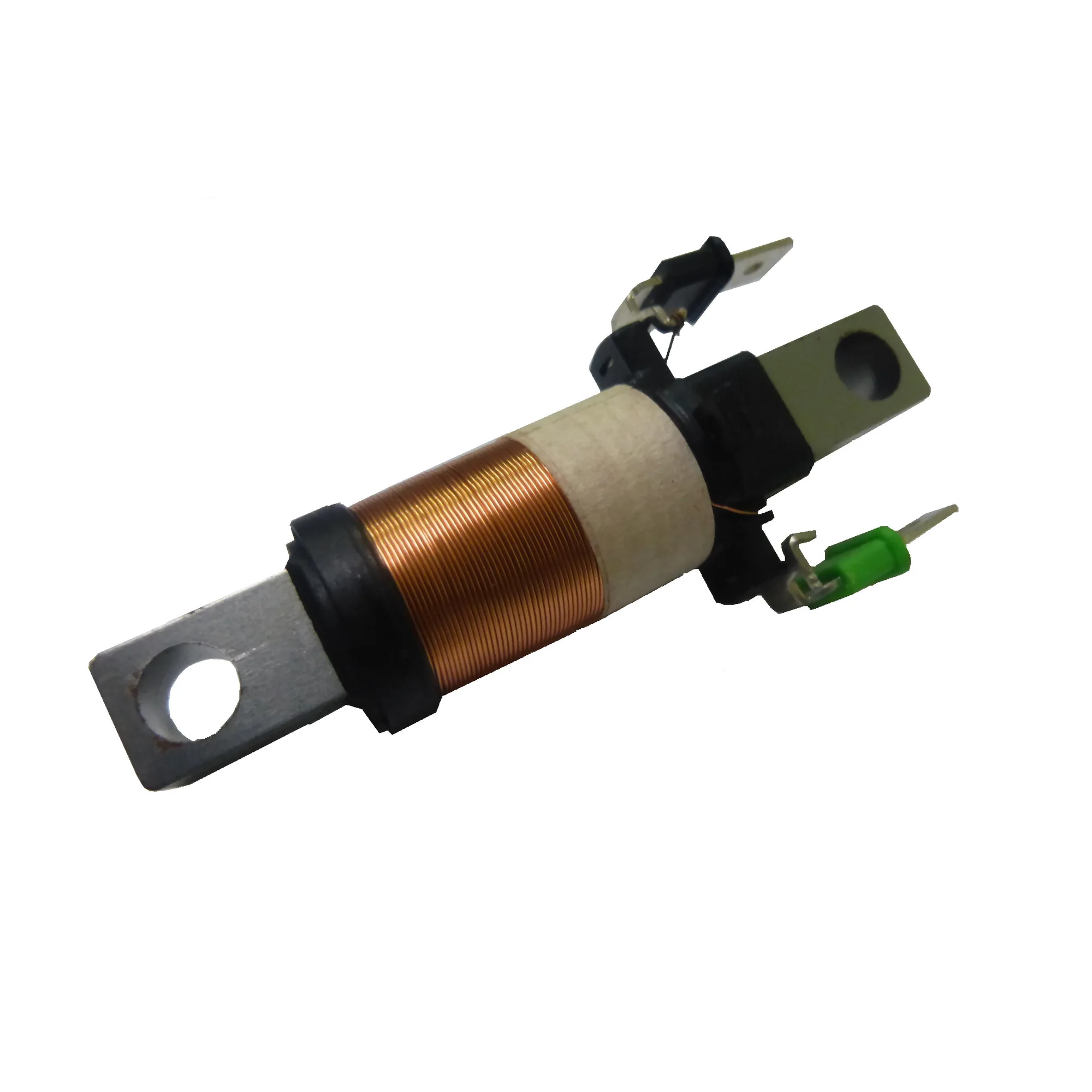

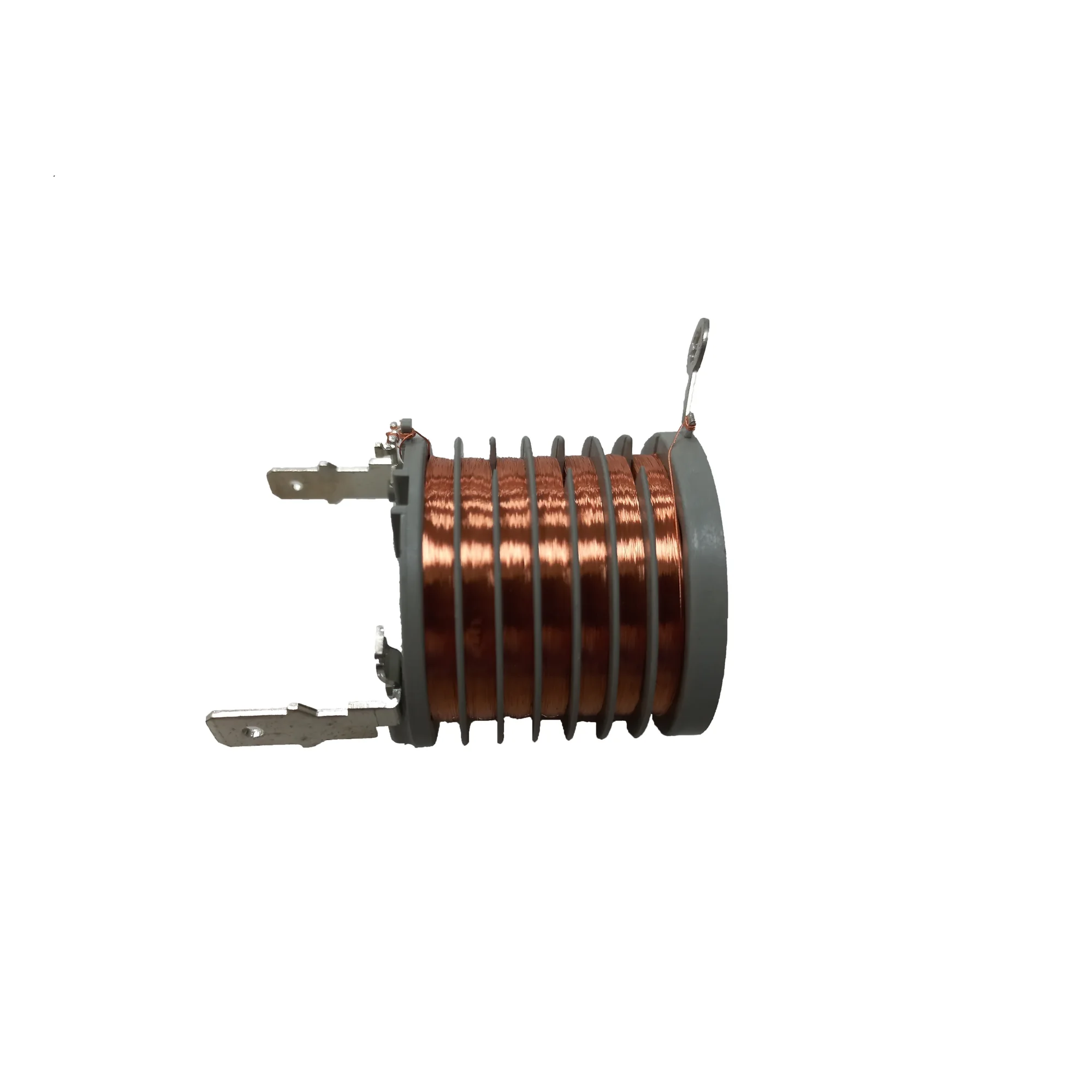

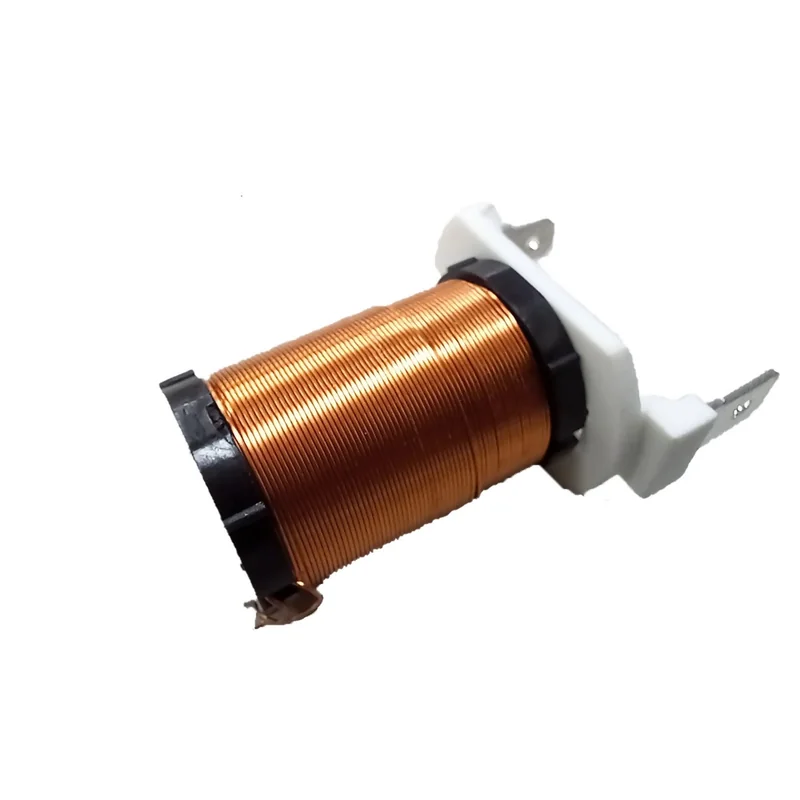

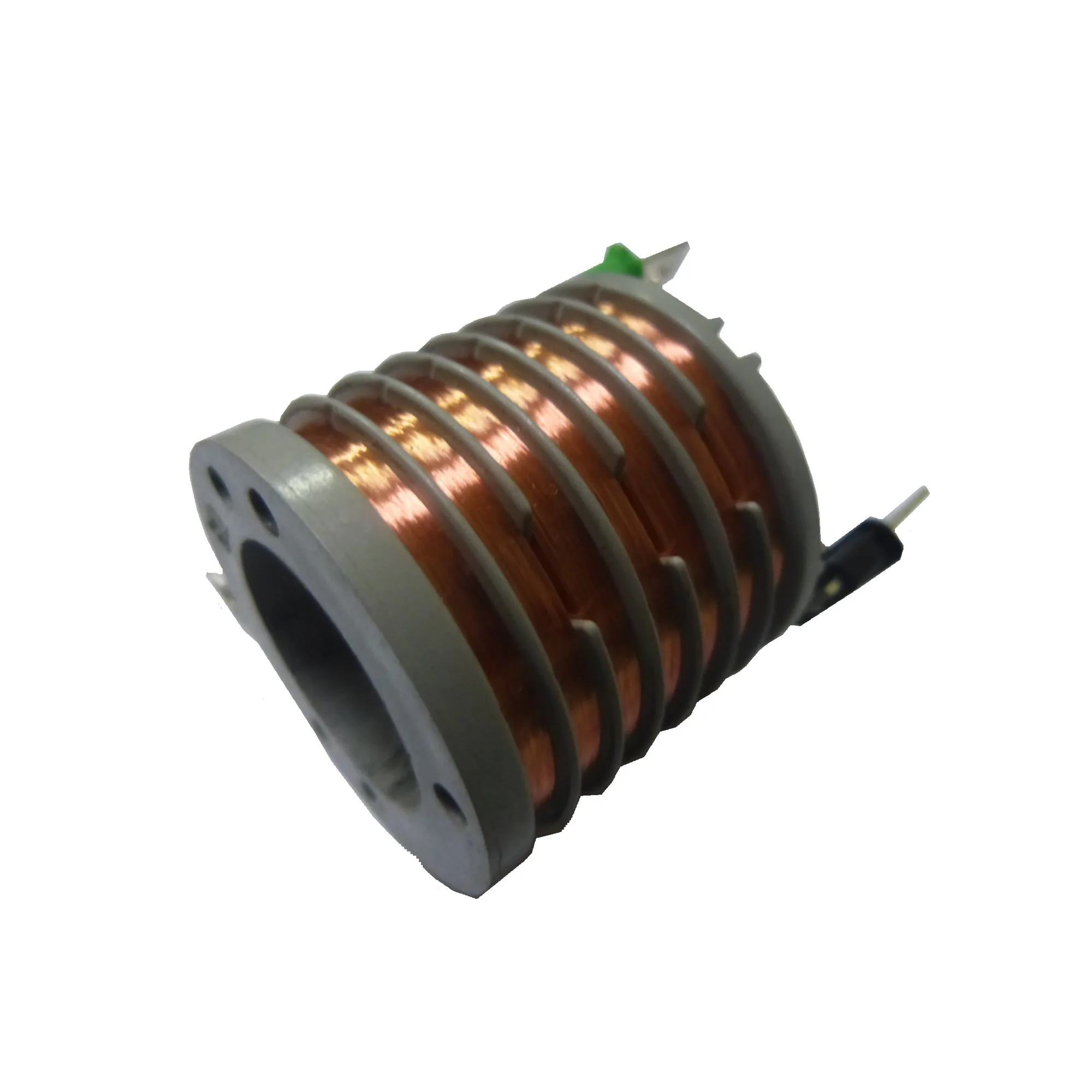

TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine

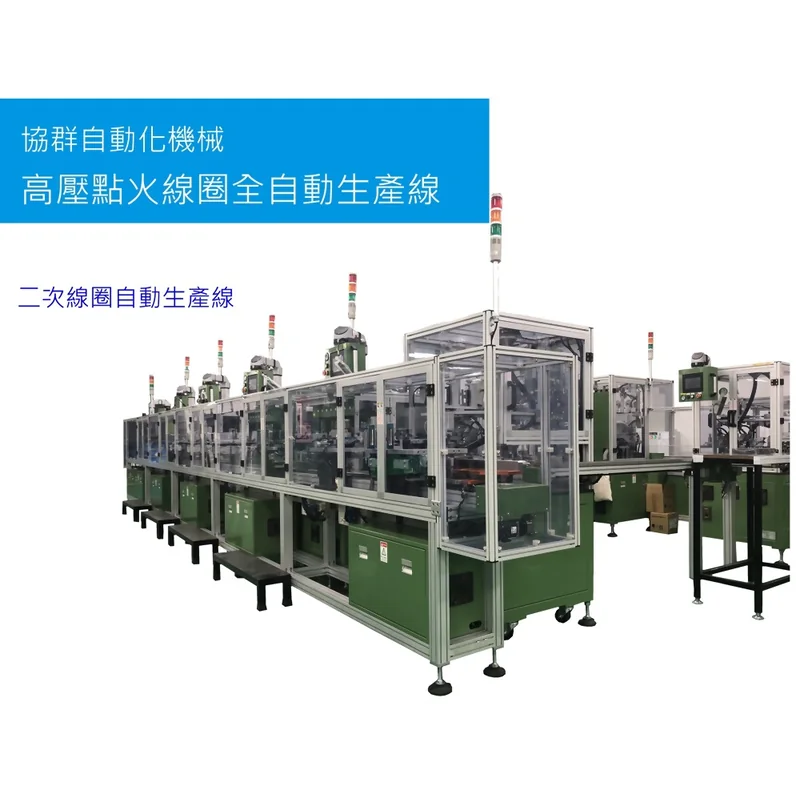

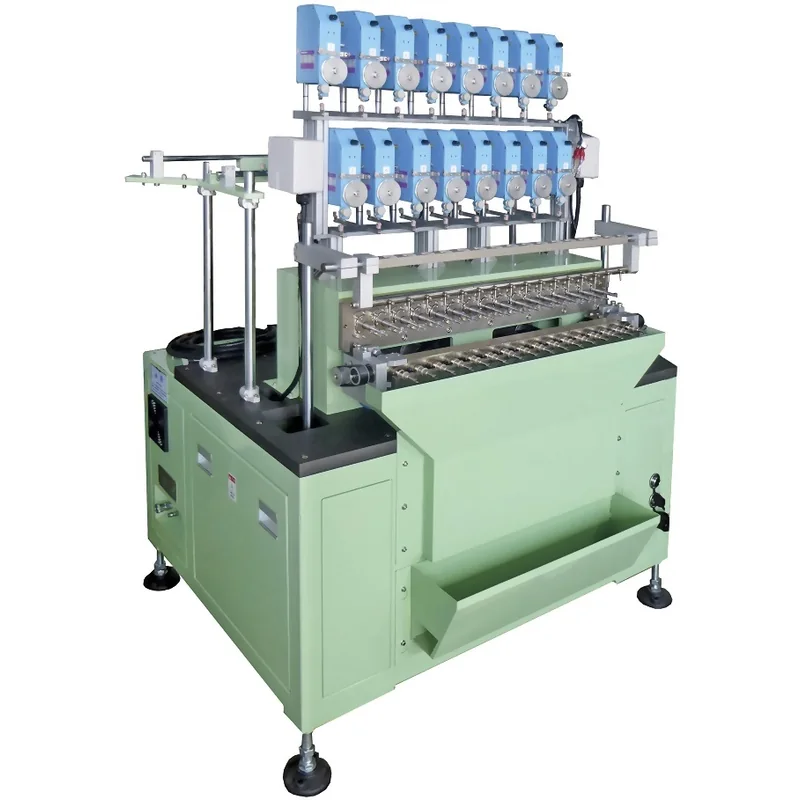

TWM-WB001 Automatic Multi-axes Coil Winding Machine in operation
TWM-WB001 Automatic Multi-axes Coil Winding Machine in operation
TWM-WB001 Automatic Multi-axes Coil Winding Machine in operation

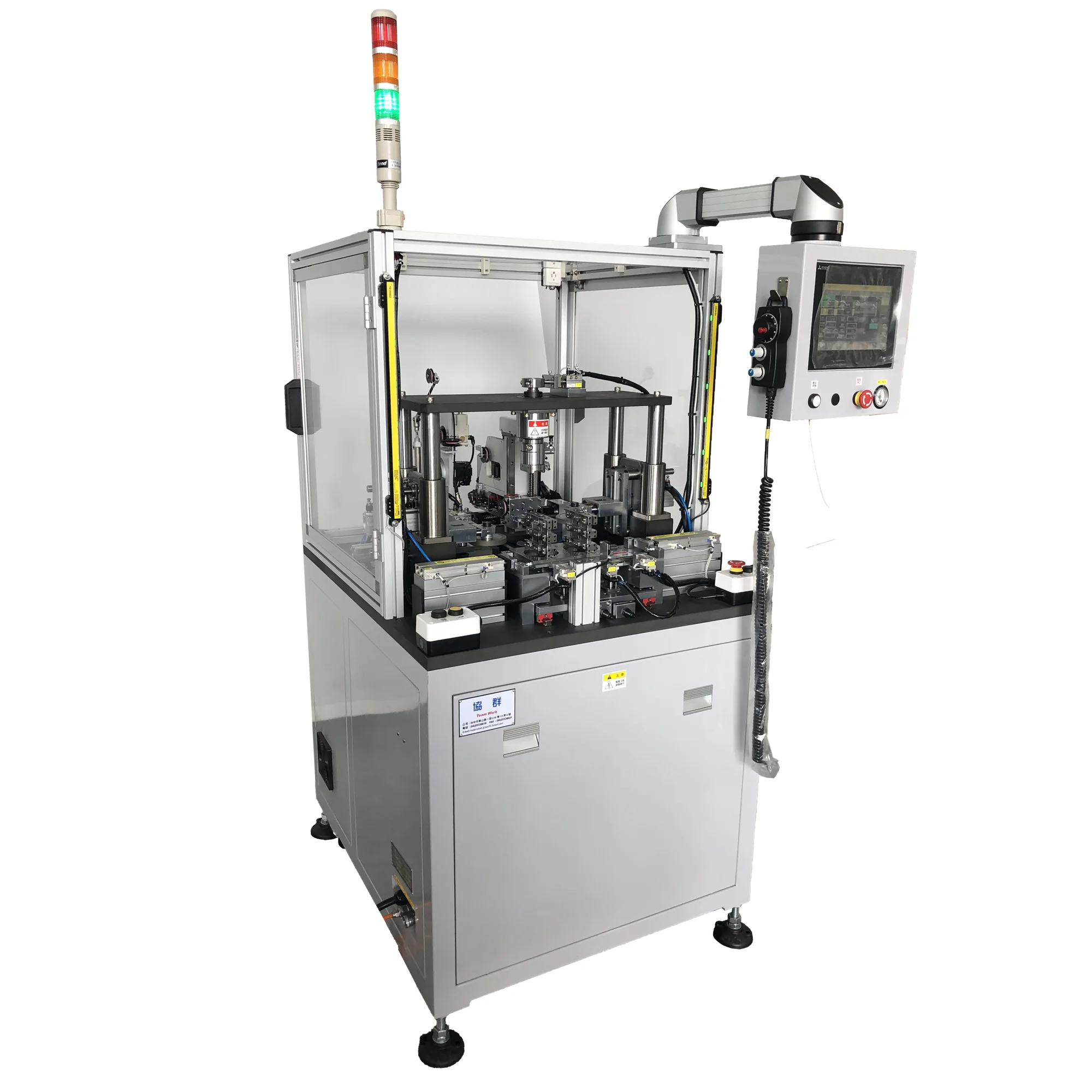

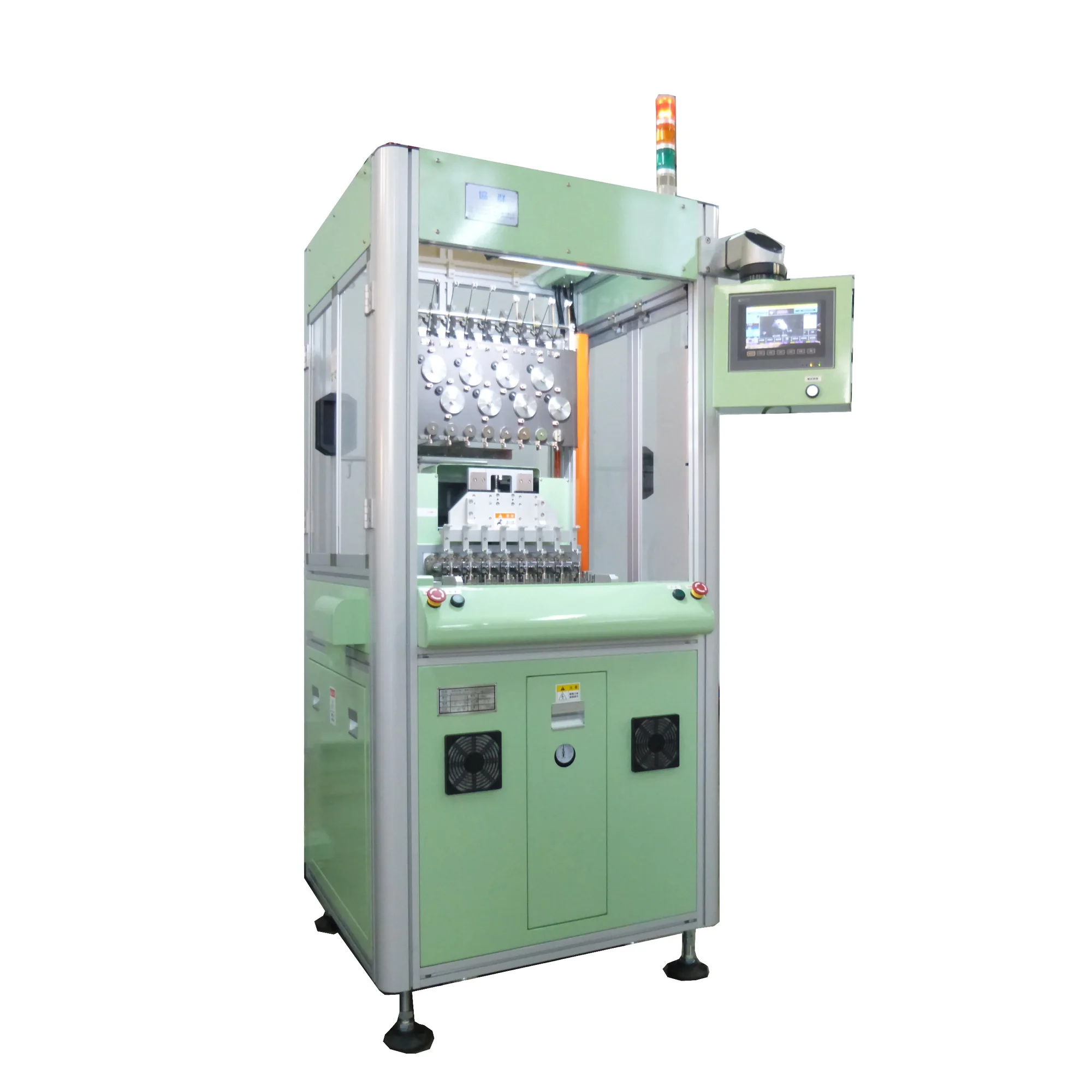

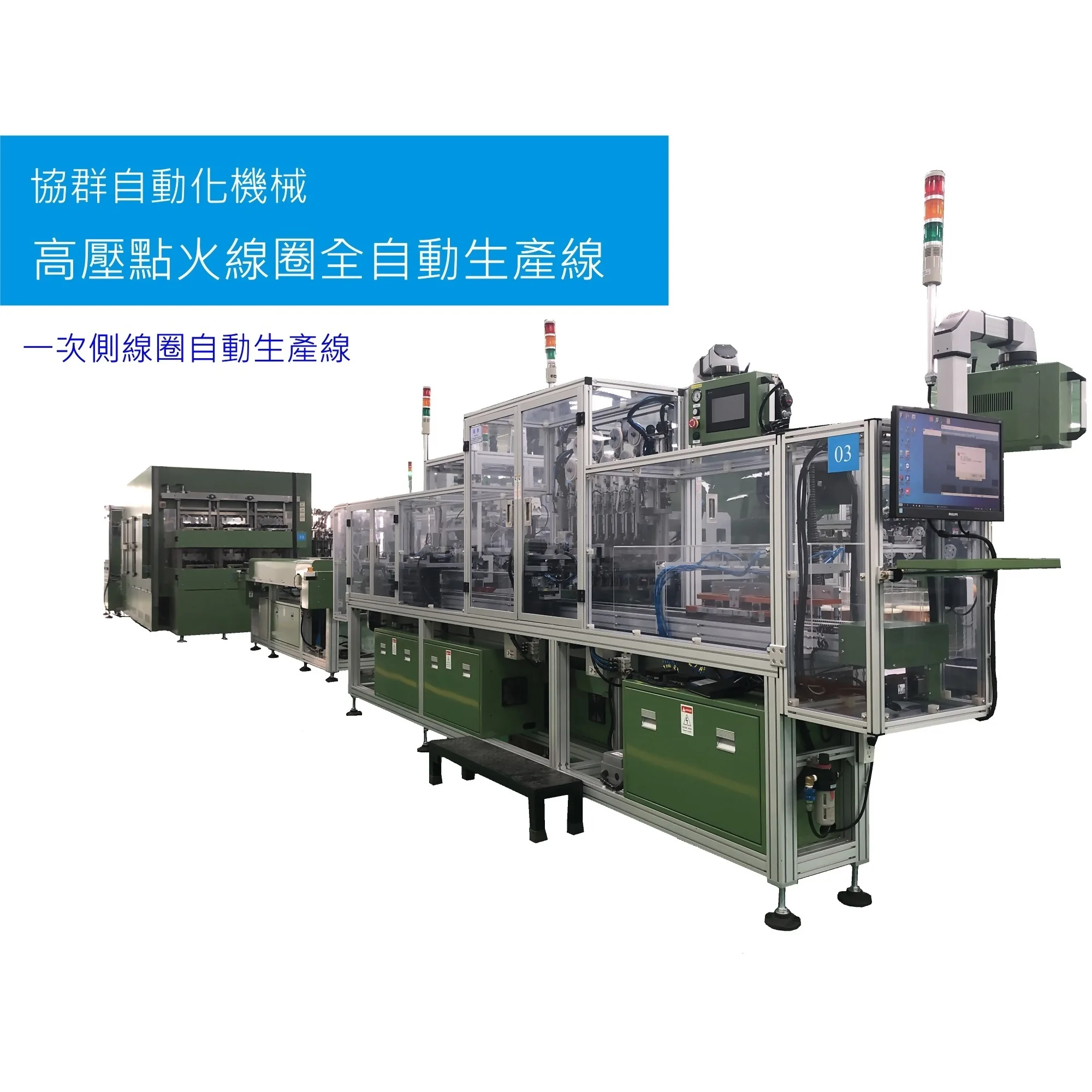

TWM-WB001 Automatic Multi-axes Coil Winding Machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine in operation
TWM-WB001 Automatic Multi-axes Coil Winding Machine in operation
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
TWM-WB001 Automatic Multi-axes Coil Winding Machine - finished part produced on this machine
