TWM-917

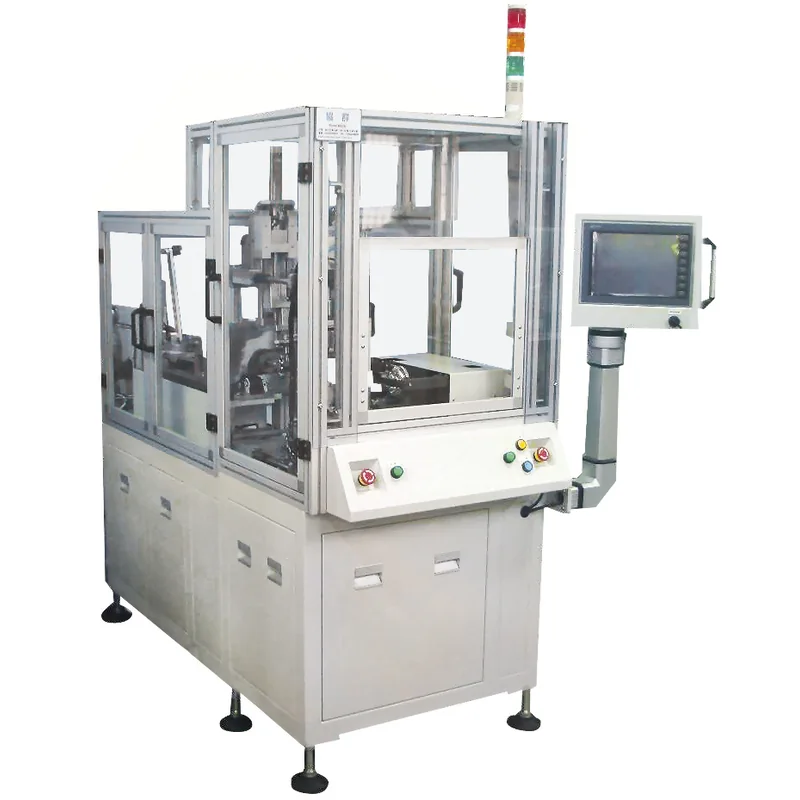

Air Coil Winding Machine

TWM-917 is a air coil winding machine built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Process stage
Winding Machines
Motor types
Brushed, brushless and universal motors
Tags Coil windingWindingStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Applicable to automatic winding for air coil.
  • This model with 2-axes independent AC servo motor applied to drive flyers and wire spreading core for high speed accurate and precise coil winding.
  • Modular molds and dies design, it is able to deliver rapid positioning with high repeatability, cutting the time required for die changeovers.
  • Dies are shared across the series, keeping tooling development costs low.
  • The analog tension output control system provides tension for different coil winding stages and increases quality level of product.
  • Industrial PLC with an HMI touch panel shows operation status and running-monitor data in real time.
  • It is able to equip with remote monitoring module to do remote program monitoring safeguard.

Specifications

What this machine is rated for

Power supply 220V (380V), 3Ø
Pneumatic supply 5 kg/cm²
Winding speed 2000 rpm (depending on winding item)
Machine size (D x W x H) 880 x 650 x 1660 mm
Machine net weight 200 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

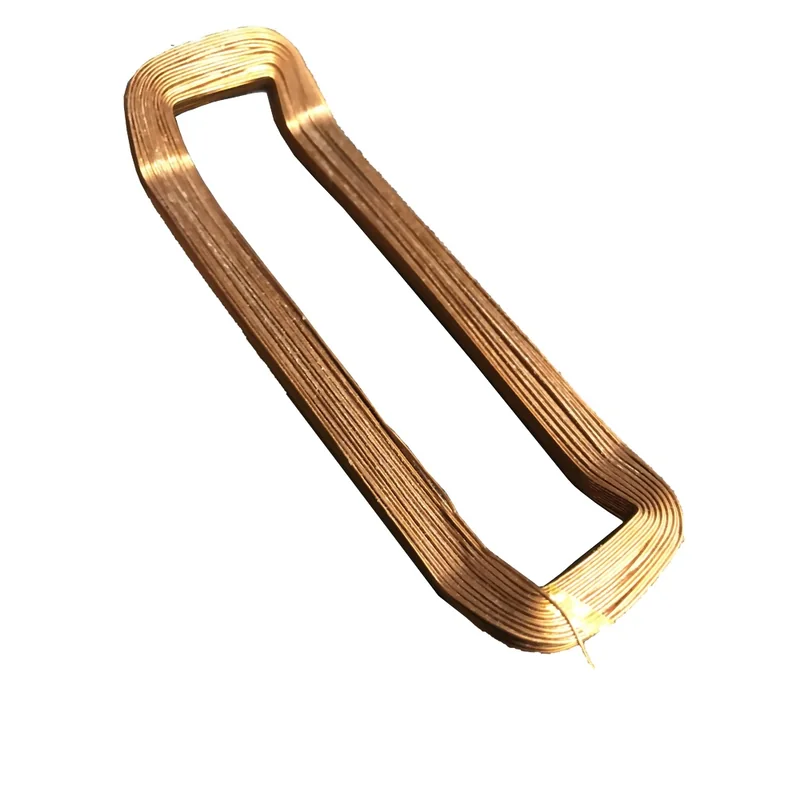

TWM-917 Air Coil Winding Machine - finished part produced on this machine
TWM-917 Air Coil Winding Machine - finished part produced on this machine
TWM-917 Air Coil Winding Machine - finished part produced on this machine

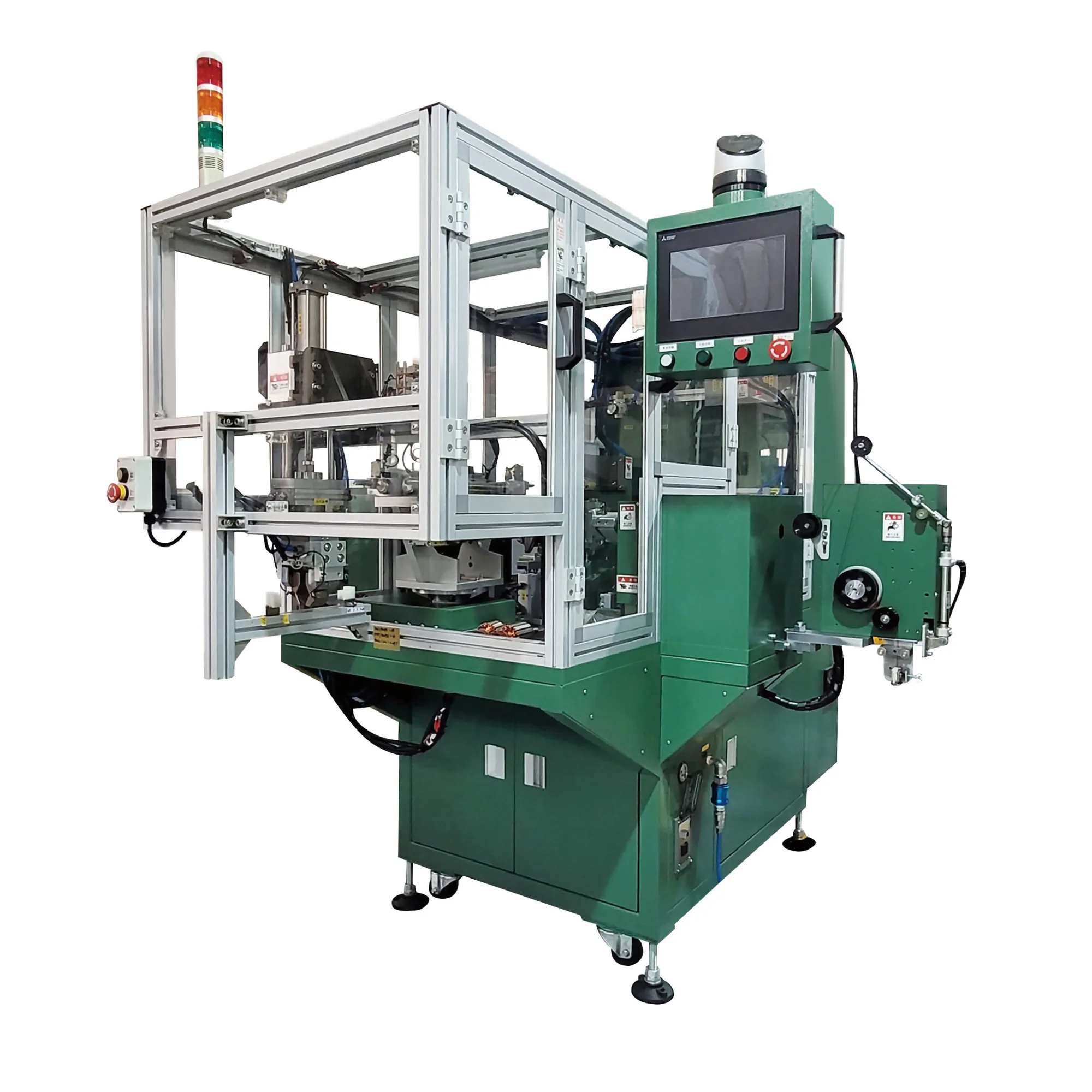

TWM-917 Air Coil Winding Machine

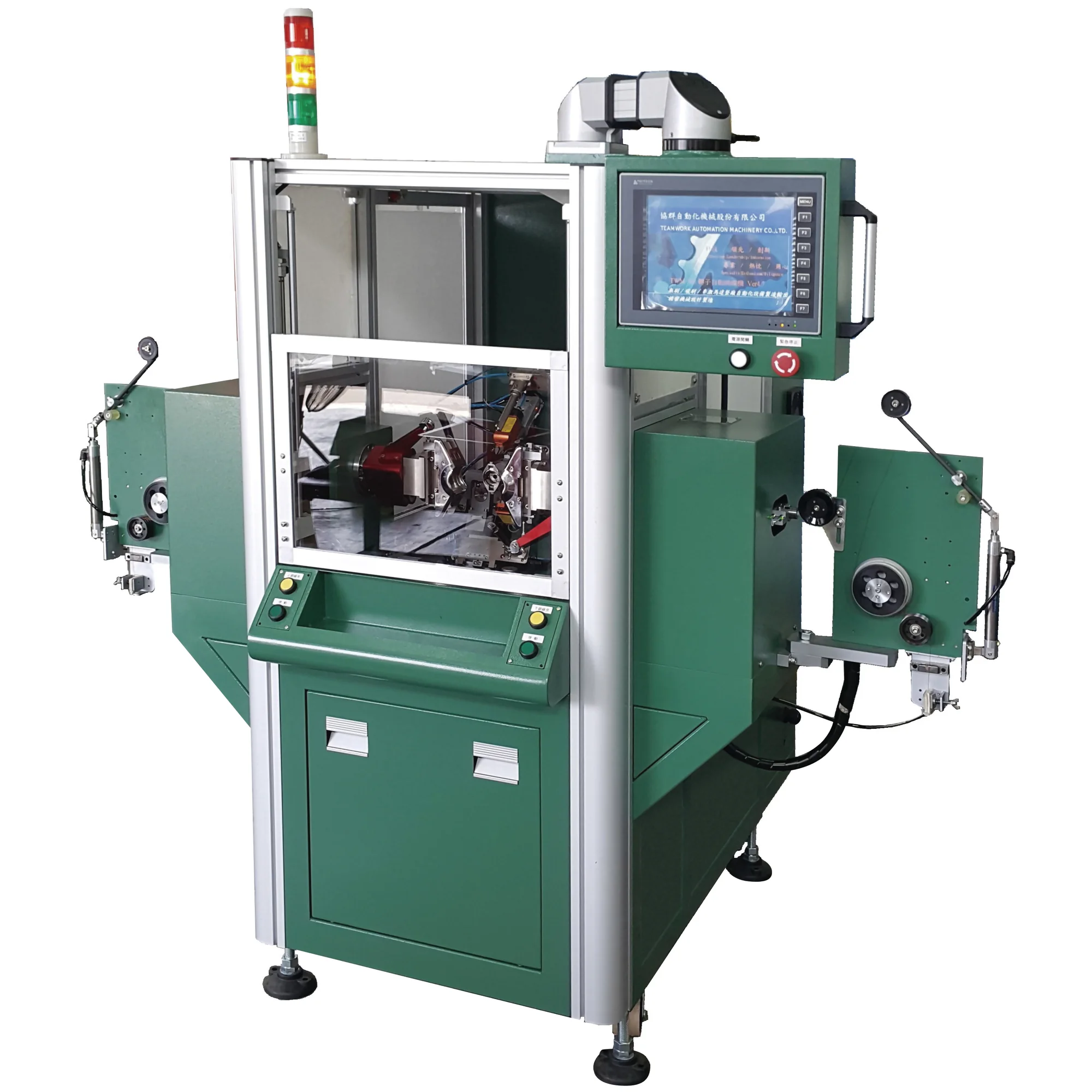

TWM-917 Air Coil Winding Machine

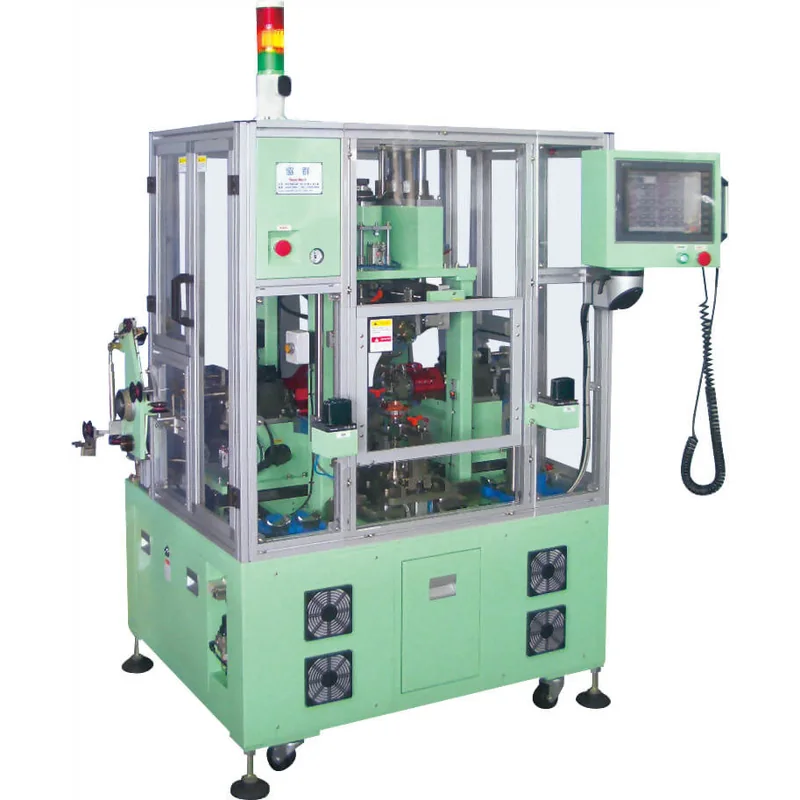

TWM-917 Air Coil Winding Machine

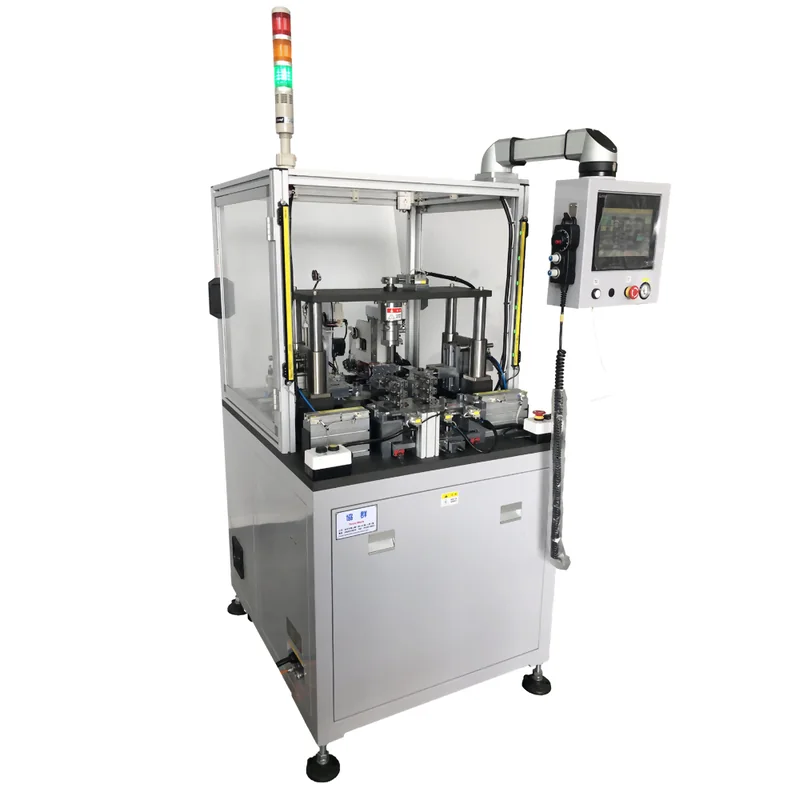

TWM-917 Air Coil Winding Machine in operation

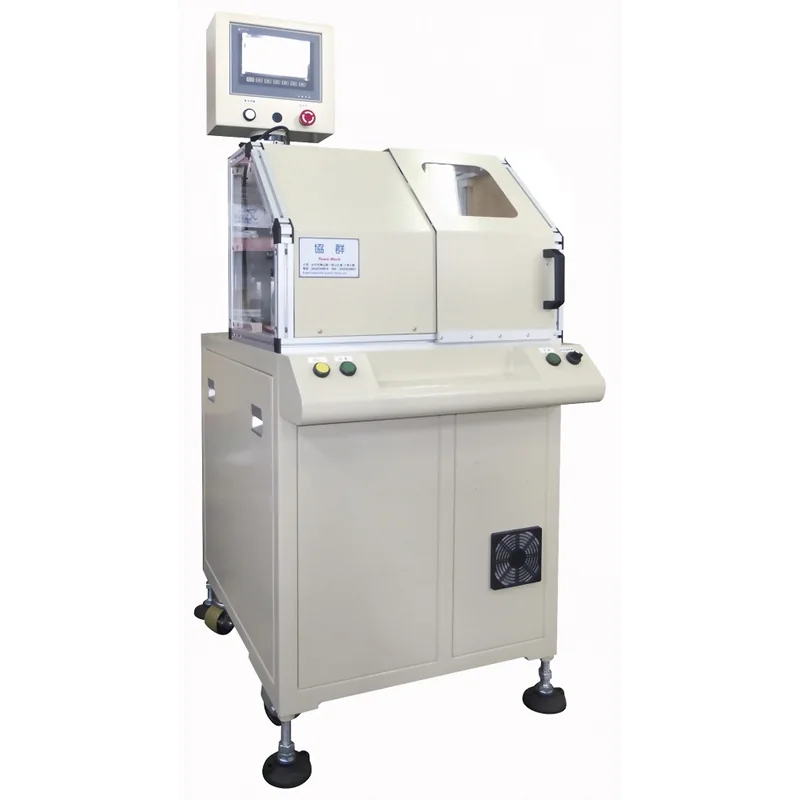

TWM-917 Air Coil Winding Machine in operation
TWM-917 Air Coil Winding Machine
TWM-917 Air Coil Winding Machine
TWM-917 Air Coil Winding Machine

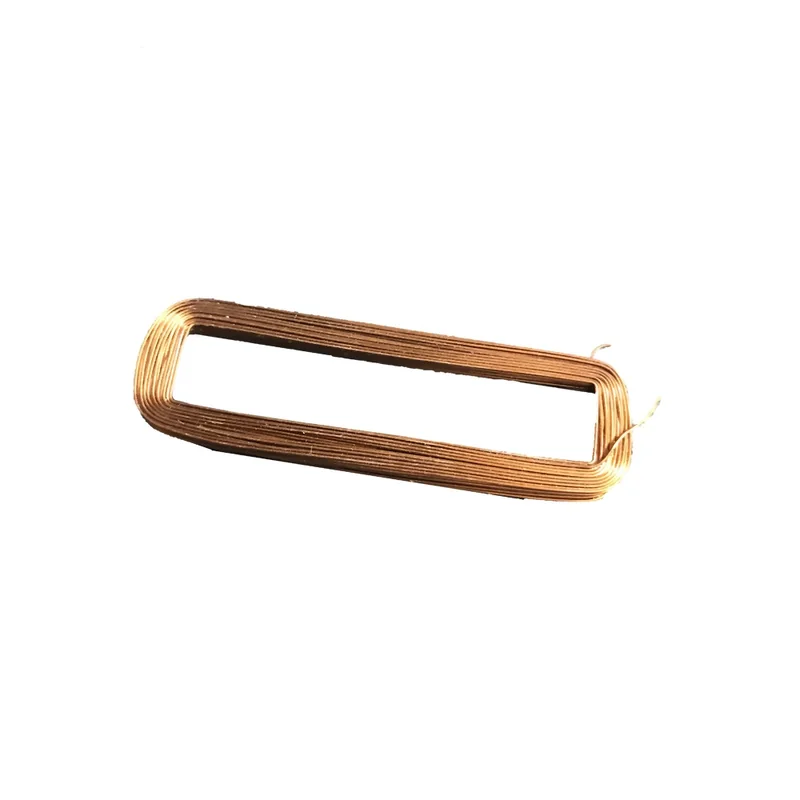

TWM-917 Air Coil Winding Machine - finished part produced on this machine
