Turning Machine for Armature Outer Diameter of Commutator

TWM-319A is a turning machine for armature outer diameter of commutator built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Category: Rotor & Armature Equipment
Process stage: Rotor & Armature Equipment
Motor types: Brushed and universal motors

Tags Turning Commutator Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

1. Operation Ineterface:
Adopt with digitalize interface design. According to equipped tool holder and function setting, forwarder/reverse turning direction can be selected freely. Vertical and horizontal feed and tool holder function setting which can save up to 100 sets of parameters, allowing user to access various parameters more quickly when changing models which greatly reducing the required time for model replacement.
2. Cutting Unit:
The cutting unit adopts servo system and equips with high-rigidity linear slide design to achieve stable cutting. Cutting depth adjustment and other relevant cutting positioning points setup can be quickly completed through digital parameter setting. The unit can be equipped with double-tool turning and commutator rough and fine machining in segment turning operation which greatly improve the turning accuracy and the control of roughness on surface of the finished product.
3. Rapid fixture changes:
User can rapidly change fixture and reduce model change time with sophisticated top center and fixture design. Special contact angle can keep in high cutting accuracy when armature rotates in clockwise or anti-clockwise. During cutting, the transmission contact surfaces can spray on oil lubrication can greatly reduce wear out between armature spindle and fixture which protect the armature spindle and prolong fixture’s life cycle.
4. Horizontal servo press arm transmission system:
Adopts with horizontal servo motor pulley transmission turning and controlled by digital suppression which provides stable cutting speed and ensure that the armature and fixture are contact closely and then protect armature turning and prolong fixture’s life cycle.
5. Versatile specification machine:
Rotor cleaning mechanism can be added separately, or arrange accordingly to customer’s requirements. The power output unit are available in oil pressure output, air pressure output, air-oil pressure conversion output, servo motor with ball screw feed power output and other machines for customer to choose from. In this product series, we have commutator outer diameter turning machine, silicon steel plate outer diameter turning and armature cleaning 3 in 1 mechanism. Connect with robotic arm and conveyor belt to achieve unmanned automatic production line.

Specifications

What this machine is rated for

Workpiece: brushed / DC / universal motor armatures with commutator
Operations: precision turning of commutator OD and armature OD
Drive: servo-driven cutting feed
Tolerance: engineered per project - typical machining precision applies
Automation: standalone or in-line as a turning station

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

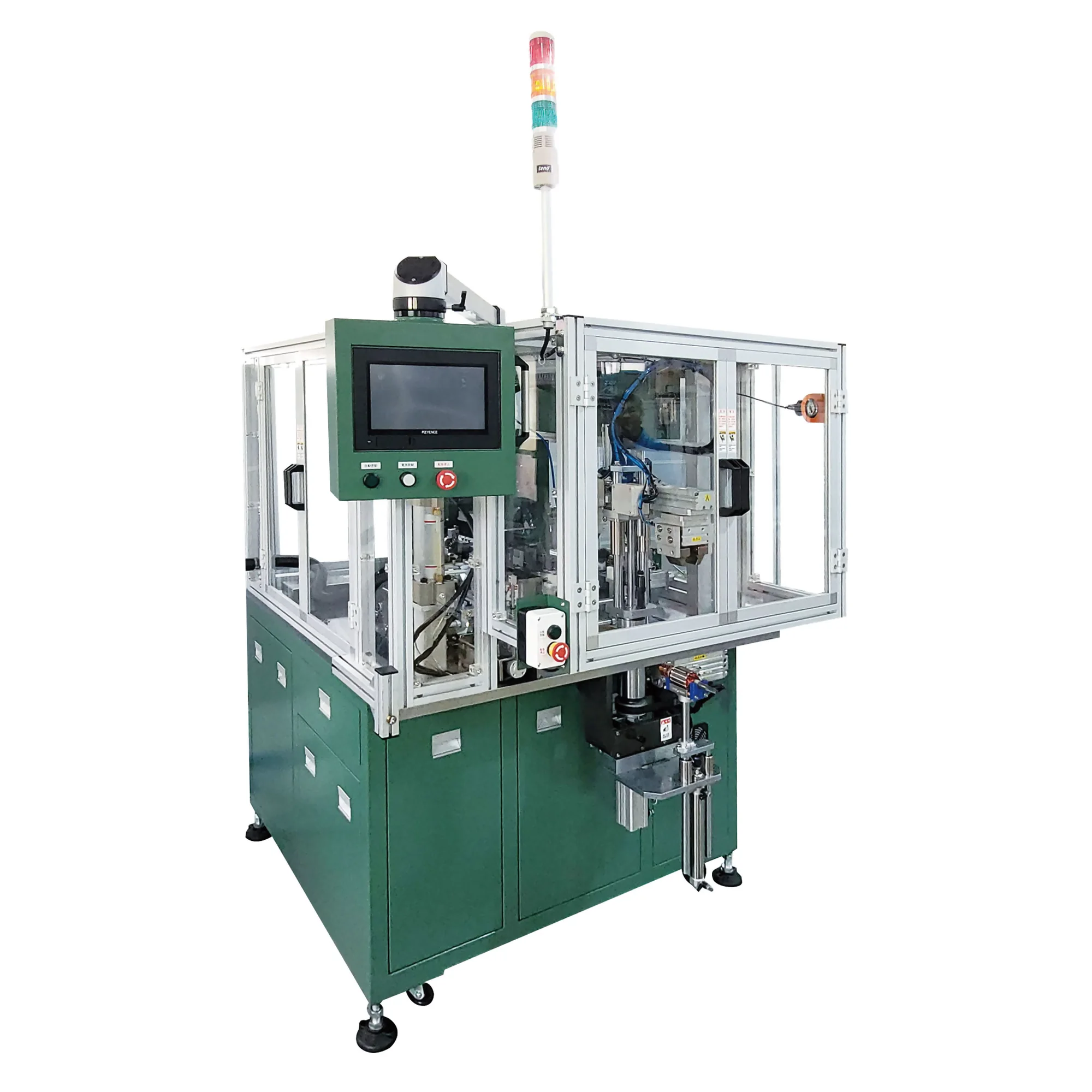

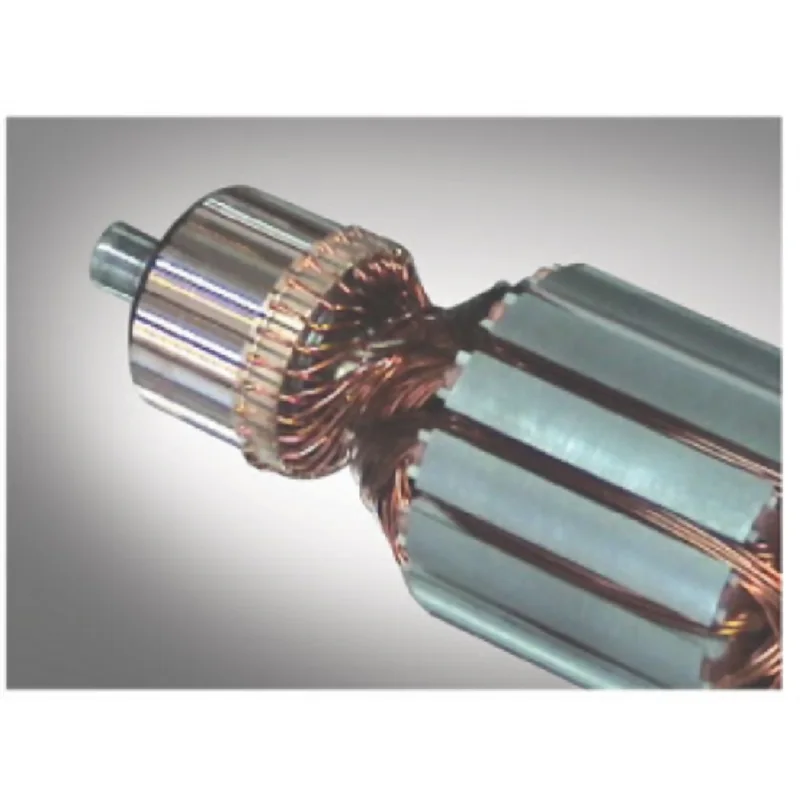

TWM-319A Turning Machine for armature outer diameter of commutator - finished part produced on this machine
