TWM-308A

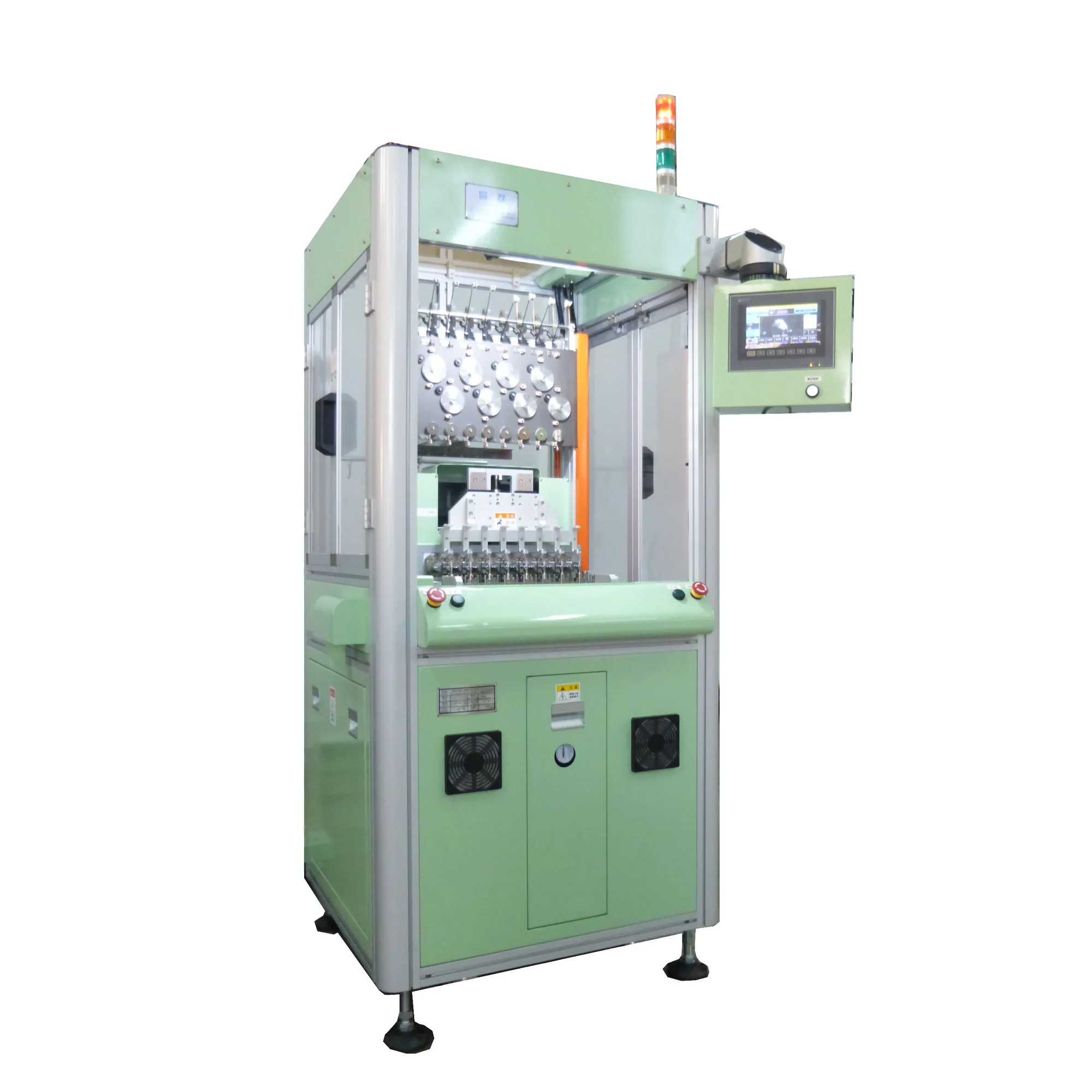

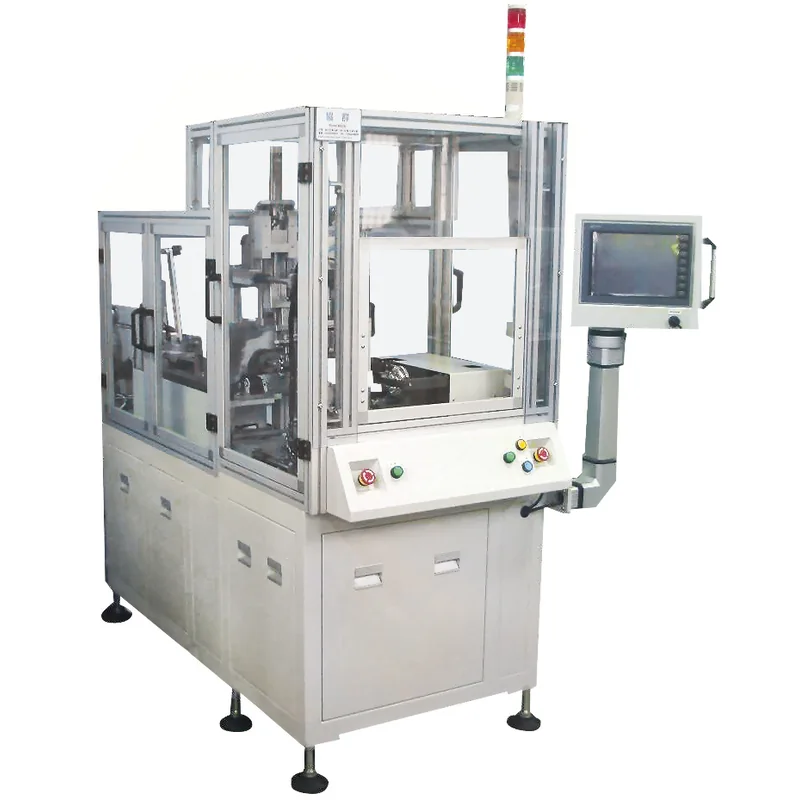

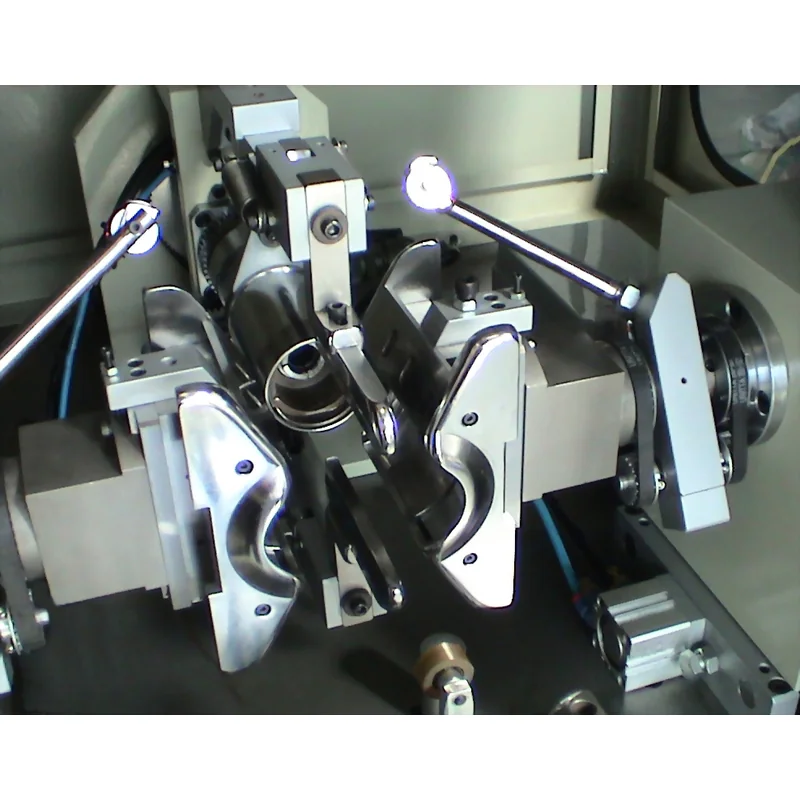

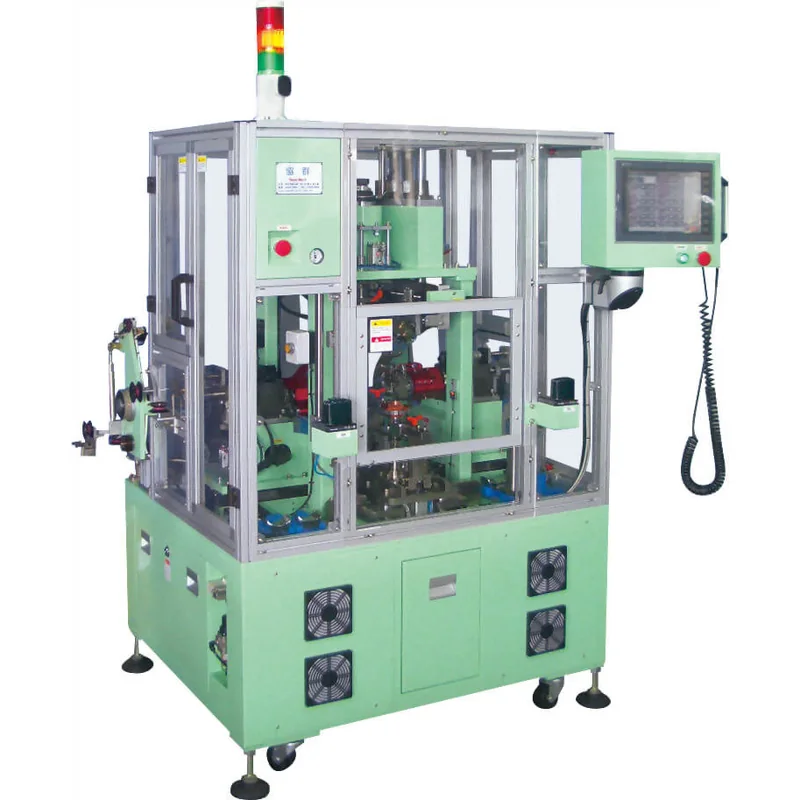

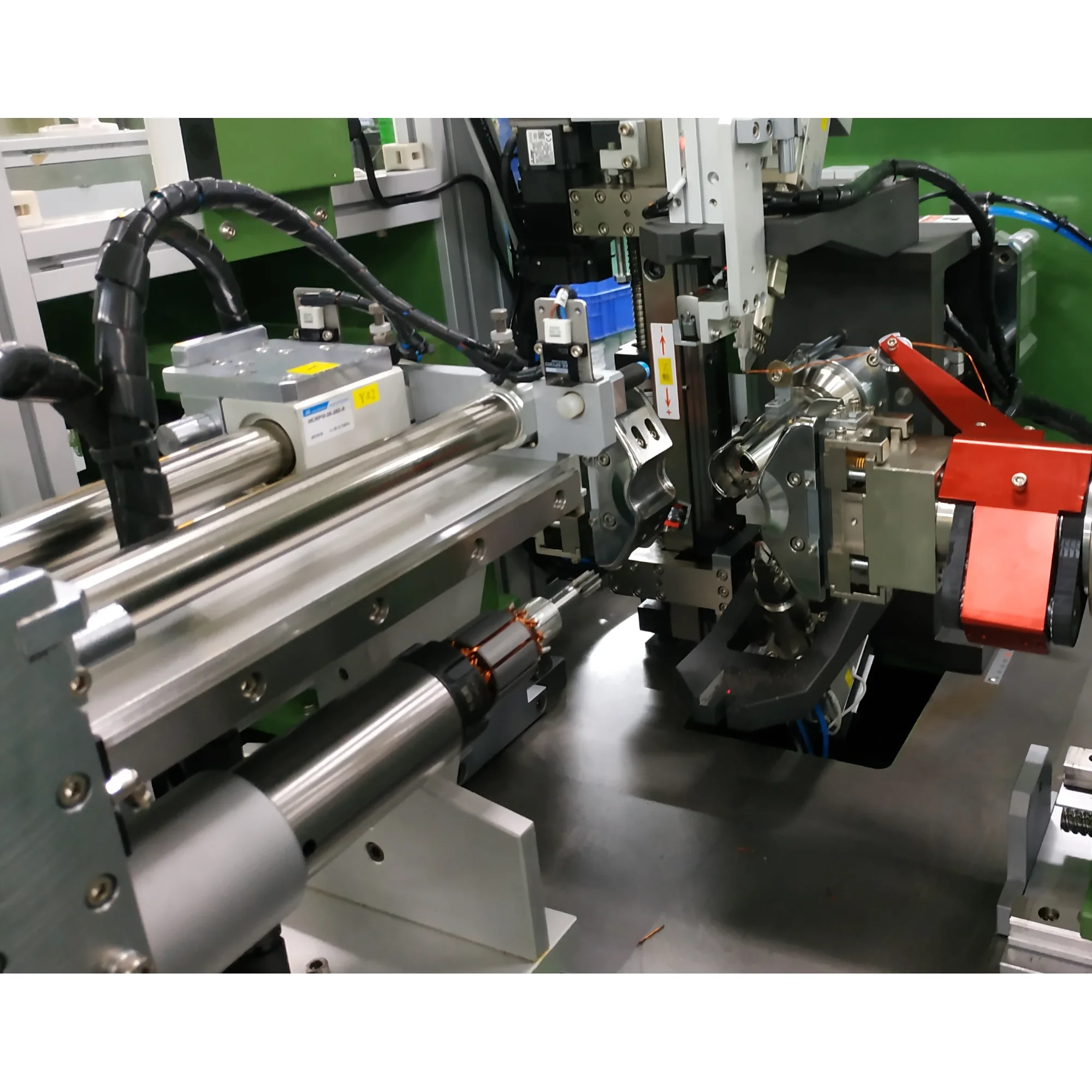

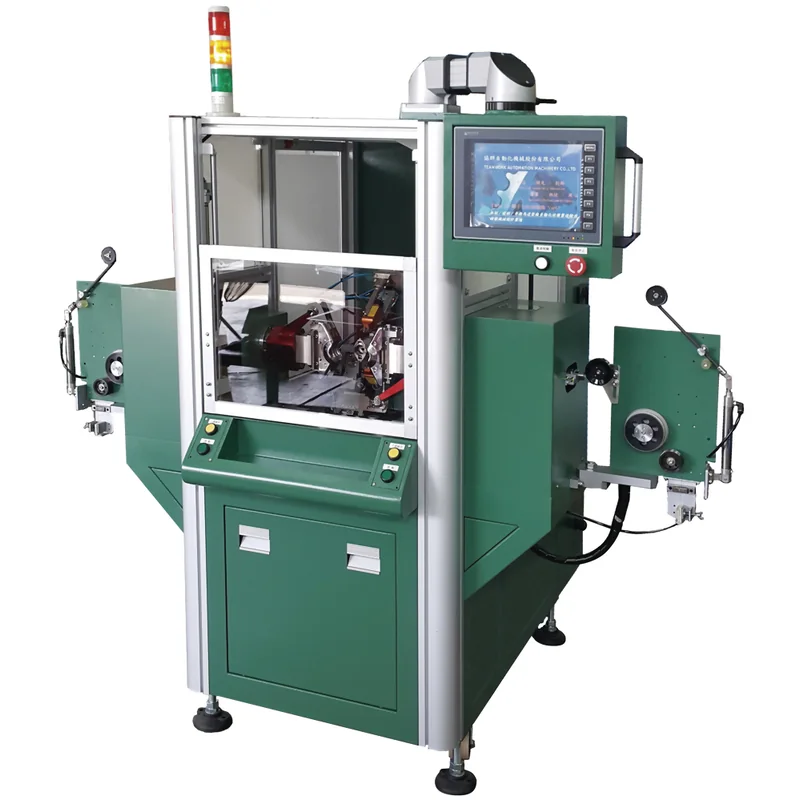

TWM-308A: Hook-Type Armature Winding Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as hook-type armature winder or armature winding machine. Standalone or line-integrated.
Product description
Specifications
Also known as Hook-type armature winder · Armature winding machine
| Power supply | 220V, 3Ø |
|---|---|
| Pneumatic supply | 5 kg/cm² |
| Rotor OD | Ø24 mm – Ø55 mm / Ø55 mm – Ø85 mm |
| Commutator OD | Ø15 mm – Ø55 mm |
| Core thickness | < 120 mm |
| Applicable wire diameter | 0.2 mm – 1.2 mm |
| Winding speed (max) | 3000 rpm (depending on winding item) |
| Machine size (D x W x H) | 1335 x 1200 x 1630 mm |
| Machine net weight | 750 kg |
Capabilities shown are typical. Values outside this range can be quoted on request.

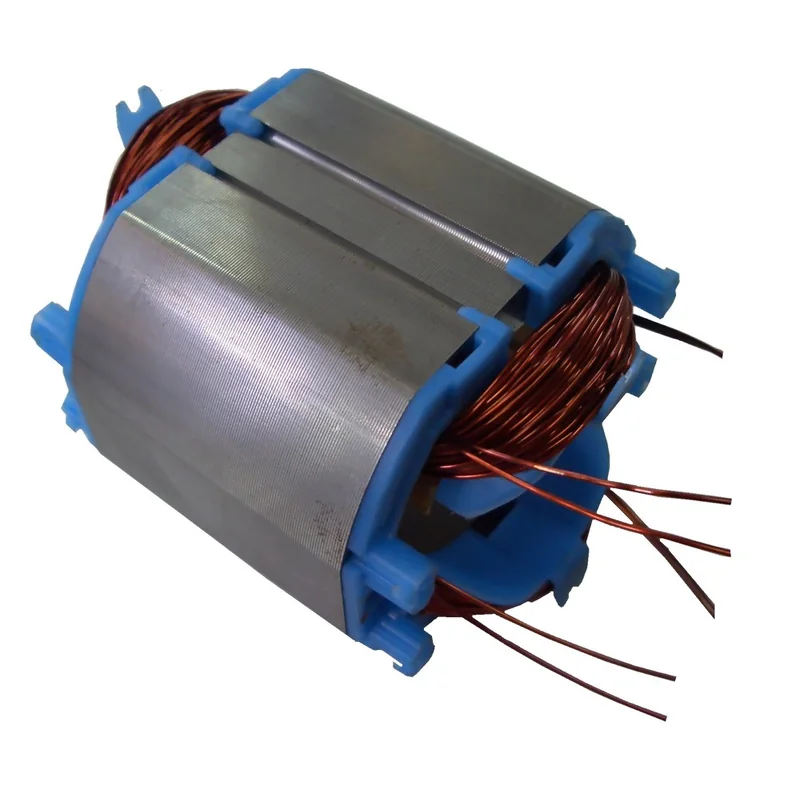

Output
