TWM-202S

Servo Motor/Hydraulic Pressure (Rotor\Commutator\Impeller Assembly)

TWM-202S is a servo motor/hydraulic pressure (rotor\commutator\impeller assembly) built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Process stage
Rotor & Armature Equipment
Motor types
Brushed and universal motors
Tags AssemblyCommutatorRotorShaftBrushed motorStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Applicable for pressing armature shaft, commutator and impeller for carbon brush and series motors.
  • Digital pressure detectors are equipped to monitor and control quality effectively and stability which improves the ability to detect defective products in advance.
  • Dual start switches equipped with a full enclosed splash guard and automatic safety door or photoelectrical sensor safety switch which effectively improve operation safety.
  • The positioning pin press into tooling can prevent silicon steel sheet from twisting while pressing the spindle.
  • Tooling for pressing commutator and impeller undergo hardening treatment which improve tooling lifetime.
  • There are vertical and horizontal type design available depends on your demands.
  • Fully automatic press for commutator is available. Optional conveyor belt for transport achieves unmanned and fully automatic production line

Specifications

What this machine is rated for

Power supply 220V (380V), 3Ø
Output max 2000 / 5000 kgf (servo / hydraulic pressure)
Total armature length < 400 mm
Cylinder stroke < 150 mm
Machine size (D x W x H) 600 x 500 x 2300 mm
Machine net weight 250 kg

Capabilities shown are typical. Values outside this range can be quoted on request.

Output

Parts produced on this machine

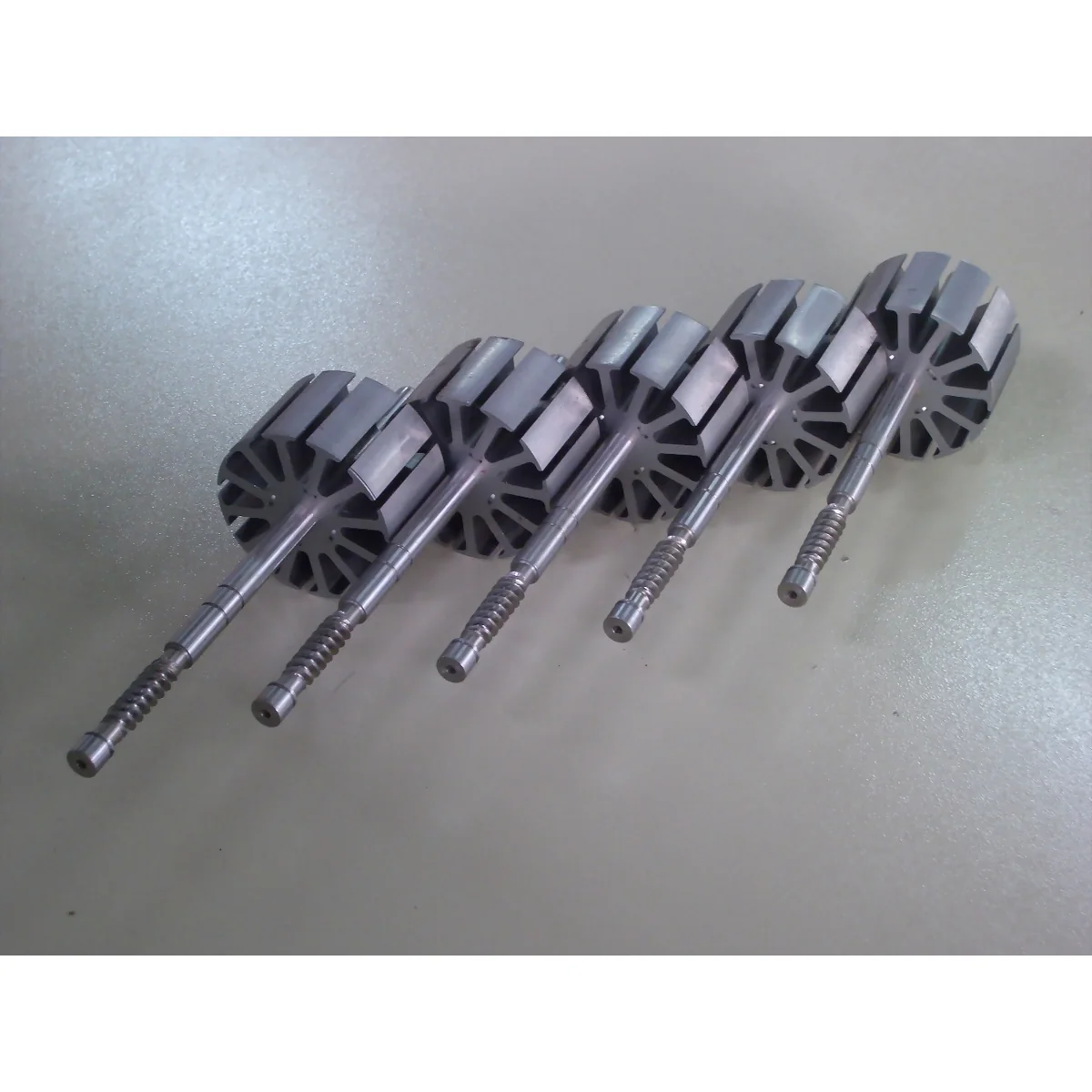

TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) - finished part produced on this machine

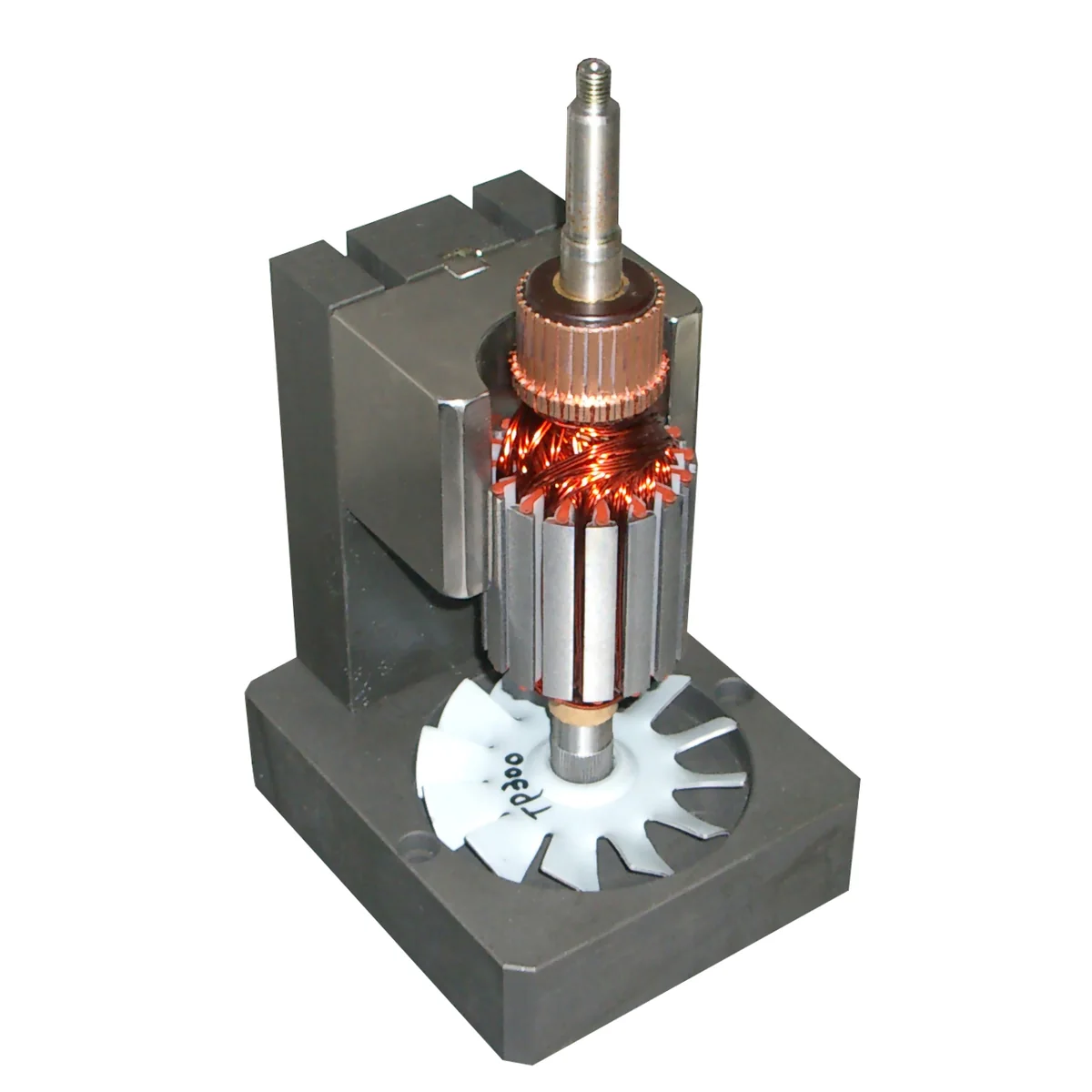

TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) - finished part produced on this machine
TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) - finished part produced on this machine
TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) - finished part produced on this machine

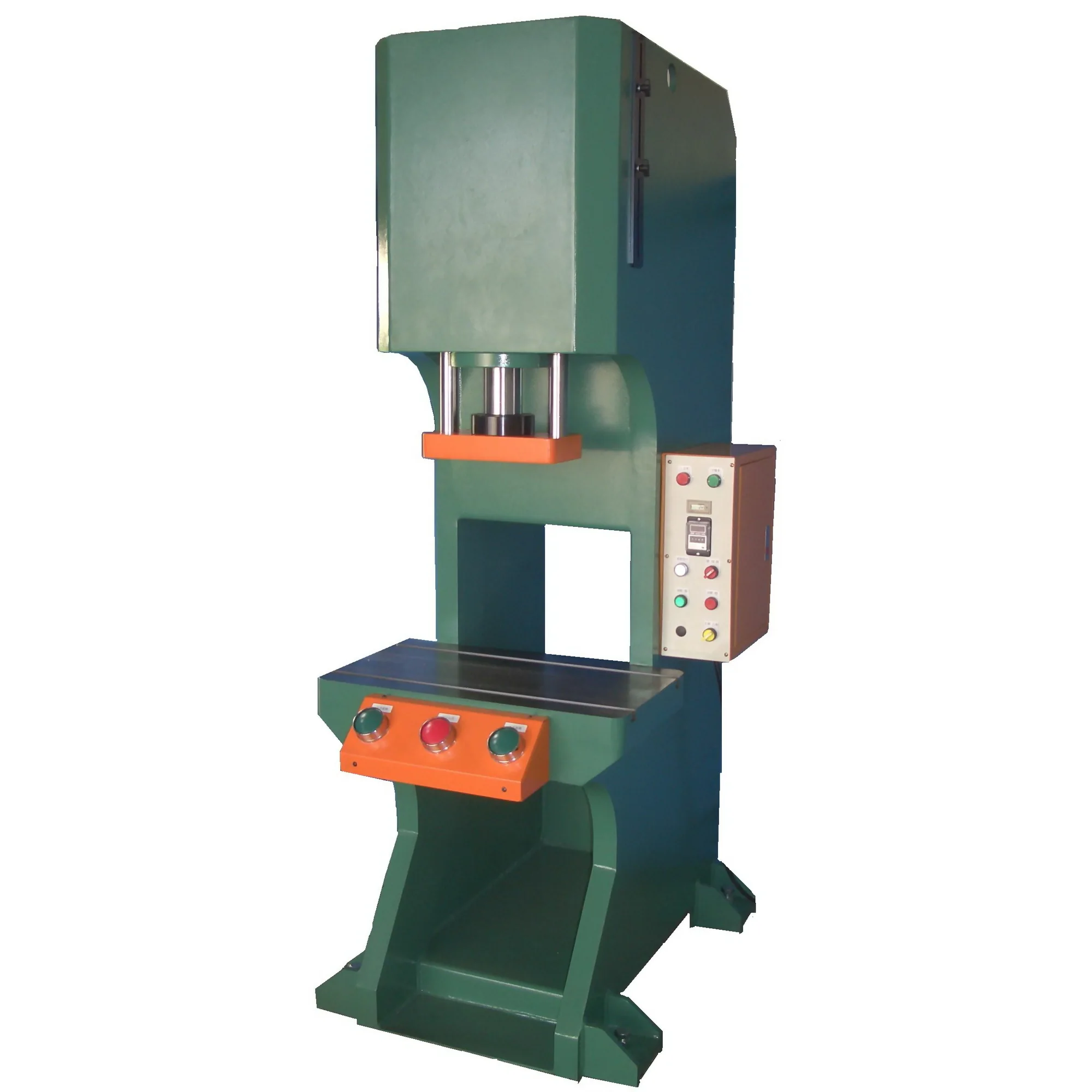

TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly)
TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly)
TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly)

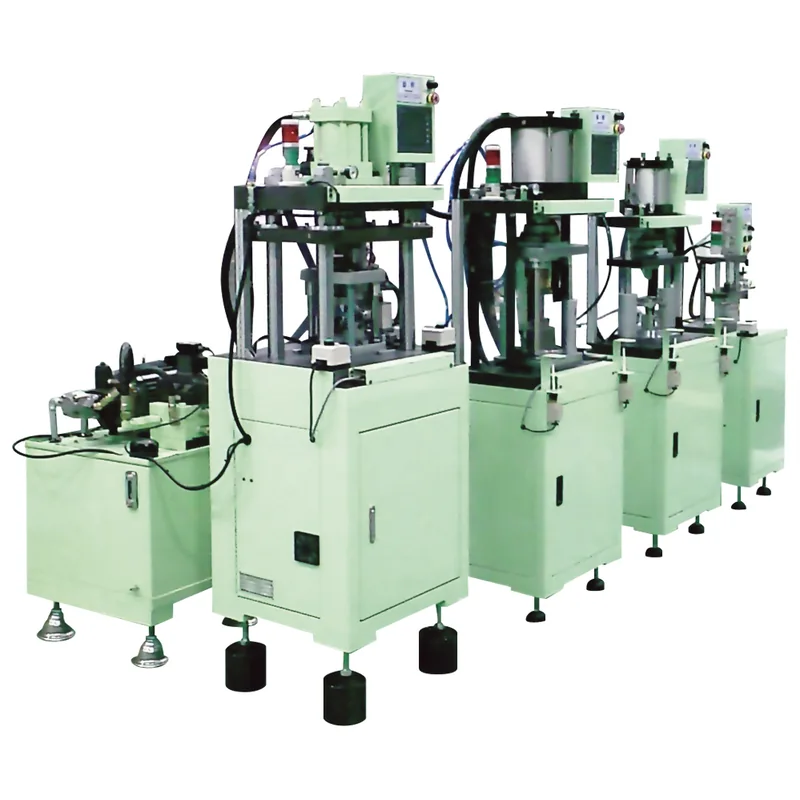

TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) in operation

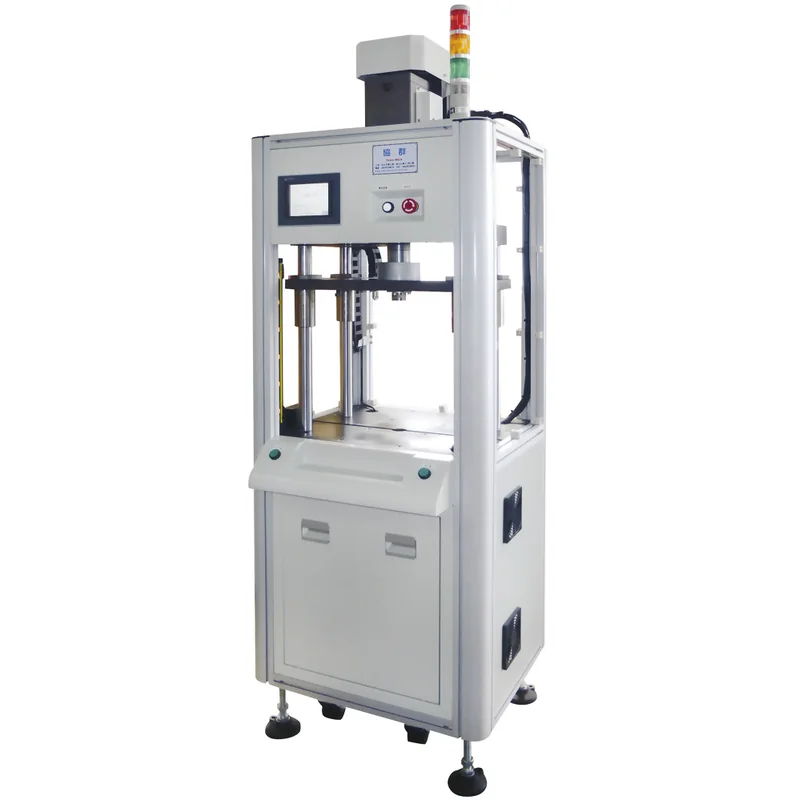

TWM-202S Servo motor/Hydraulic Pressure (Rotor\Commutator\impeller assembly) in operation
