TWM-LA01

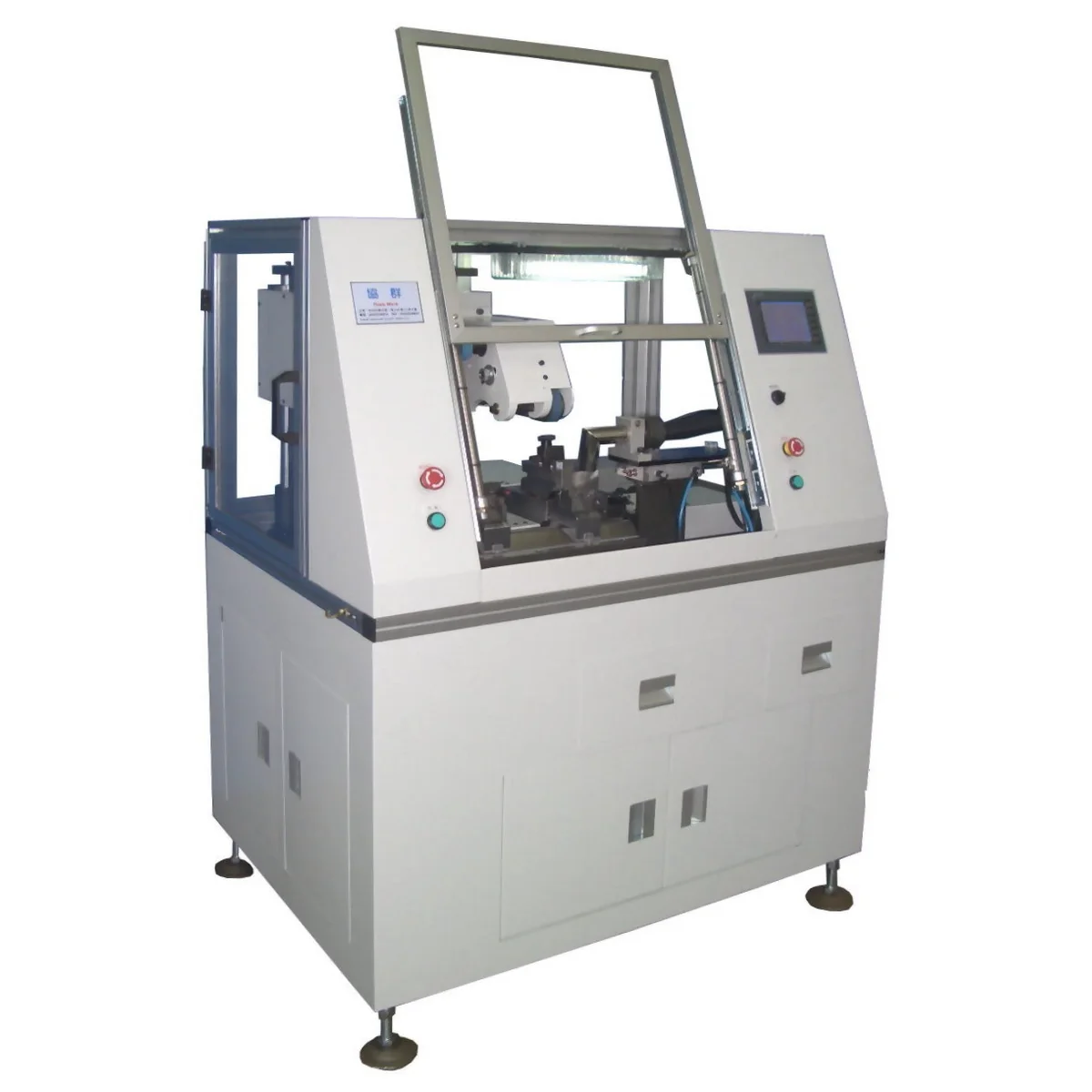

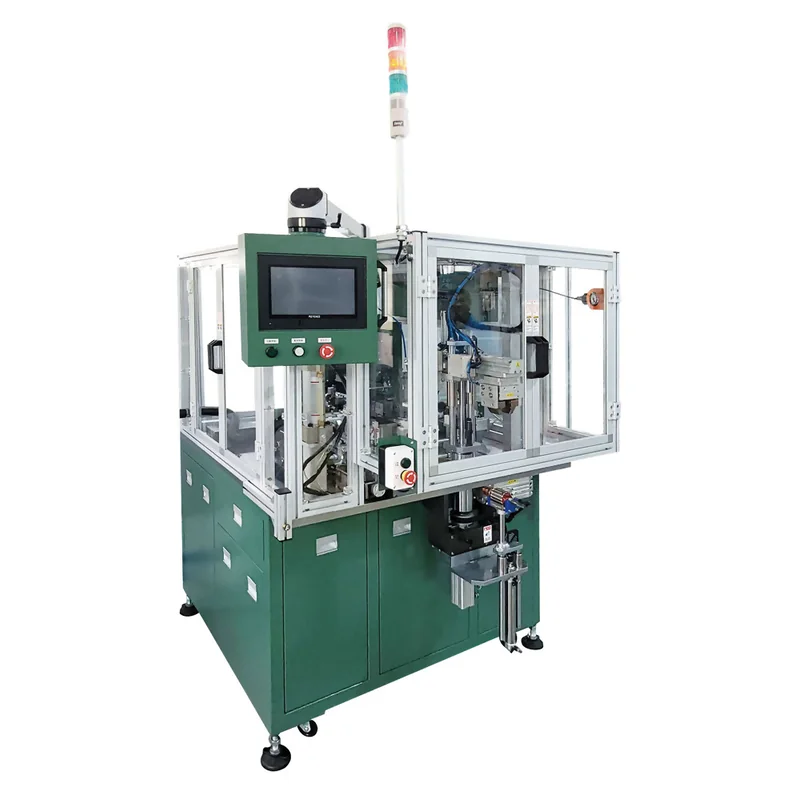

3-in-1 Armature Turning Machine

TWM-LA01: 3-in-1 Armature Turning Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as 3-in-1 turning machine or armature turning machine. Standalone or line-integrated.

Category: Rotor & Armature Equipment
Process stage: Rotor & Armature Equipment
Motor types: Brushed and universal motors

Tags Turning Commutator Shaft Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

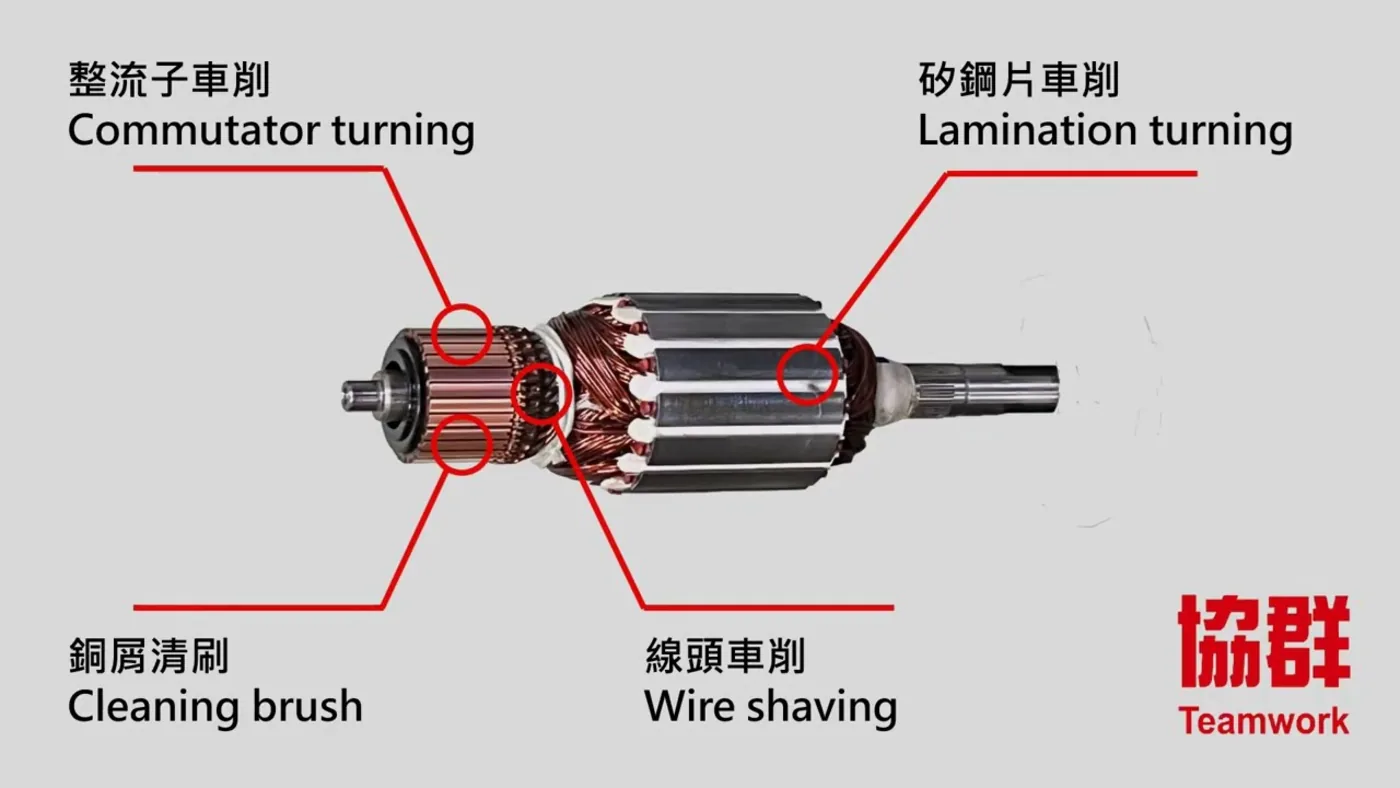

Three processes in one machine: lamination-stack OD turning, commutator OD turning and armature cleaning.
Multi-station servo index table: load/unload, lamination turning, commutator turning and cleaning run in parallel, so the cycle is set by the slowest station - not the sum of all steps.
Rotary dual gripper loads a raw armature and unloads a finished one in a single motion; the operator works at one front position.
Commutator turning on servo radial and axial axes with ball screws, in a single pass or a rough-and-finish two-pass cycle.
Cleaning station: commutator and lamination brushes with air blow; drawer-type chip collection, optional dust collector.
PLC with color touchscreen, stored parameter sets, run and fault monitoring and a remote-monitoring module; full window enclosure with door interlock and E-stop. Conveyor-linkable for unmanned production.

Specifications

What this machine is rated for

Also known as 3-in-1 turning machine · Armature turning machine · Commutator and armature lathe

Operations: lamination OD turning, commutator OD turning, cleaning
Transfer: servo index table, rotary dual gripper
Control: PLC, color HMI, remote monitoring

Capabilities shown are typical. Values outside this range can be quoted on request.
