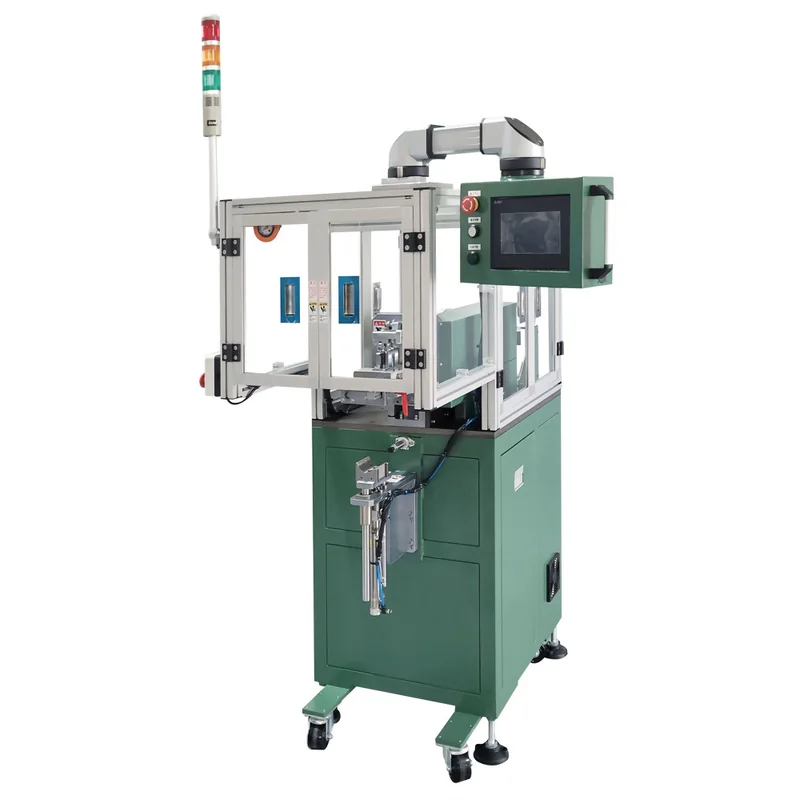

Armature Slot Insulation Inserting Machine

TWM-IP01: Armature Slot Insulation Inserting Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as armature paper inserter or armature slot liner inserting machine. Standalone or line-integrated.

Category: Rotor & Armature Equipment
Process stage: Rotor & Armature Equipment
Motor types: Brushed and universal motors

Tags Slot liner insertion Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

Horizontal slot insulation paper inserter for universal motor armatures; suits straight and skewed armatures.
Single-axis servo paper feed and a VFD-controlled cam mechanism that synchronizes automatic cutting and forming, insertion and armature indexing.
Fastest insertion 0.3 s per slot - a 12-slot armature is completed in as little as 6.7 s.
Insertion detection sensors confirm each liner; jam detection with alarm; the pressure safety system stops the machine on wire overfill, paper jam, deformed lamination stack or excessive insertion force.
Armature lift-up positioning and quick-change tooling.
PLC with HMI and remote-monitoring module; connects to automated conveyors.

Specifications

What this machine is rated for

Also known as Armature paper inserter · Armature slot liner inserting machine · Rotor insulation paper inserter

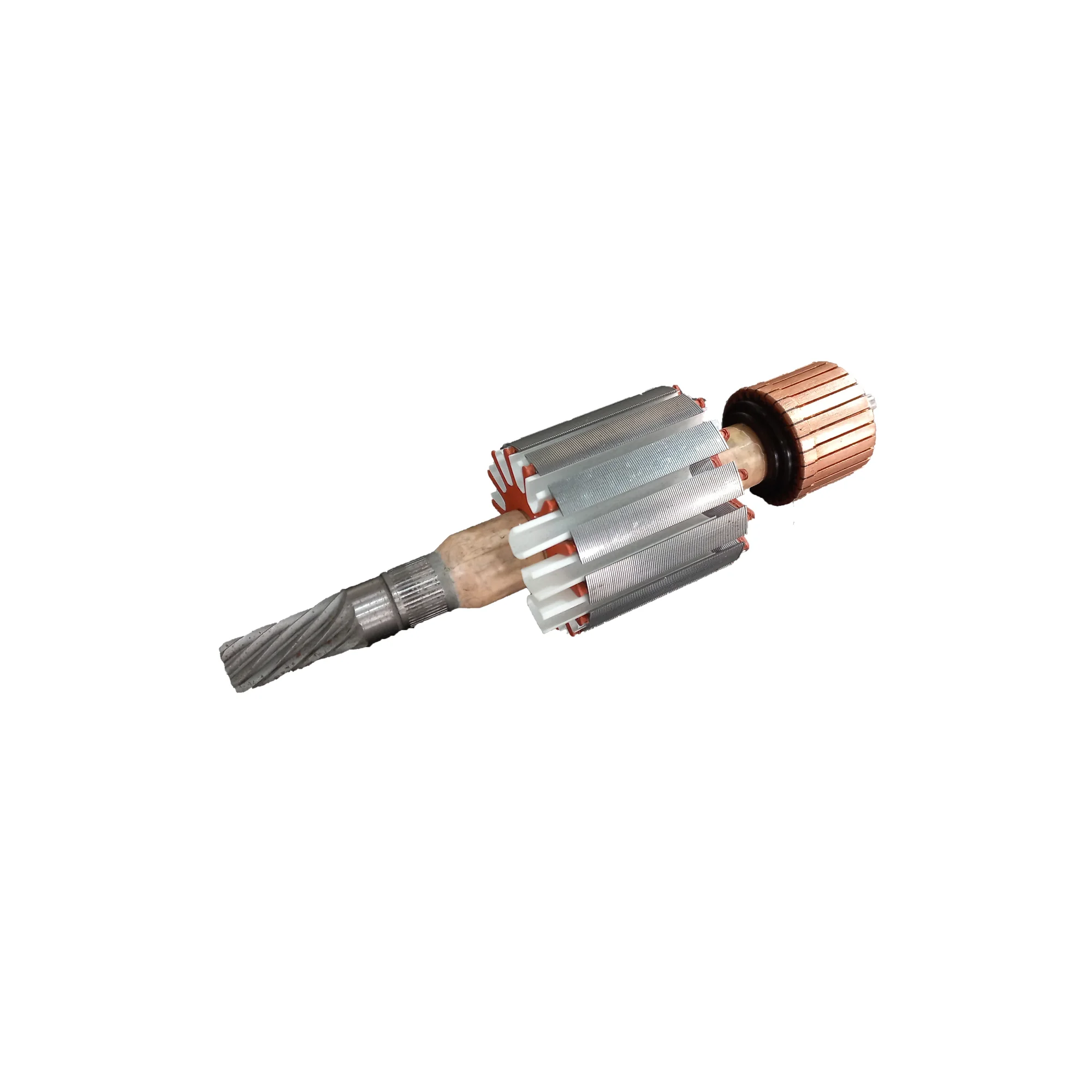

Workpiece: universal motor armatures (straight or skewed)
Speed: fastest 0.3 s per slot
Control: single-axis servo + VFD cam drive, PLC, HMI

Capabilities shown are typical. Values outside this range can be quoted on request.

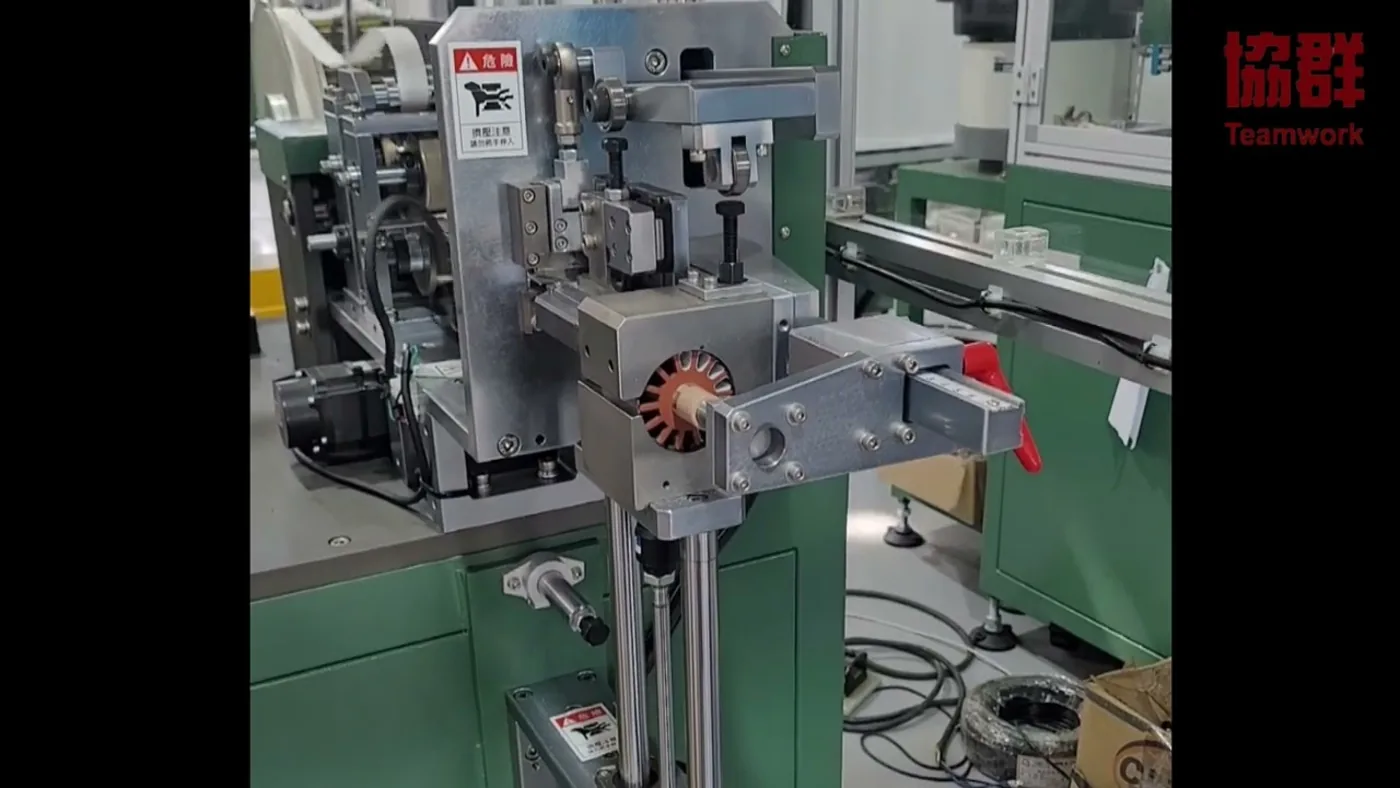

Watch this machine run
