Commutator Undercutting Machine

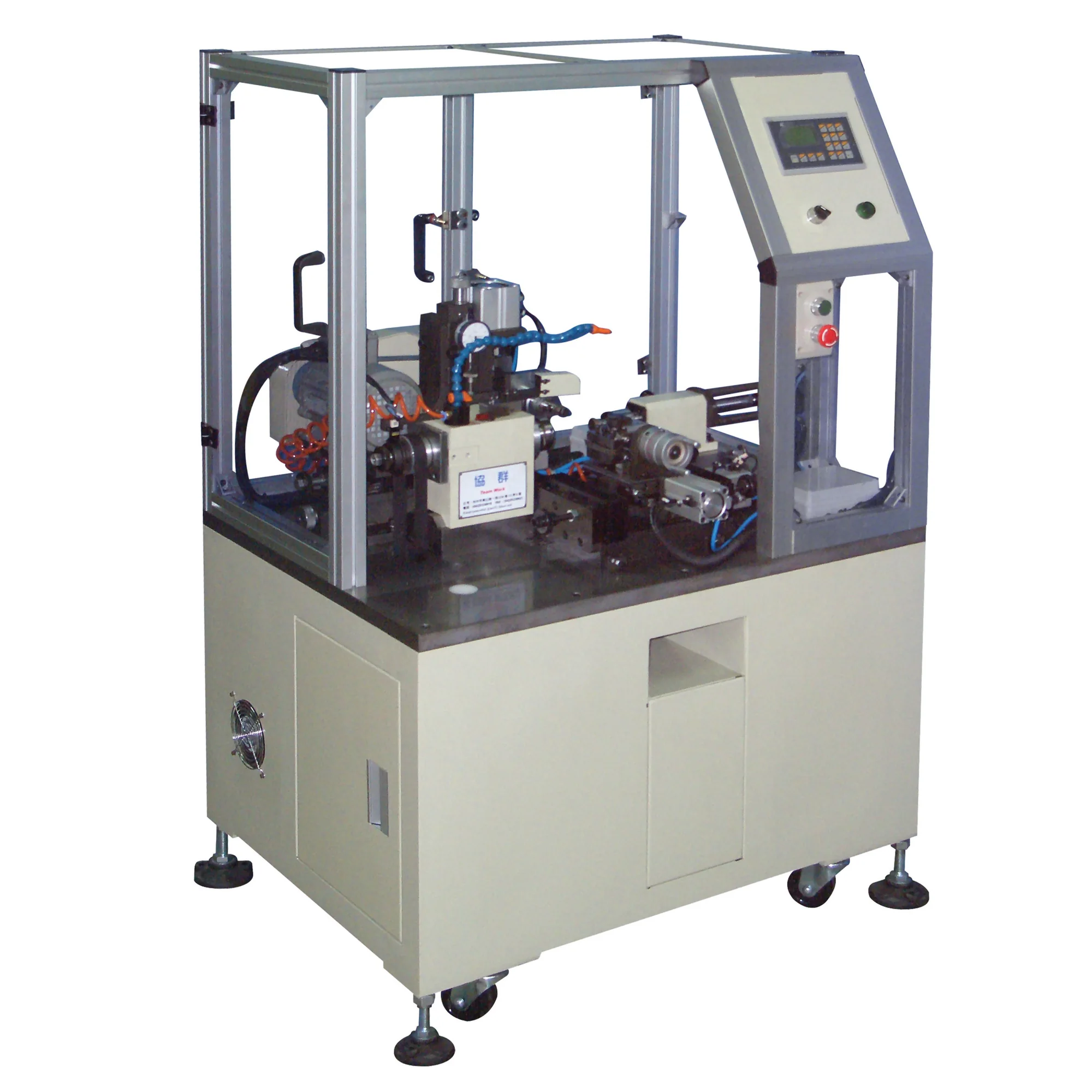

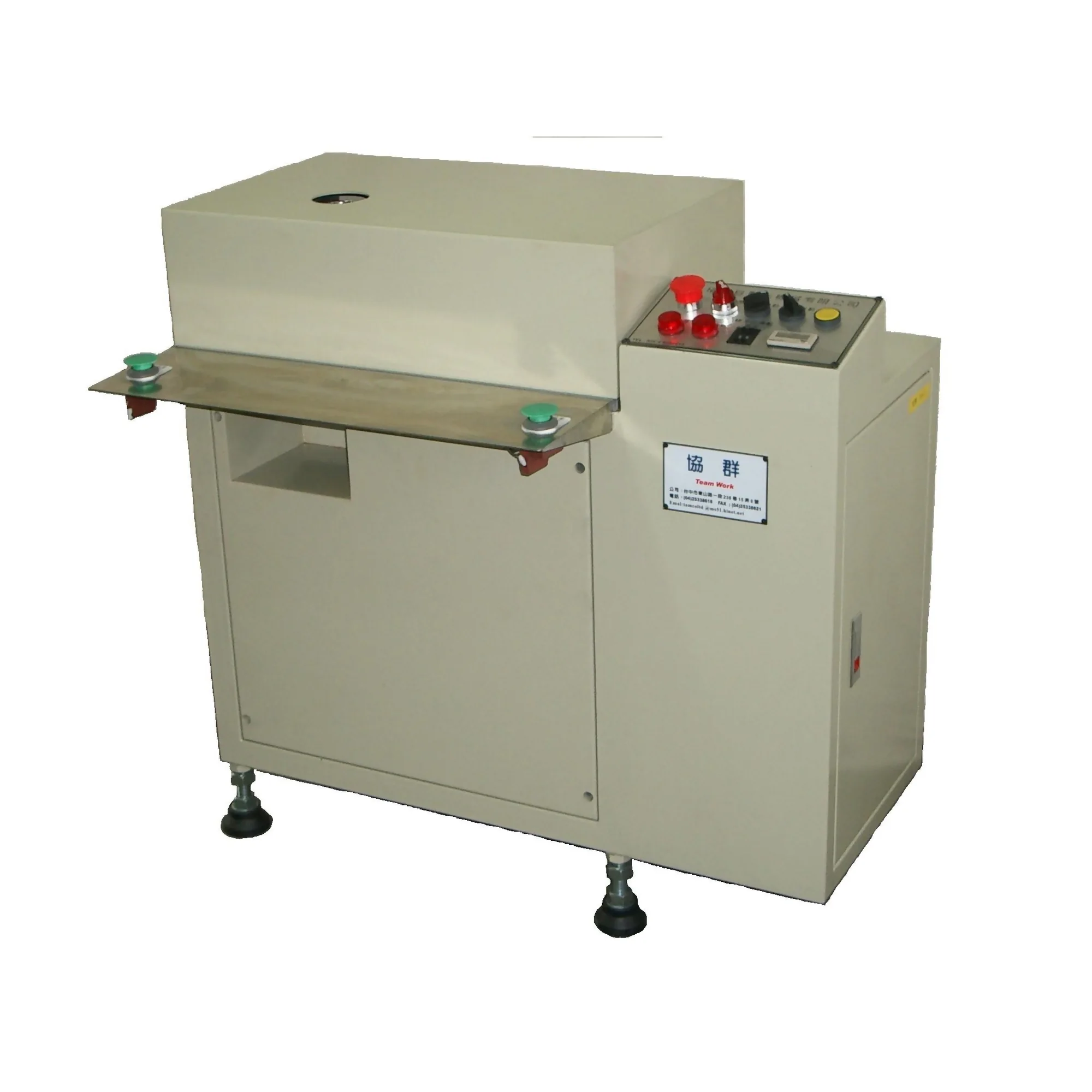

TWM-606: Commutator Undercutting Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as commutator undercutting machine or commutator slotting machine. Standalone or line-integrated.

Category: Rotor & Armature Equipment
Process stage: Rotor & Armature Equipment
Motor types: Brushed and universal motors

Tags Commutator Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

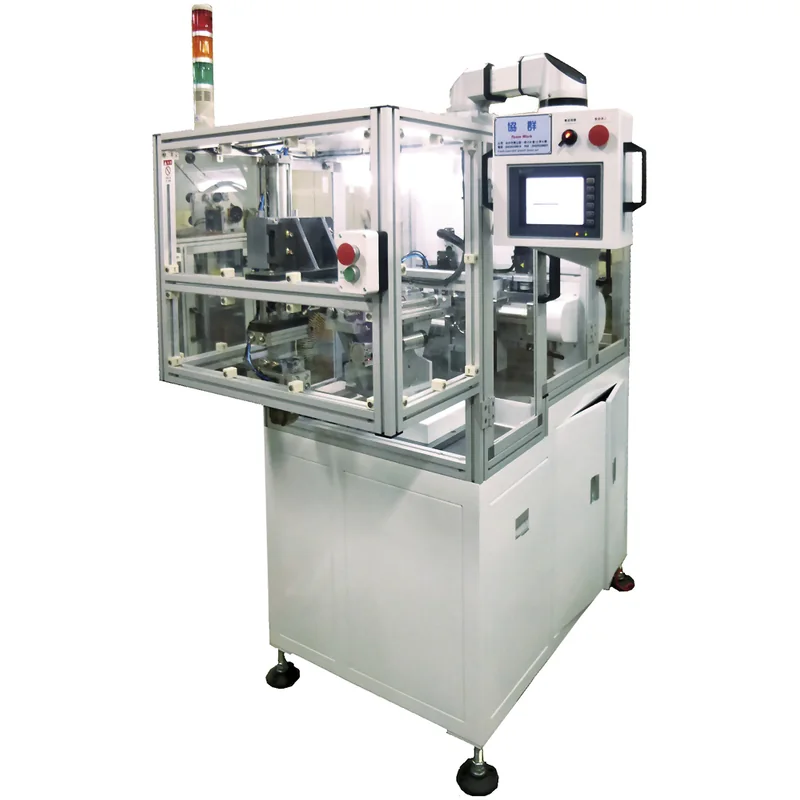

Automatic commutator slot cutting (undercutting) for brushed and universal (series-wound) motors.
Mechanical pawl pre-positioning with servo indexing extends the range of slot patterns.
Gear drive replaces the conventional timing belt, eliminating belt-flex errors in cutting accuracy.
Two cutters work simultaneously for higher throughput.
Independent servo feed per cutter for fine, individual depth adjustment and easy maintenance.
Ergonomic interface with quick slot-count setup and automatic error detection; modular quick-change tooling.
Optional robot and conveyor for unmanned, fully automatic production.

Specifications

What this machine is rated for

Also known as Commutator undercutting machine · Commutator slotting machine · Mica undercutter

Commutator Undercutting Machine — Specifications
Power requirement	220V, 3Ø, 1 kW
Pneumatic pressure	5 kg/cm²
Rotor OD	Ø55 mm / Ø85 mm
Commutator OD	Ø20 mm – Ø45 mm
Total rotor length	< 250 mm
Working precision	±0.02°
Machine size (D x W x H)	1000 x 700 x 1600 mm
Machine net weight	300 kg

Capabilities shown are typical. Values outside this range can be quoted on request.
