TWM-515 / NB-307A

Armature Balancing Machines (Measuring and Automatic Correction)

TWM-515 / NB-307A: Armature Balancing Machines (Measuring and Automatic Correction), built by Teamwork Automation in Taichung, Taiwan. Also known as dynamic balancing machine or automatic balancing machine (measure and correct). Standalone or line-integrated.

Process stage
Rotor & Armature Equipment
Motor types
Brushed and universal motors
Tags Dynamic balancingRotorBrushed motorStandalone machine
Request a quotation Book a video call

Product description

What this machine does

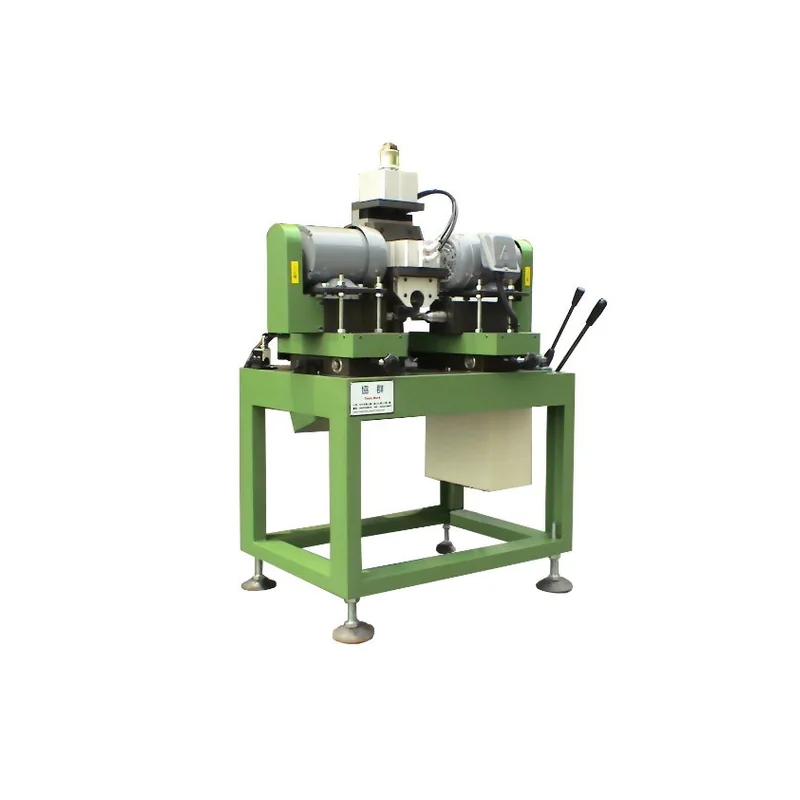

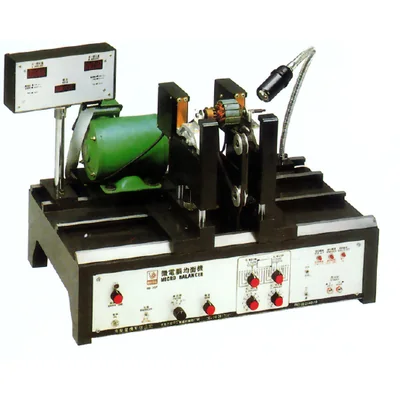

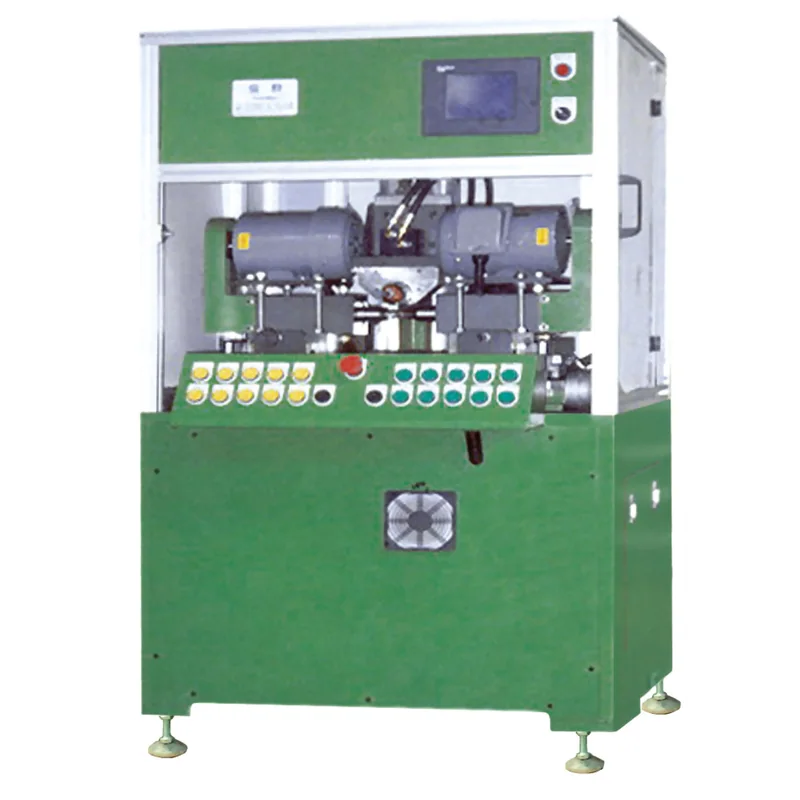

  • Two machines: TWM-515 dual-spindle correction-turning machine (removes material to correct unbalance) and NB-307A microcomputer balance tester (measuring). Supplied as measuring-only or with automatic correction, to suit the buyer's requirements.
  • Dual cutter spindles make it easy to choose the correction position; the fixture has axial and angular positioning for precise correction.
  • Microcomputer control for accurate, stable and simple operation.
  • Digital meters show left- and right-plane unbalance and test speed; all values lock automatically at the end of the test.
  • Strobe light makes the unbalance angle easy to locate; averaged readings with a speed filter detect even small vibrations.
  • High noise immunity for the factory floor; settings retained after power loss; automatic temperature compensation and loop calibration; long-life touch switches.

Specifications

What this machine is rated for

Also known as Dynamic balancing machine · Automatic balancing machine (measure and correct) · Armature balancer

  • Workpiece: rotors from brushed, universal, and small BLDC motors
  • Method: dynamic balancing with automatic correction (mass removal or addition)
  • Measurement: two-plane, computerised unbalance judgement
  • Cycle: project-dependent on rotor mass and required correction resolution
  • Automation: standalone or in-line as end-of-line balancing
  • Power supply (TWM-515): 220 V (380 V), 3-phase, 2 kW

Capabilities shown are typical. Values outside this range can be quoted on request.
