Armature Slot Wedge Inserting Machine

TWM-IW01: Armature Slot Wedge Inserting Machine, built by Teamwork Automation in Taichung, Taiwan. Also known as armature wedge inserter or rotor slot wedge inserting machine. Standalone or line-integrated.

Category: Rotor & Armature Equipment
Process stage: Rotor & Armature Equipment
Motor types: Brushed and universal motors

Tags Slot wedge insertion Brushed motor Armature Standalone machine

Request a quotation Book a video call

Product description

What this machine does

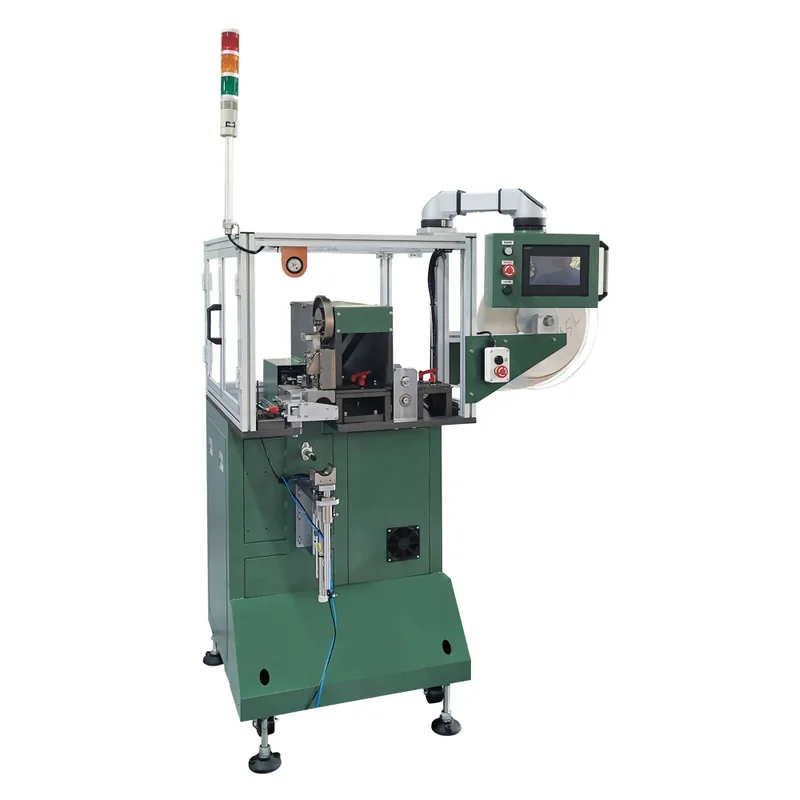

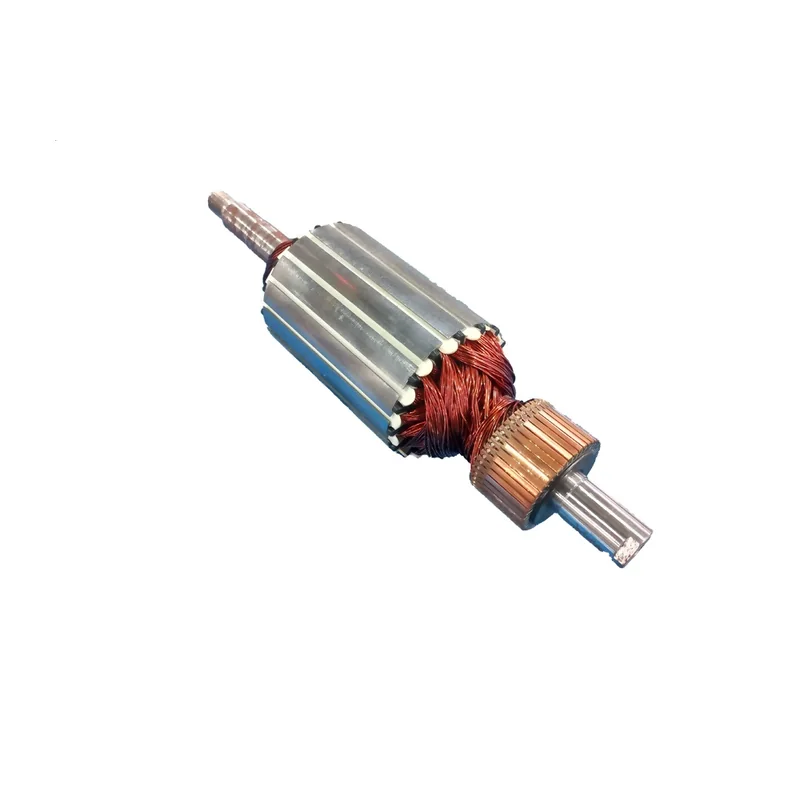

Horizontal slot wedge inserter for universal motor armatures; suits straight and skewed armatures.
Servo-controlled wedge feed with a V-forming pre-press roller, and a VFD-controlled cam mechanism that synchronizes automatic cutting, insertion and armature indexing.
Wedge insertion detection; the pressure safety system stops the machine on wire overfill, jam, deformed lamination stack or excessive insertion force.
Armature lift-up positioning and quick-change tooling.
PLC with HMI and remote-monitoring module; connects to automated conveyors.

Specifications

What this machine is rated for

Also known as Armature wedge inserter · Rotor slot wedge inserting machine

Workpiece: universal motor armatures (straight or skewed)
Control: single-axis servo + VFD cam drive, PLC, HMI

Capabilities shown are typical. Values outside this range can be quoted on request.

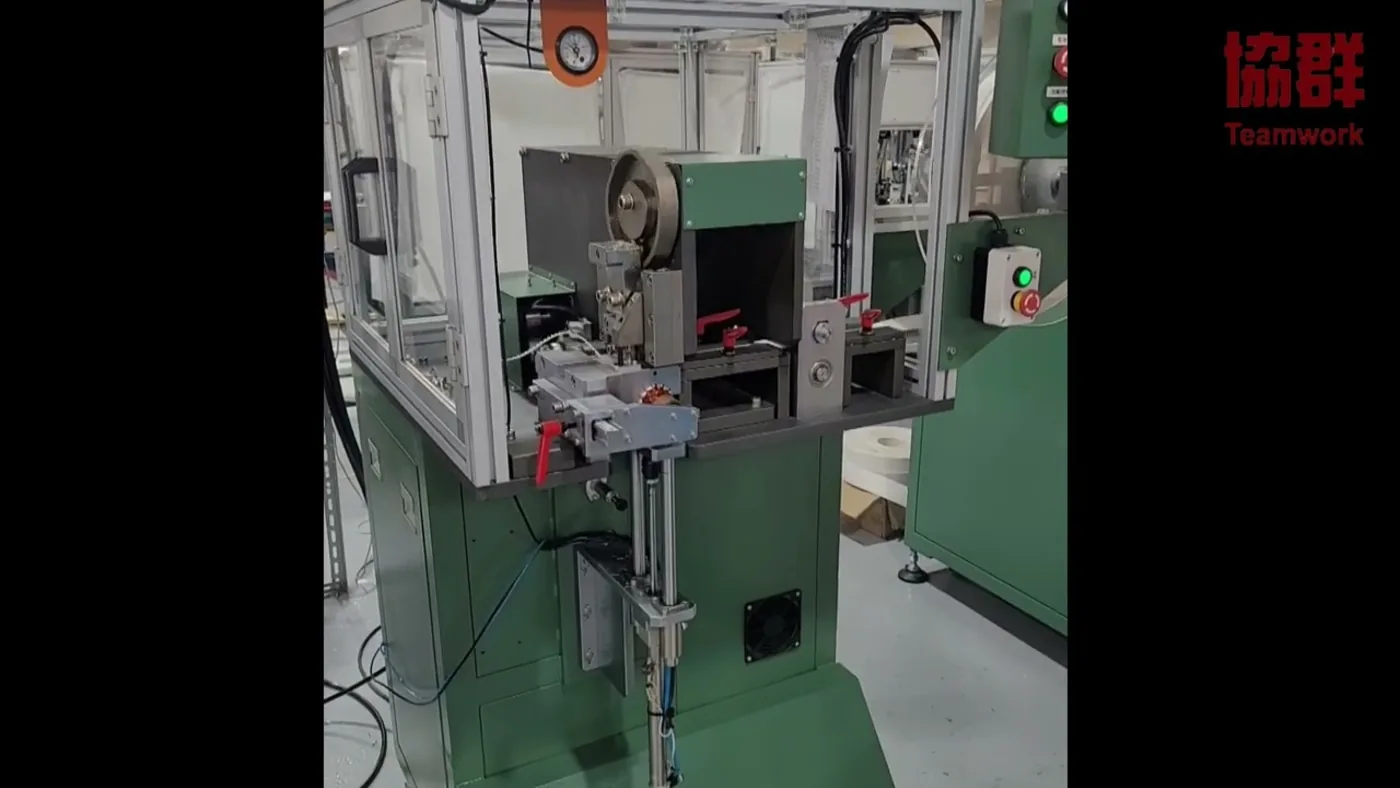

Watch this machine run
