Automatic Winding Machine Range built by Teamwork Automation in Taichung, Taiwan. Also known as motor winding machine range or automatic winding machines. Standalone or line-integrated.

Process stage
Modular Production Lines
Motor types
Brushed, brushless and universal motors
Tags WindingProduction line
Request a quotation Book a video call

Product description

What this machine does

  • Teamwork's R&D team has developed a full range of automatic winding machines: armature (hook-type and stuffing-type), BLDC in-slot needle and out-slot stator, 2-pole stator, multi-spindle coil and air-core coil winders.
  • The range is protected by international patents and exported to the USA, India, China, Japan and Southeast Asia.
  • Each machine is configured to the customer's motor and wire; see the individual machine pages for details. Supplied standalone or integrated into a winding line.

Specifications

What this machine is rated for

Also known as Motor winding machine range · Automatic winding machines

  • Coverage: armature winding, stator winding (in-slot and out-slot), hook-type, multi-axis coil
  • Drive: servo per axis
  • Tension: programmable, per-stage
  • Hooking: 360-degree hooking geometry, configurable to 0.01 degree where the process supports it
  • Integration: standalone or in-line

Capabilities shown are typical. Values outside this range can be quoted on request.

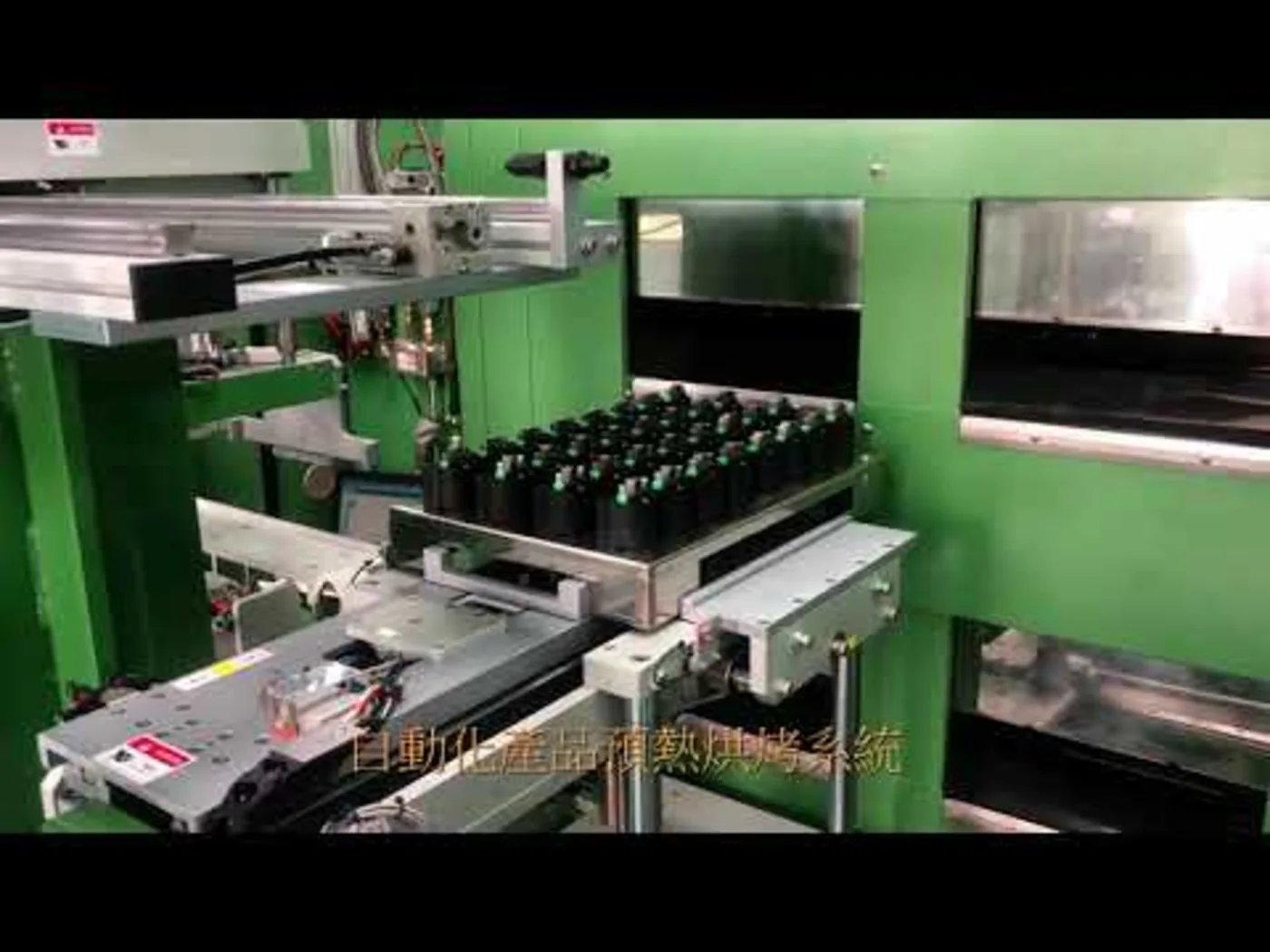

Watch this machine run

Automatic Winding Machine Range

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

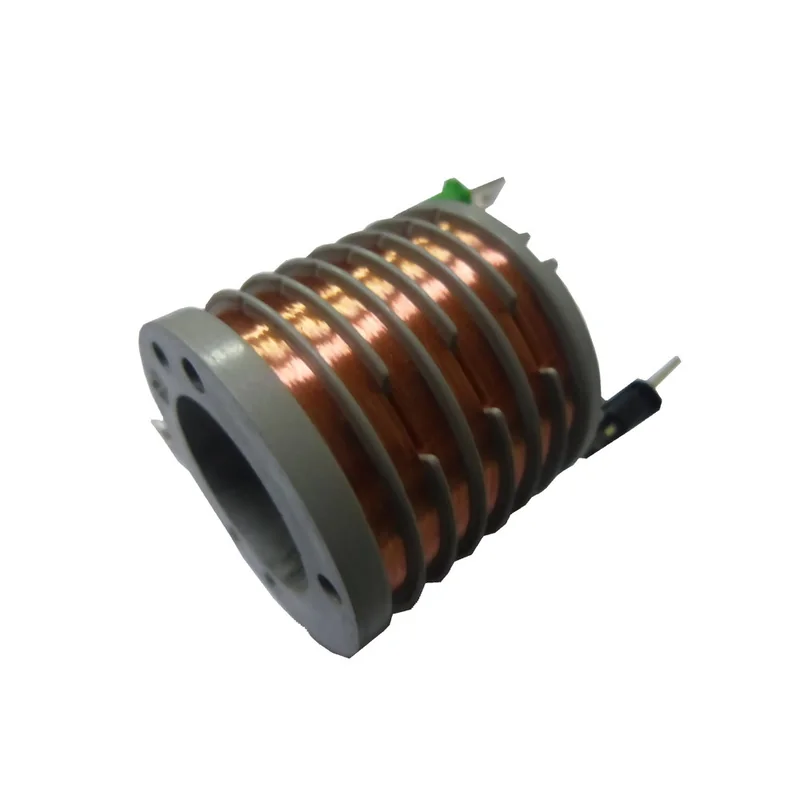

Automatic Winding Machine Range - finished part produced on this machine

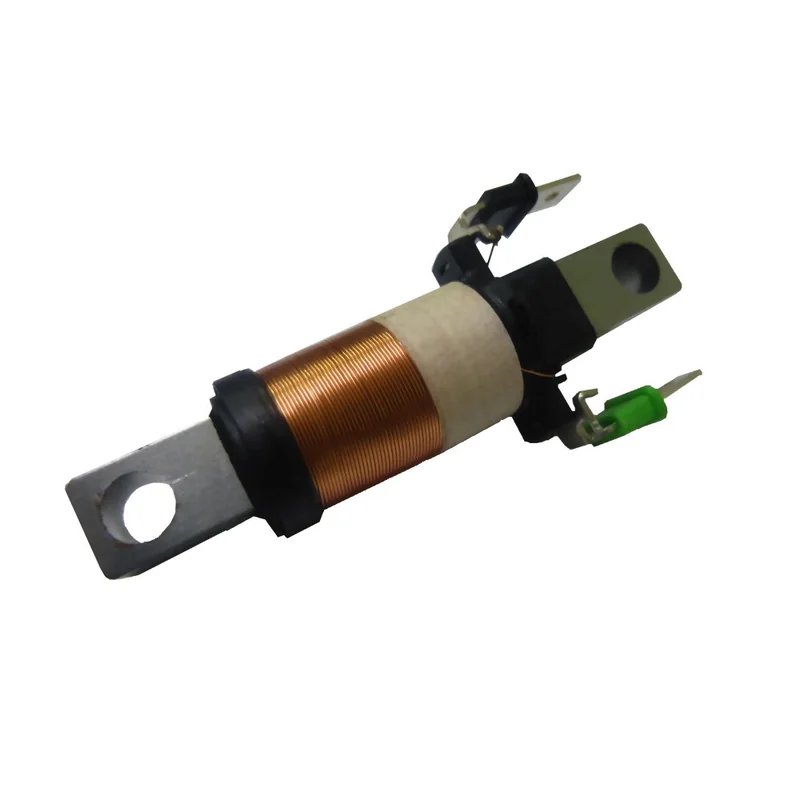

Automatic Winding Machine Range - finished part produced on this machine
Automatic Winding Machine Range - finished part produced on this machine

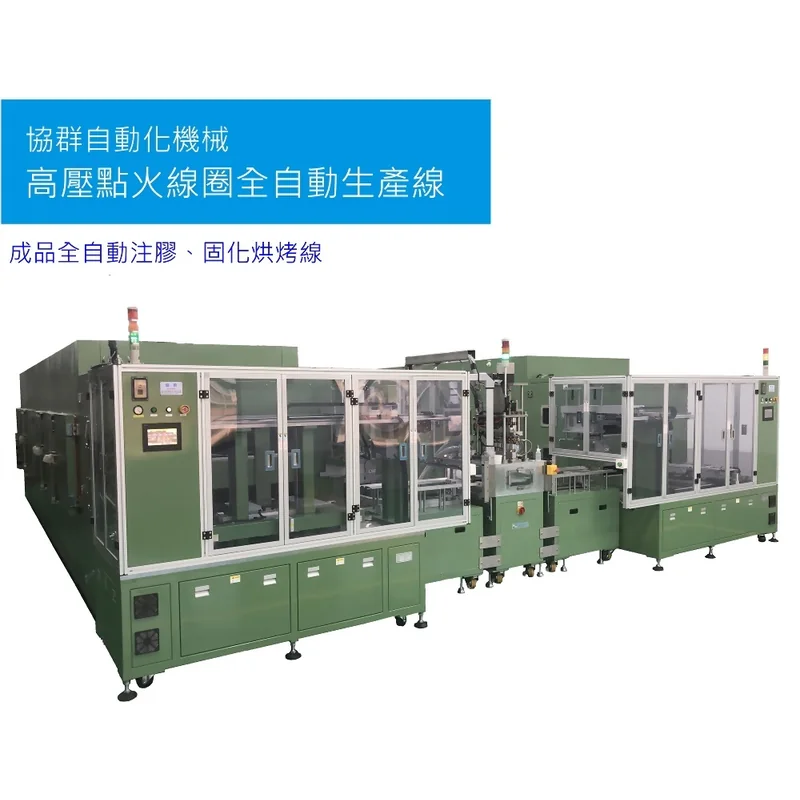

Automatic Winding Machine Range in operation

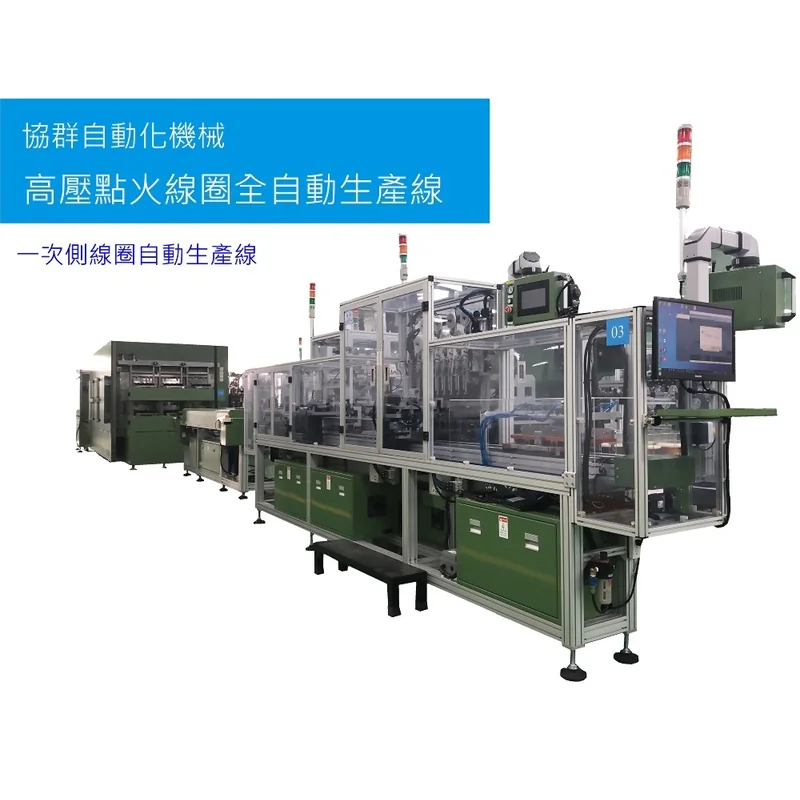

Automatic Winding Machine Range in operation

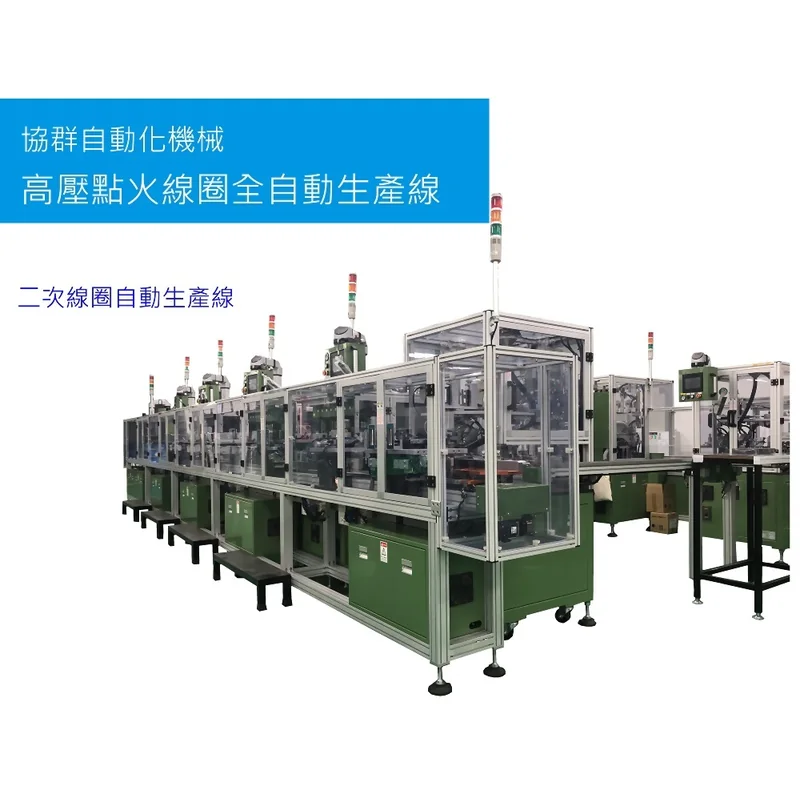

Automatic Winding Machine Range in operation
Automatic Winding Machine Range in operation
Automatic Winding Machine Range - finished part produced on this machine
Automatic Winding Machine Range - finished part produced on this machine
Automatic Winding Machine Range - finished part produced on this machine
