Fully Automatic Armature Production Line

Fully Automatic Armature Production Line built by Teamwork Automation in Taichung, Taiwan. Also known as armature production line or rotor assembly line. Standalone or line-integrated.

Process stage
Modular Production Lines
Motor types
Brushed and universal motors
Tags Production lineBrushed motorBrushless (BLDC) motor
Request a quotation Book a video call

Product description

What this machine does

  • Built to the customer's design and requirements: from automatic part infeed to automatic collection of finished armatures - an unmanned production line.

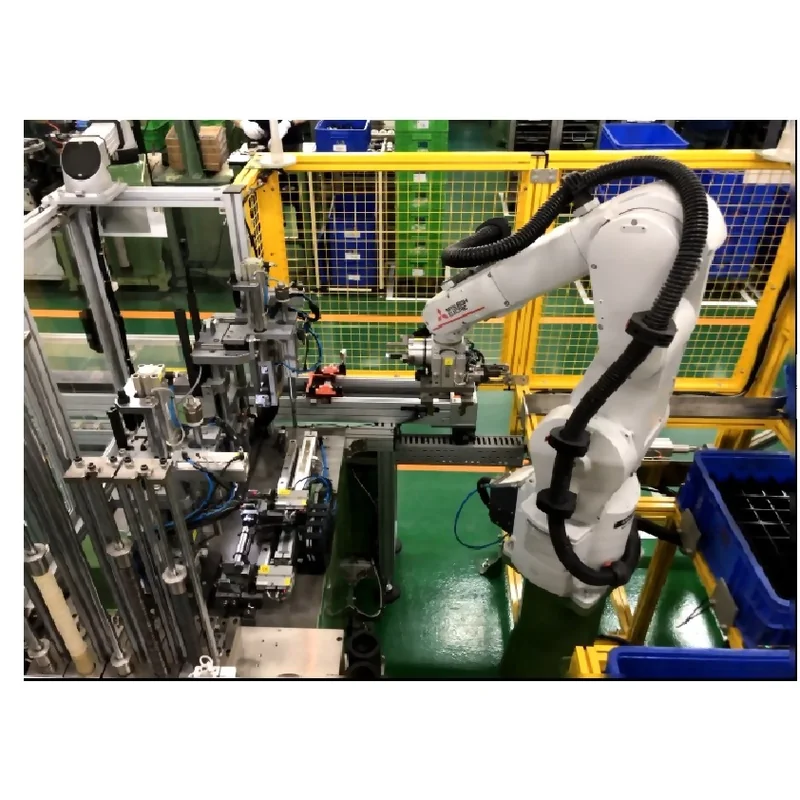

  • Conveying systems and 6-axis robots transfer rotors between stations.
  • Built-in quality control: CCD vision inspection, automatic height and force monitoring, and comprehensive rotor testing.
  • Typical stations: lamination-stack feeder, height check, shaft knurling, shaft press-fit, commutator press-fit, slot insulation, winding, fusing, armature testing, commutator undercutting and balancing.

Specifications

What this machine is rated for

Also known as Armature production line · Rotor assembly line · Turnkey armature line

  • Product: brushed motor armatures
  • Transfer: conveyors and 6-axis robots
  • Quality control: CCD vision, height and force monitoring, rotor testing

Capabilities shown are typical. Values outside this range can be quoted on request.

Watch this machine run

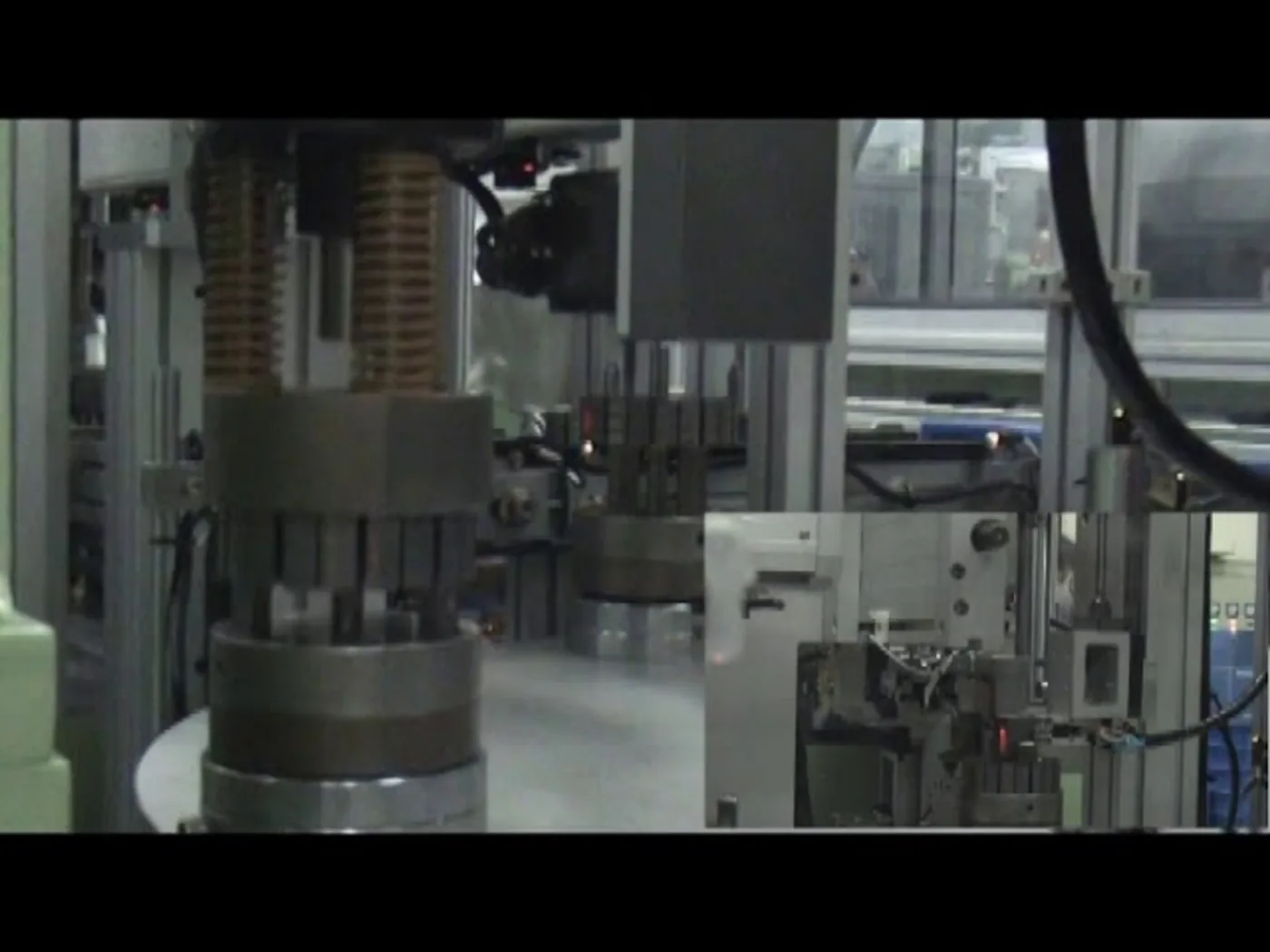

Fully Automatic Armature Production Line

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

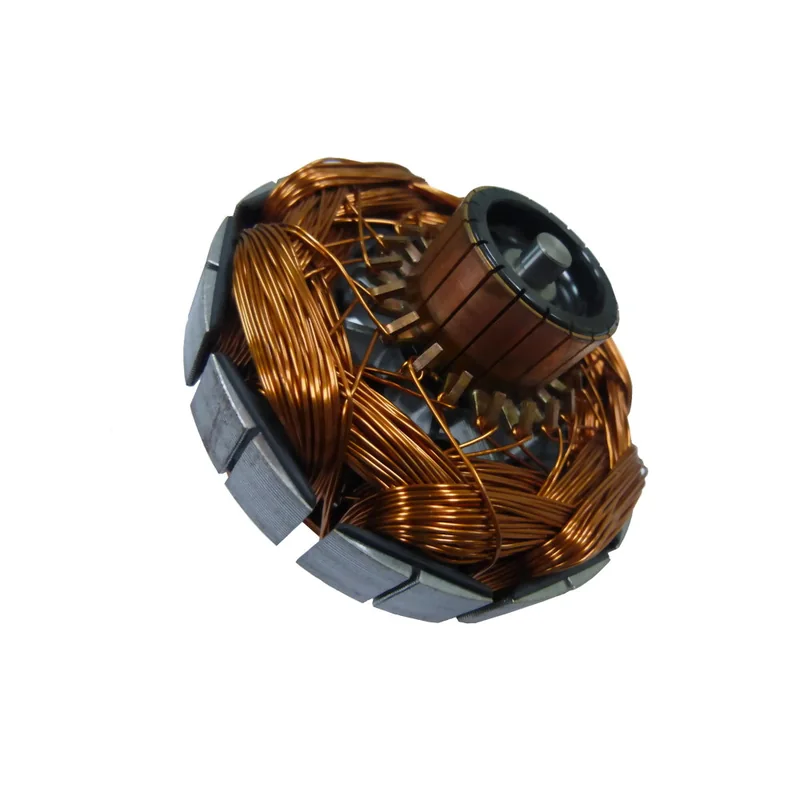

Fully Automatic Armature Production Line - finished part produced on this machine

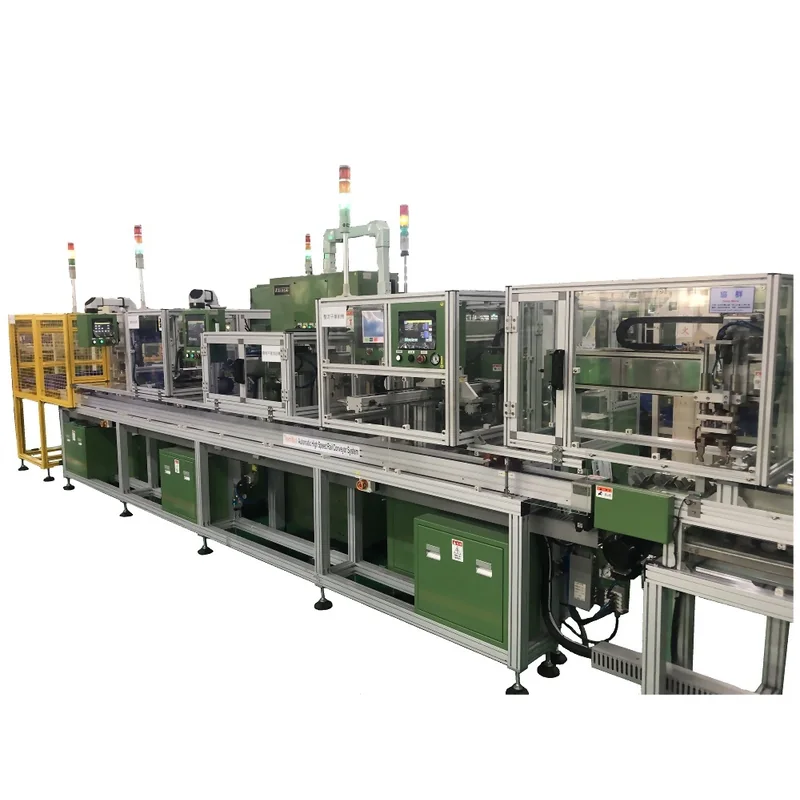

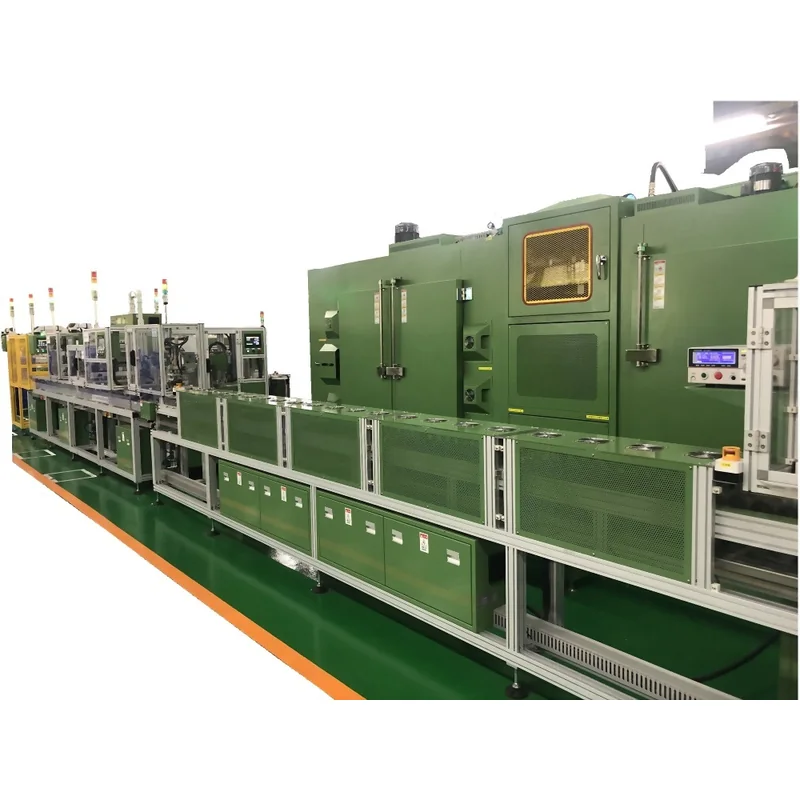

Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line in operation
Fully Automatic Armature Production Line - finished part produced on this machine
