TWM-ISP01

Motor Stator Slot Insulation Paper Inserting Machine

TWM-ISP01 is a motor stator slot insulation paper inserting machine built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Process stage
Stator Equipment
Motor types
Brushed, brushless and universal motors
Tags Slot liner insertionBrushed motorStatorStandalone machine
Request a quotation Book a video call

Product description

What this machine does

  • Slot liner inserting machine for brushed and universal motor stators, covering the smaller diameters typical of appliance and power-tool motors.
  • Automatic paper handling from reel to inserted liner, engineered for consistent seating depth across every slot.
  • Configurable for slot count, stator OD and stack height; tooling change is a rapid module swap.
  • Designed for standalone operation or integration into a stator production line ahead of the winding station.
  • Cycle time is project-dependent on stator geometry and paper thickness.

Specifications

What this machine is rated for

  • Workpiece: brushed / universal motor stators
  • Material: reel-fed insulation paper
  • Operations: feed, cut, form, insert
  • Tooling: modular for slot-count and diameter changes
  • Integration: standalone or in-line

Capabilities shown are typical. Values outside this range can be quoted on request.

Watch this machine run

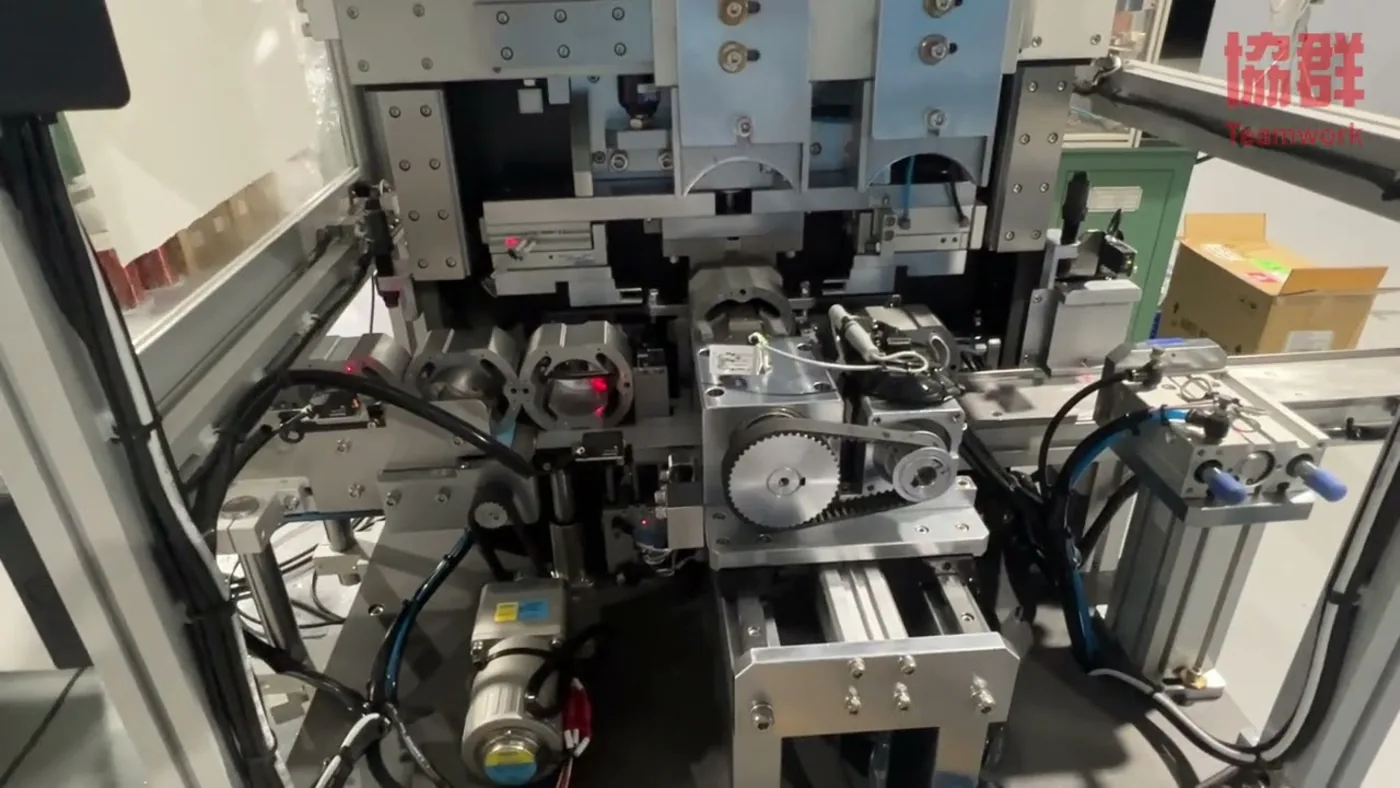

Motor Stator Slot Insulation Paper Inserting Machine

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

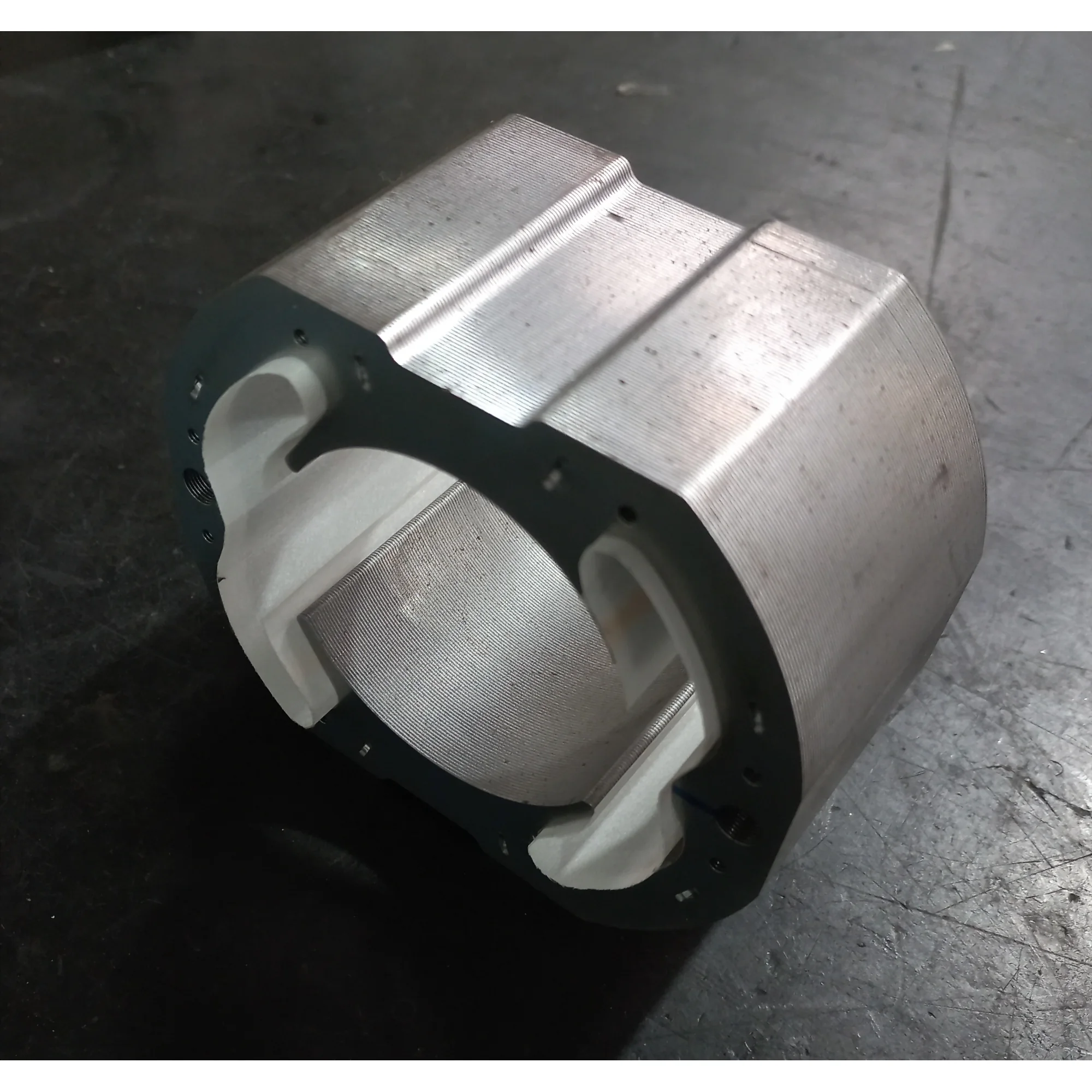

TWM-ISP01 Motor stator slot insulation paper inserting machine - finished part produced on this machine
TWM-ISP01 Motor stator slot insulation paper inserting machine - finished part produced on this machine
TWM-ISP01 Motor stator slot insulation paper inserting machine

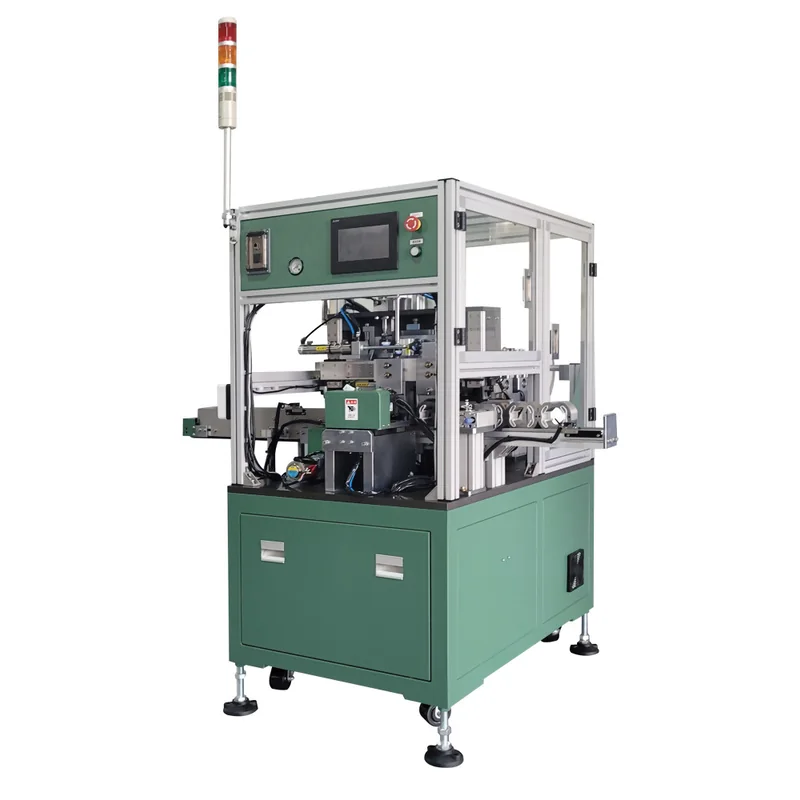

TWM-ISP01 Motor stator slot insulation paper inserting machine in operation
