Automatic Bobbin Production Line

Automatic Bobbin Production Line built by Teamwork Automation in Taichung, Taiwan. Supplied as a standalone machine or integrated into a complete production line.

Category: Bobbin Equipment
Process stage: Bobbin Equipment
Motor types: Brushed, brushless and universal motors

Tags Bobbin Coil winding Assembly Production line

Request a quotation Book a video call

Product description

What this machine does

Modular assembly line dedicated to bobbin winding, terminal soldering and end-of-line testing for coil bobbins used across appliance, industrial and cooling-fan motors.
Stations are linked by a servo-driven transfer system so throughput scales by adding modules rather than replacing the line.
Wire tension, turn count and pin routing are configurable per bobbin design and stored as recipes on the PLC.
Every unit is tested at end of line; failed units are diverted before palletisation.
Cycle time and line layout are engineered per project.

Specifications

What this machine is rated for

Products: coil bobbins across appliance, industrial and cooling-fan motors
Line type: modular, servo-driven transfer
Stations: winding, soldering, test, unloading
Control: PLC with recipe management per bobbin design
Testing: 100% inline electrical test

Capabilities shown are typical. Values outside this range can be quoted on request.

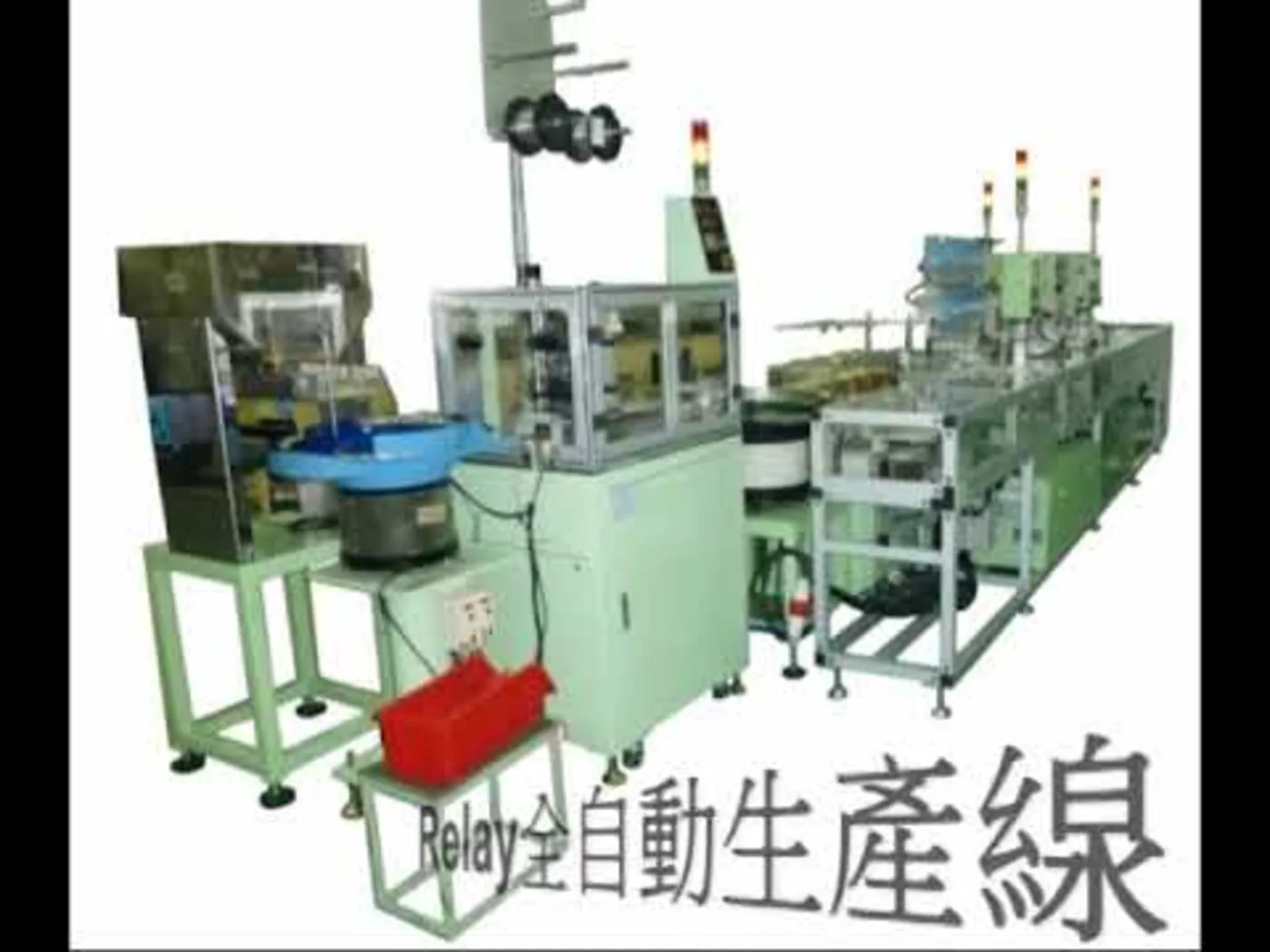

Watch this machine run

Automatic Bobbin Production Line

Filmed on our floor in Taichung. Nothing loads from YouTube until you press play, and the video does not autoplay.

Output

Parts produced on this machine

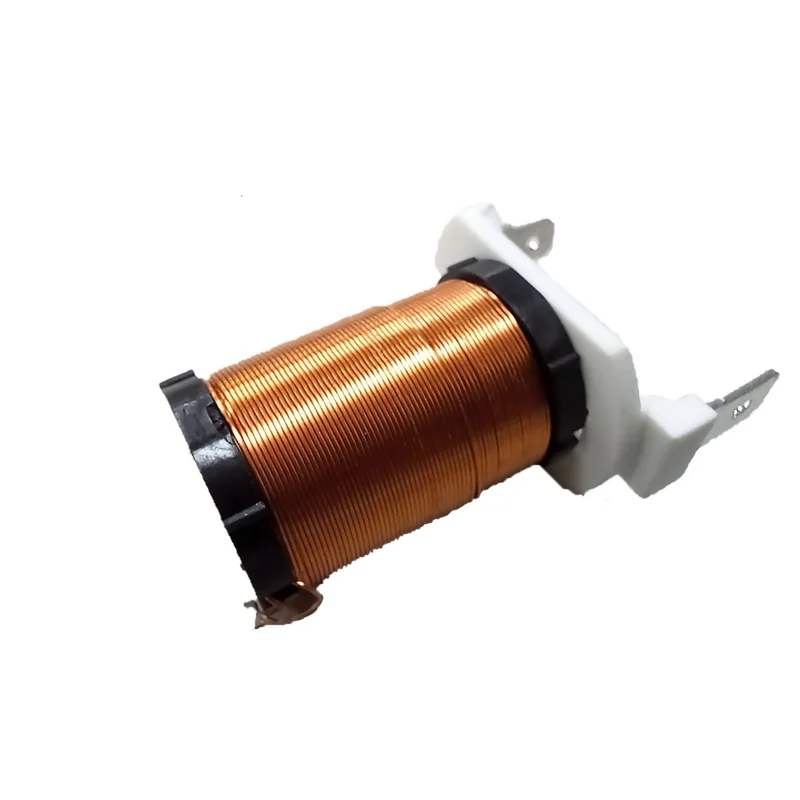

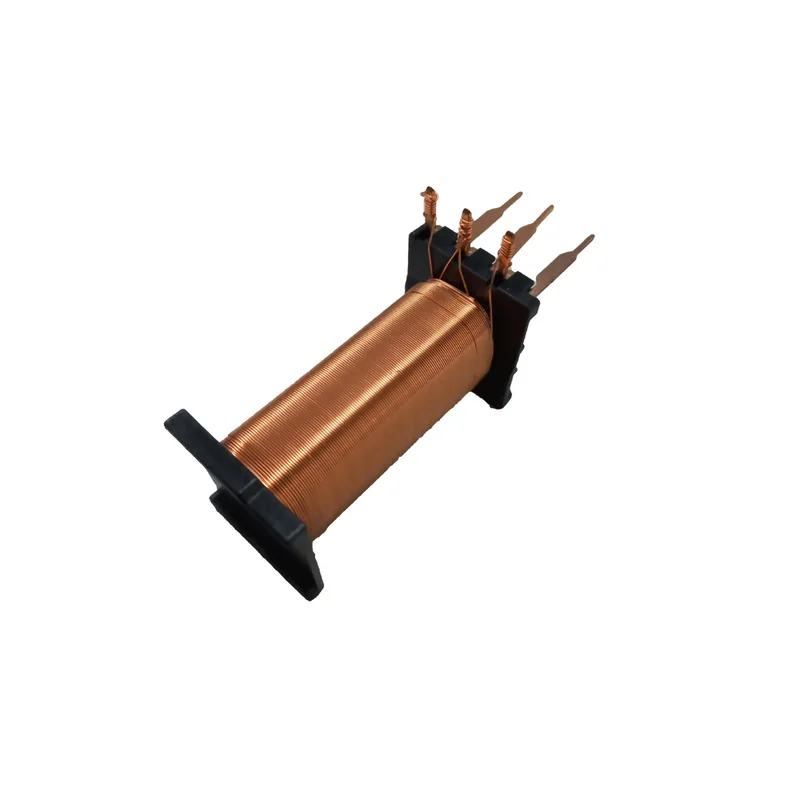

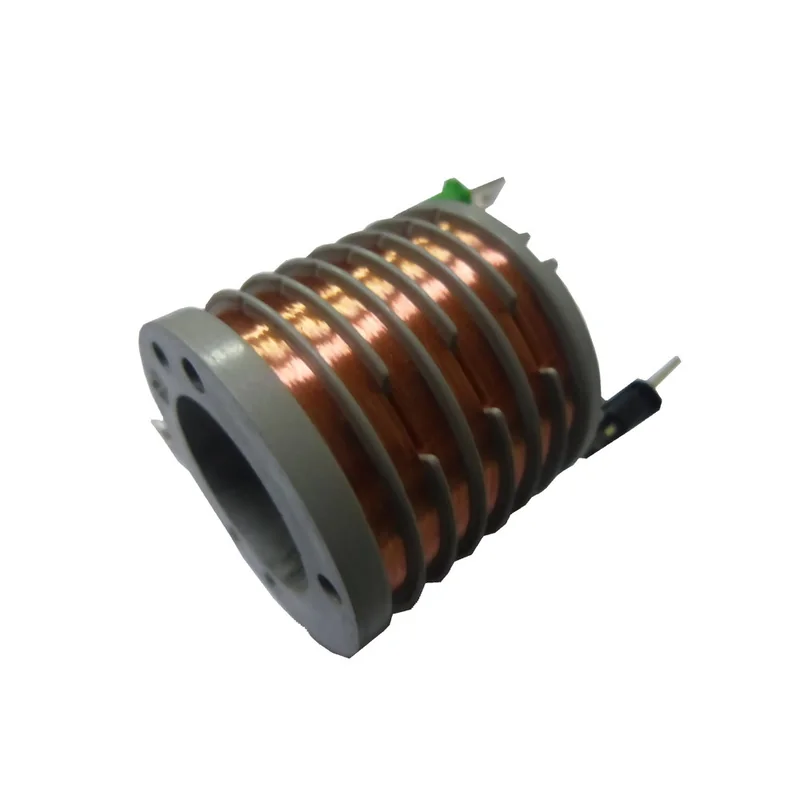

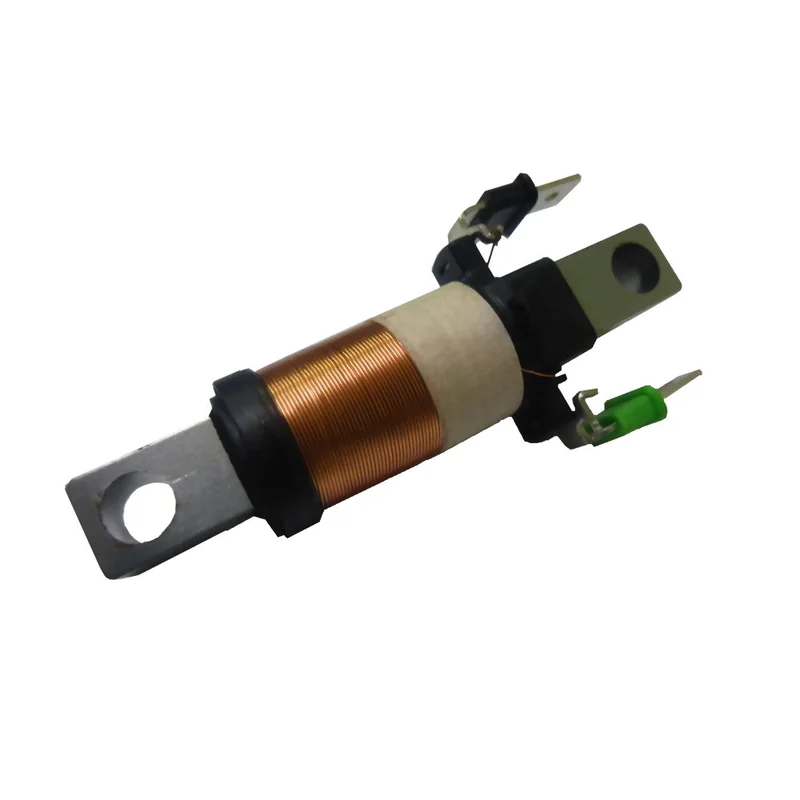

Automatic Bobbin Production Line - finished part produced on this machine
